F18 — Wire Harness

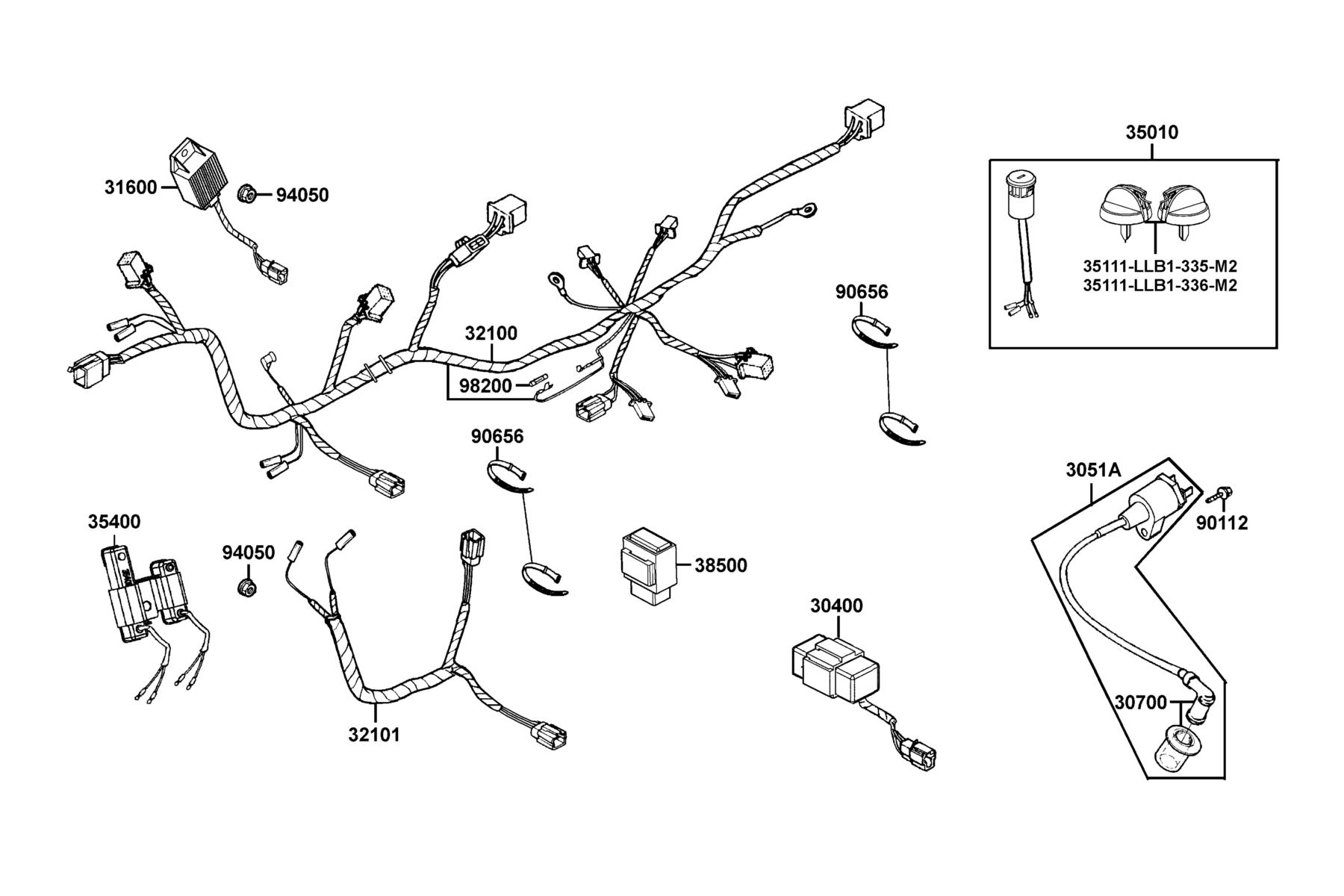

The Wire Harness diagram contains 15 genuine OEM parts for the KYMCO Mongoose 90S(2018). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 30400-PTA7-900 | UNIT ASSY CDI | 1 | $229.62 USD | View product → | |
| 2 | 3051A-LBD4-900 | COIL ASSY IGN | 1 | $96.78 USD | View product → | |
| 3 | 30700-GFY6-901 | CAP ASSY NOISE SUPPRESOR | 1 | $40.26 USD | View product → | |
| 4 | 31600-LBD4-900 | REG REC COMP | 1 | $81.93 USD | View product → | |
| 5 | 32100-ABC9-M00 | HARNESS WIRE | 1 | $254.67 USD | View product → | |
| 6 | 32101-LLB1-MX0 | SUB CORD | 1 | $8.49 USD | View product → | |
| 7 | 35010-LBA7-910 | KEY SET | 1 | $126.78 USD | View product → | |
| 8 | 35111-LLB1-335-M2 | KEY COMP(R CUT) | 1 | $36.51 USD | View product → | |
| 9 | 35111-LLB1-336-M2 | KEY COMP(L CUT) | 1 | $37.41 USD | View product → | |
| 10 | 35400-LLJ1-900 | RESISTOR COMP | 1 | $48.24 USD | View product → | |
| 11 | 38500-KKDK-900 | RELAY ASSY START | 1 | $119.40 USD | View product → | |
| 12 | 90112-KRDR-900 | BOLT FLANGE 5*22 | 1 | $7.53 USD | View product → | |
| 13 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 4 | $3.93 USD | View product → | |
| 14 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 15 | 98200-10700 | FUSE 7A | 1 | $6.39 USD | View product → |
