E01 — Crank Case

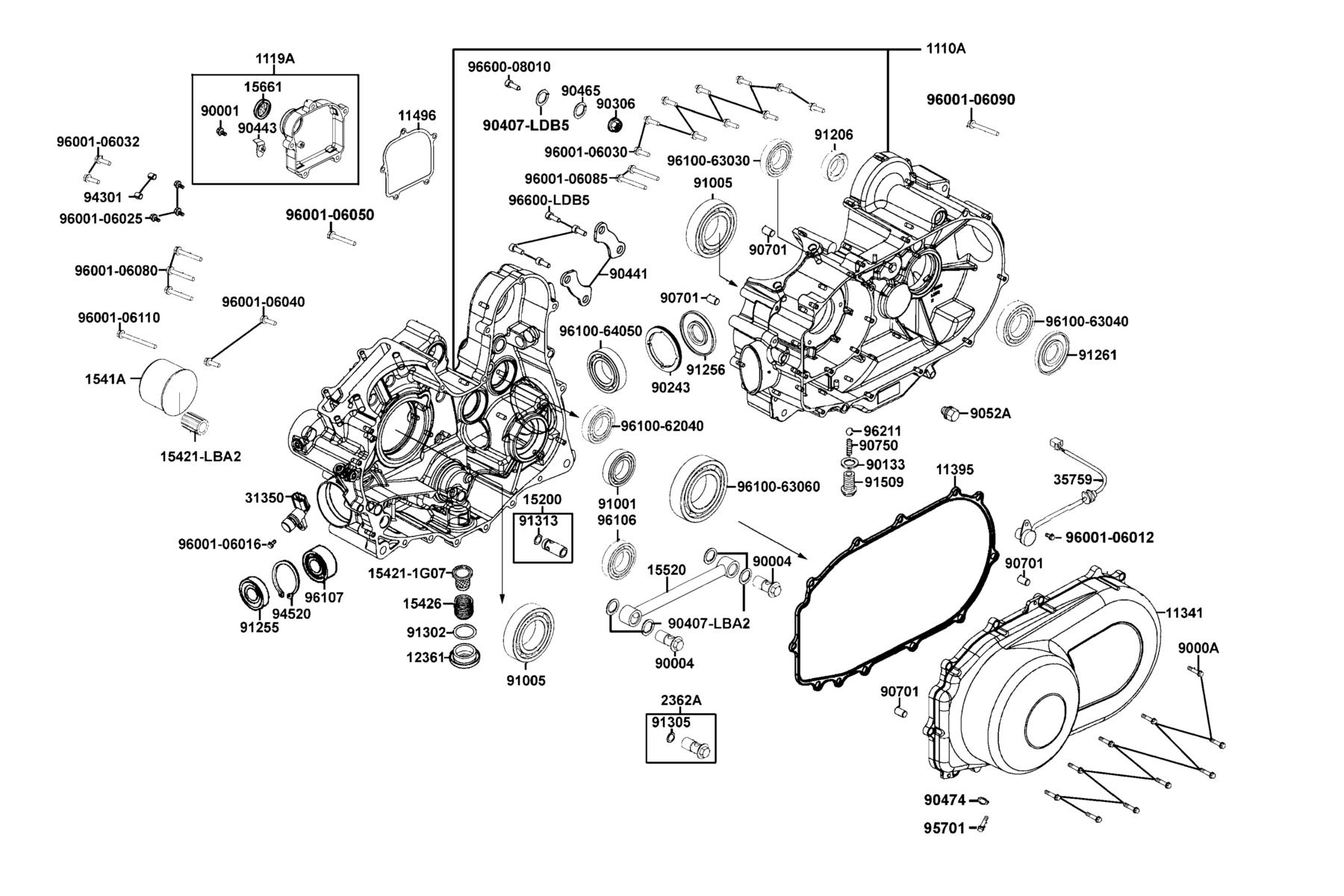

The Crank Case diagram contains 66 genuine OEM parts for the KYMCO MXU 550i EPS(2025MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1110A-LDB5-E00 | CRANK CASE R/L ASSY. | 1 | $812.58 USD | View product → | |
| 2 | 1119A-LDB5-E00 | CAP ASSY R CASE | 1 | $113.91 USD | View product → | |
| 3 | 11341-LDB5-E00-MLA | COVER LEFT | 1 | $285.18 USD | View product → | |
| 4 | 11395-LDB5-E00 | GASKET L COVER @A | 1 | $42.90 USD | View product → | |
| 5 | 11496-LDB5-E00 | GASKET R CASE CAP | 1 | $21.81 USD | View product → | |
| 6 | 12361-GFY6-901 | HOLE CAP TAPPET ADJUSTING | 1 | $11.70 USD | View product → | |
| 7 | 15200-KED9-900 | OIL RELIEF VALVE ASSY | 1 | $77.94 USD | View product → | |
| 8 | 1541A-LBA2-E00 | ELEMENT COMP OIL FILTER | 1 | $45.36 USD | View product → | |
| 9 | 15421-1G07-001 | SCREEN OIL FILTER | 1 | $15.06 USD | View product → | |
| 10 | 15421-LBA2-E00 | BOLT OIL FILTER | 1 | $37.41 USD | View product → | |
| 11 | 15426-GAE1-921 | SPG OIL FILTER SCREEN | 1 | $5.67 USD | View product → | |
| 12 | 15520-LDB5-E00 | PIPE COMP OIL | 1 | $76.83 USD | View product → | |
| 13 | 15661-LBA7-900 | FINDER OIL LEVEL | 1 | $32.73 USD | View product → | |
| 14 | 2362A-LDB5-E00 | BOLT ASSY PARK | 1 | $42.84 USD | View product → | |
| 15 | 31350-LDB5-E0A | SENSOR SPEED | 1 | $150.54 USD | View product → | |
| 16 | 35759-LDB5-E00 | SW ASSY GEAR CHANGE | 1 | $94.11 USD | View product → | |
| 17 | 90001-GFY6-901 | SOCKET BOLT 6*10 | 1 | $4.53 USD | View product → | |
| 18 | 90004-LBA2-E00 | BOLT B OIL PASS | 2 | $28.05 USD | View product → | |
| 19 | 9000A-KTDT-900 | BOLT ASSY SPECIAL 6*29.5 | 10 | $14.31 USD | View product → | |
| 20 | 90133-LDB5-E00 | WASHER BOLT SEAT | 1 | $4.53 USD | View product → | |
| 21 | 90243-LDB5-E00 | NUT LOCK 85 mm | 1 | $47.70 USD | View product → | |
| 22 | 90306-KLF0-004 | NUT FLANGE 12MM | 1 | $7.89 USD | View product → | |
| 23 | 90407-LBA2-E00 | SEALING WASHER OIL PIPE | 4 | $5.67 USD | View product → | |
| 24 | 90407-LDB5-E00 | WASHER THRUST 12*30*1 | 1 | $8.28 USD | View product → | |
| 25 | 90441-LDB5-E00 | PLATE BRG HOLD | 2 | $11.31 USD | View product → | |
| 26 | 90443-LDB5-E00 | PLATE FINDER HOLD | 1 | $8.19 USD | View product → | |
| 27 | 90465-MDC4-001 | WASHER 8MM | 1 | $3.78 USD | View product → | |
| 28 | 90474-3C33-001 | WASHER 8MM | 1 | $2.85 USD | View product → | |
| 29 | 9052A-LDB5-E00 | BOLT ASSY DRAIN PLUG | 1 | $16.38 USD | View product → | |
| 30 | 90701-9E65-001 | PIN DOWEL 10*16 | 4 | $3.78 USD | View product → | |
| 31 | 90750-LDB5-E00 | SPG STOPPER | 1 | $10.77 USD | View product → | |
| 32 | 91001-KHV8-004 | BRG BALL RADIAL 6305 | 1 | $53.70 USD | View product → | |
| 33 | 91005-LDB5-E00 | BRG.BALL RADIAL 6205 JR2 | 2 | $42.42 USD | View product → | |
| 34 | 91206-LDB5-E00 | OIL SEAL 14*24*7 | 1 | $7.53 USD | View product → | |
| 35 | 91255-LDB5-E00 | OIL SEAL 35*67*7 | 1 | $41.43 USD | View product → | |
| 36 | 91256-LDB5-E00 | OIL SEAL 35*90*7 | 1 | $65.70 USD | View product → | |
| 37 | 91261-LDB5-E00 | OIL SEAL 30X72X7 | 1 | $9.87 USD | View product → | |
| 38 | 91302-001-0210 | O-RING 30.8M/M | 1 | $6.72 USD | View product → | |
| 39 | 91305-GLE0-001 | O-RING 9*1.7 | 1 | $4.53 USD | View product → | |
| 40 | 91313-KED9-900 | O-RING 15.5*1.5 | 1 | $2.61 USD | View product → | |
| 41 | 91509-LDB5-E00 | BOLT STOPPER | 1 | $26.49 USD | View product → | |
| 42 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → | |
| 43 | 94520-65000 | CIR CLIP IN 65 | 1 | $17.07 USD | View product → | |
| 44 | 95701-08012-06 | BOLT FLANGE 8*12 | 1 | $6.24 USD | View product → | |
| 45 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 46 | 96001-06016-06 | BOLT FLANGE SH 6X16 | 1 | $12.12 USD | View product → | |
| 47 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → | |
| 48 | 96001-06030-06 | BOLT FLANGE SH 6X30 | 1 | $4.92 USD | View product → | |
| 49 | 96001-06032-06 | BOLT FLANGE SH 6*32 | 1 | $11.46 USD | View product → | |
| 50 | 96001-06040-06 | BOLT FLANGE SH 6*40 | 1 | $12.12 USD | View product → | |
| 51 | 96001-06050-06 | BOLT FLANGE SH 6*50 | 1 | $12.12 USD | View product → | |
| 52 | 96001-06080-06 | BOLT FLANGE SH 6X80 | 1 | $22.50 USD | View product → | |
| 53 | 96001-06085-06 | BOLT FLANGE 6*85 | 1 | $3.78 USD | View product → | |
| 54 | 96001-06090-06 | BOLT FLANGE SH 6*90 | 1 | $11.46 USD | View product → | |
| 55 | 96001-06110-06 | BOLT FLANGE SH 6*110 | 1 | $0.63 USD | View product → | |
| 56 | 96100-62040-00 | BEARING BALL RADIAL 6204 | 1 | $48.96 USD | View product → | |
| 57 | 96100-63030-00 | BEARING BALL RADIAL 6303 | 1 | $42.84 USD | View product → | |
| 58 | 96100-63040-00 | BRG BALL RADIAL 6304 | 1 | $53.61 USD | View product → | |
| 59 | 96100-63060-00 | BRG BALL RADIAL 6306 | 1 | $72.51 USD | View product → | |
| 60 | 96100-64050-00 | BRG BALL RADIAL 6405 | 1 | $176.43 USD | View product → | |
| 61 | 96106-LDB5-E00 | BEARING BALL RADIAL | 1 | $39.30 USD | View product → | |
| 62 | 96107-LDB5-E0B | BEARING BALL RADIAL 62/63 | 1 | $148.68 USD | View product → | |
| 63 | 96211-16000 | BALL STEEL #16 | 1 | $6.39 USD | View product → | |
| 64 | 96600-08010-16 | SOCKET BOLT 8X10 | 1 | $6.06 USD | View product → | |
| 65 | 96600-08020-16 | SOCKET BOLT 8X20 | 4 | $6.54 USD | View product → | |
| 66 | 96600-LDB5-E00 | SOCKET BOLT 8*20 | 4 | $7.53 USD | View product → |
