E05 — Drive Pulley

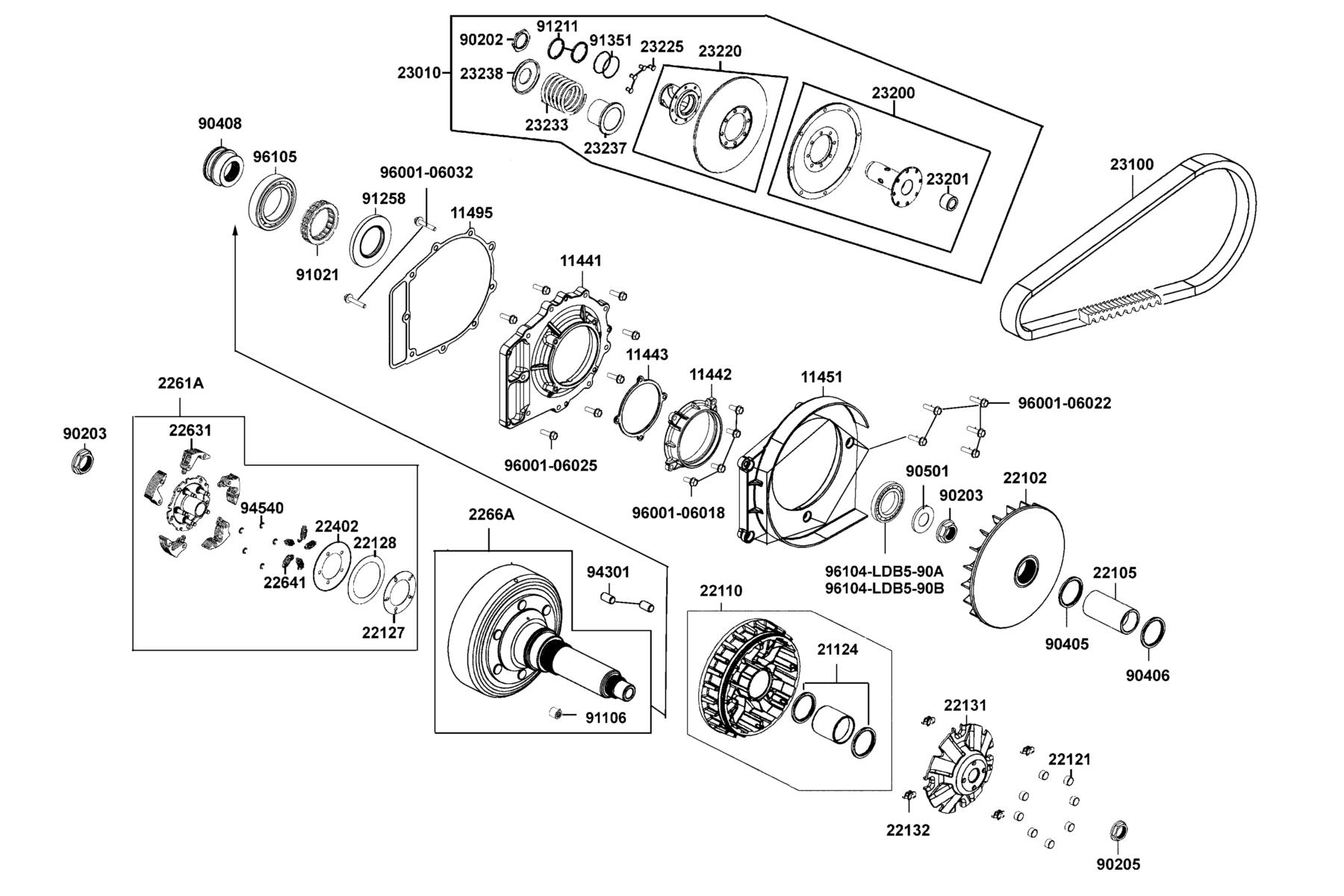

The Drive Pulley diagram contains 49 genuine OEM parts for the KYMCO MXU 550i EPS(2025MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11441-LDB5-910 | COVER CLUTCH | 1 | $123.69 USD | View product → | |
| 2 | 11442-LDB5-900 | COVER PRIMARY SHAFT | 1 | $52.26 USD | View product → | |
| 3 | 11443-LDB5-900 | GASKET PRIMARY SHAFT COVER | 1 | $14.31 USD | View product → | |
| 4 | 11451-LDB5-E00 | COVER CVT FAN | 1 | $42.84 USD | View product → | |
| 5 | 11495-LDB5-E00 | GASKET???CLUTCH COVER A | 1 | $24.96 USD | View product → | |
| 6 | 21124-LDB5-E00 | OIL SEAL 42X51X4 | 2 | $0.93 USD | View product → | |
| 7 | 22102-LDB5-E00 | FACE DRIVE | 1 | $141.24 USD | View product → | |
| 8 | 22105-LDB5-E00 | BOSS DRIVE FACE | 1 | $98.85 USD | View product → | |
| 9 | 22110-LDB5-E00 | FACE COMP MOVABLE DRIVE | 1 | $176.46 USD | View product → | |
| 10 | 22121-LFE9-305 | ROLLER SET WEIGHT (1SET:8PCS) | 1 | $86.37 USD | View product → | |
| 11 | 22127-LDB5-E00 | SEAT ADJUSTER SPG | 1 | $34.32 USD | View product → | |
| 12 | 22128-LDB5-E00 | PLATE ADJUSTER SPG | 1 | $34.32 USD | View product → | |
| 13 | 22131-LDB5-E00 | PLATE RAMP | 1 | $76.38 USD | View product → | |
| 14 | 22132-LDB5-305 | PIECE SLIDE SET (1SET:4PCS) | 4 | $60.69 USD | View product → | |
| 15 | 22402-LDB5-E00 | SPR ADJUSTER | 1 | $36.48 USD | View product → | |
| 16 | 2261A-LDB5-900 | PLATE ASSY PRIMARY DRIVE | 1 | $356.37 USD | View product → | |
| 17 | 22631-LDB5-E00 | PRIMARY CLUTCH WEIGHT | 5 | $96.69 USD | View product → | |
| 18 | 22641-LDB5-E00 | PRIMARY CLUTH SPG | 5 | $5.67 USD | View product → | |
| 19 | 2266A-LDB5-910 | PRIMARY DRIVE GEAR COMP | 1 | $397.38 USD | View product → | |
| 20 | 23010-LFE9-E00 | PULLEY ASSY DRIVEN | 1 | $460.60 USD | View product → | |
| 21 | 23100-ZVA6-M00 | BELT DRIVE | 1 | $310.62 USD | View product → | |
| 22 | 23200-LDB5-E00 | FACE ASSY DRIVEN | 1 | $262.56 USD | View product → | |
| 23 | 23201-LDB5-E00 | BUSH FACE DRIVEN | 1 | $44.85 USD | View product → | |
| 24 | 23220-LDB5-E00 | FACE COMP MOVABLE DRIVEN | 1 | $220.20 USD | View product → | |
| 25 | 23225-LDB5-E00 | PIN ROLLER GUIDE | 4 | $12.09 USD | View product → | |
| 26 | 23233-LFE9-E00 | SPG DRIVEN FACE | 1 | $82.44 USD | View product → | |
| 27 | 23237-LDB5-E00 | COLLAR SEAL | 1 | $52.26 USD | View product → | |
| 28 | 23238-LDB5-E00 | COLLAR SPG | 1 | $44.85 USD | View product → | |
| 29 | 90202-LDB5-E00 | NUT SPECIAL 36MM | 1 | $23.40 USD | View product → | |
| 30 | 90203-LDB5-E00 | NUT FLANGE 20MM | 2 | $47.70 USD | View product → | |
| 31 | 90205-LDB5-E00 | NUT FLANGE 16 MM | 1 | $47.70 USD | View product → | |
| 32 | 90405-LDB5-E00 | COLLAR CLUTCH | 1 | $42.84 USD | View product → | |
| 33 | 90406-LDB5-E00 | WASHER 25*33*4 | 1 | $13.17 USD | View product → | |
| 34 | 90408-LDB5-900 | COLLAR PRIMARY DRIVE SHAFT | 1 | $71.67 USD | View product → | |
| 35 | 90501-LDB5-E00 | WASHER THRUST 20MM | 1 | $16.14 USD | View product → | |
| 36 | 91021-LDB5-E0A | BEARING ONE WAY | 1 | $263.70 USD | View product → | |
| 37 | 91106-LDB5-E00 | BRG NEEDLE 14*22*20 | 1 | $119.82 USD | View product → | |
| 38 | 91211-LDB5-E00 | SEAL DRIVEN FACE 40.2*47*4 | 1 | $3.27 USD | View product → | |
| 39 | 91258-LDB5-900 | OIL SEAL 56.5*80*7 | 1 | $51.45 USD | View product → | |
| 40 | 91351-LDB5-E00 | O-RING PINION CAP | 2 | $16.14 USD | View product → | |
| 41 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → | |
| 42 | 94540-07017 | E RING 7MM | 5 | $4.92 USD | View product → | |
| 43 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 1 | $12.12 USD | View product → | |
| 44 | 96001-06022-06 | BOLT FLANGE SH 6X22 | 1 | $4.26 USD | View product → | |
| 45 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → | |
| 46 | 96001-06032-06 | BOLT FLANGE SH 6*32 | 1 | $11.46 USD | View product → | |
| 47 | 96104-LDB5-90A | BEARING BALL RADIAL 16008 | 1 | $92.82 USD | View product → | |
| 48 | 96104-LDB5-90B | BEARING BALL RADIAL 16008 | 1 | $137.19 USD | View product → | |
| 49 | 96105-LDB5-90C | BRG BALL RADIAL 68150 | 1 | $206.97 USD | View product → |
