F21 — Frame Body

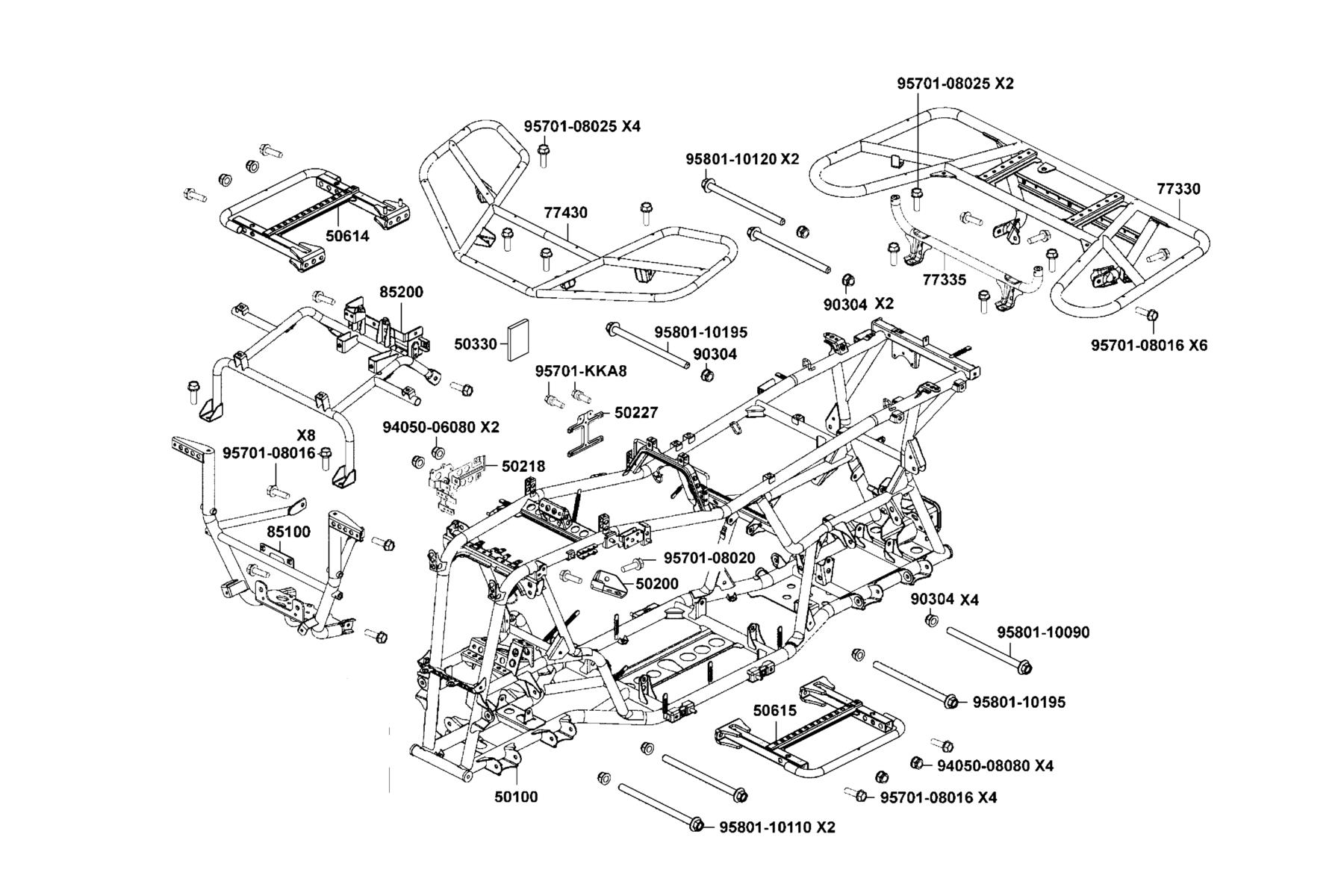

The Frame Body diagram contains 23 genuine OEM parts for the KYMCO MXU 550i EPS(2025MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 50100-AKG9-E00 | BODY COMP FRAME | 1 | $1099.60 USD | View product → | |
| 2 | 50200-AAJ5-E00 | STAY??? LOCK | 1 | $28.59 USD | View product → | |
| 3 | 50218-LKM5-E00 | STAY ELE SET | 1 | $75.09 USD | View product → | |
| 4 | 50227-LKA8-E00 | STAY. ECU | 1 | $35.85 USD | View product → | |
| 5 | 50330-LEA7-E00 | SPONGE BATTERY COVER | 1 | $1.95 USD | View product → | |
| 6 | 50614-ALC1-E00 | STAY R FLOOR PANEL | 1 | $176.76 USD | View product → | |
| 7 | 50615-ALC1-E00 | STAY L FLOOR PANEL | 1 | $176.76 USD | View product → | |
| 8 | 77330-AGA8-E00 | CARRIER RR RACK | 1 | $284.70 USD | View product → | |
| 9 | 77335-AGA8-E00 | SUPPORT PIPE RR RACK | 1 | $79.02 USD | View product → | |
| 10 | 77430-AGA8-E00 | CARRIER FR RACK | 1 | $196.56 USD | View product → | |
| 11 | 85100-AGA8-E00 | PIPE COMP FR. BUMPER | 1 | $267.06 USD | View product → | |
| 12 | 85200-AGA8-E00 | SUPPORT PIPE COMP RACK | 1 | $175.95 USD | View product → | |
| 13 | 90304-GLW0-90A | NUT U FLANGE 10MM | 7 | $9.39 USD | View product → | |
| 14 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 15 | 94050-08080 | NUT FLANGE 8MM | 4 | $4.92 USD | View product → | |
| 16 | 95701-08016-06 | BOLT FLANGE 8*16 | 20 | $4.53 USD | View product → | |
| 17 | 95701-08020-06 | BOLT FLANGE 8*20 | 2 | $3.78 USD | View product → | |
| 18 | 95701-08025-06 | BOLT FLANGE 8*25 | 4 | $5.31 USD | View product → | |
| 19 | 95701-KKA8-900 | BOLT TORQUE 6X10 | 2 | $17.82 USD | View product → | |
| 20 | 95801-10090-06 | BOLT FLANGE 10*90 | 1 | $9.63 USD | View product → | |
| 21 | 95801-10110-06 | BOLT FLANGE 10*110 | 2 | $16.38 USD | View product → | |
| 22 | 95801-10120-06 | BOLT FLANGE 10*120 (G) | 2 | $15.63 USD | View product → | |
| 23 | 95801-10195-06 | BOLT FLANGE 10*195 | 2 | $21.81 USD | View product → |
