E04 — Right Crankcase Cover

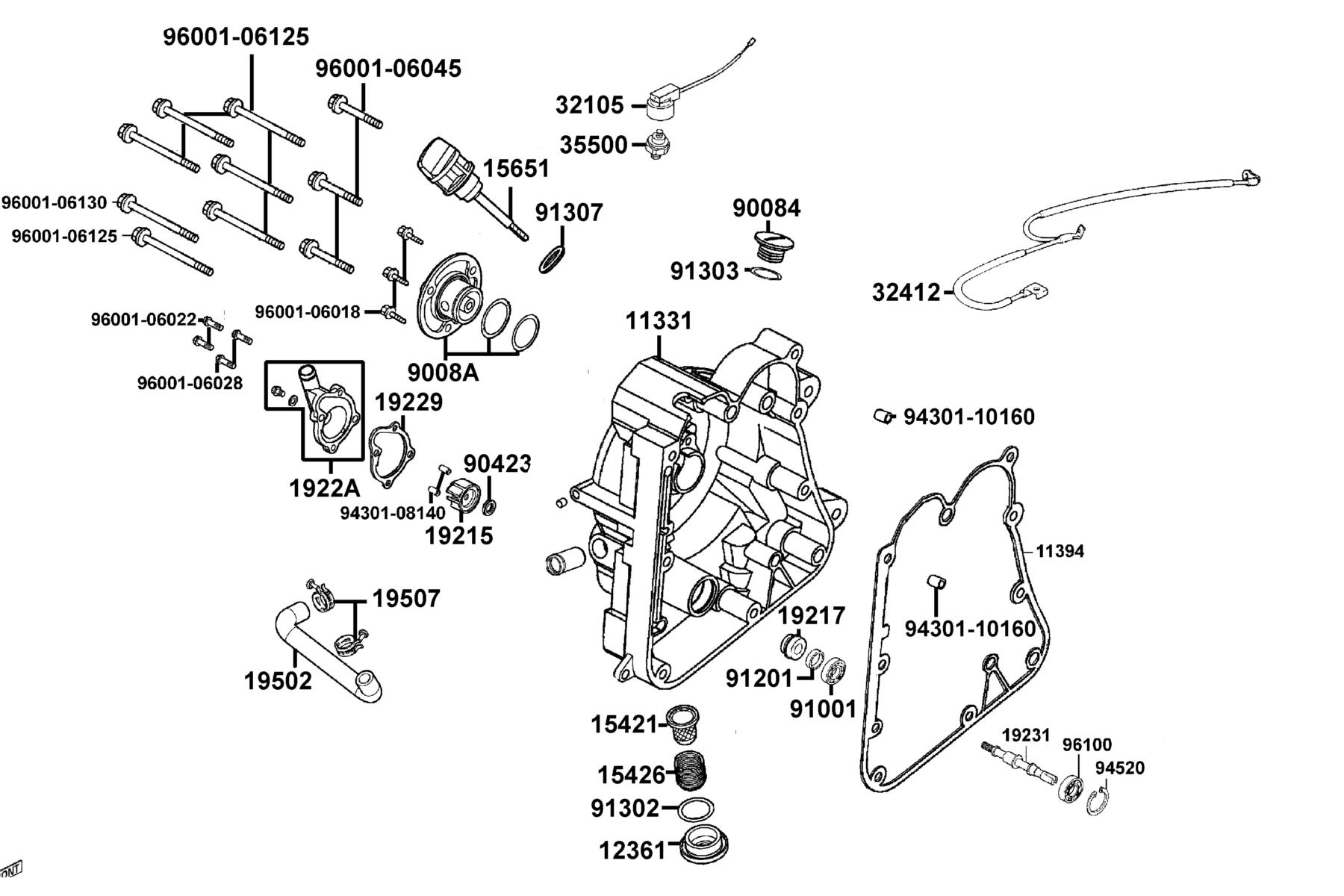

The Right Crankcase Cover diagram contains 33 genuine OEM parts for the KYMCO X-TOWN300i ABS (2019). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11331-LLJ3-C00-NEA | COVER R CRANK CASE | 1 | $312.51 USD | View product → | |
| 2 | 11394-KHE7-C00 | GASKET, R COVER @A | 1 | $31.95 USD | View product → | |
| 3 | 12361-LHD1-C00 | HOLE CAP??? TAPPET ADJUSTING | 1 | $14.07 USD | View product → | |
| 4 | 15421-1G07-C00 | SCREEN OIL FILTER | 1 | $15.06 USD | View product → | |
| 5 | 15426-GAE1-C00 | SPG OIL FILTER SCREEN | 1 | $2.61 USD | View product → | |
| 6 | 15651-KEBE-C00 | GUAGE OIL LEVEL | 1 | $4.92 USD | View product → | |
| 7 | 19215-KHE7-C00 | IMPELLER WATER PUMP | 1 | $20.67 USD | View product → | |
| 8 | 19217-ZPA3-E00 | SEAL MECHANICAL | 1 | $127.38 USD | View product → | |
| 9 | 19229-LBA7-C00 | GASKET WATER OUMP | 1 | $4.59 USD | View product → | |
| 10 | 1922A-KHE7-C00-NEA | COVER ASSY WATER PUMP | 1 | $60.45 USD | View product → | |
| 11 | 19231-KKJ9-C00 | SHAFT WATER PUMP | 1 | $41.28 USD | View product → | |
| 12 | 19502-KHE7-C00 | HOSE B WATER | 1 | $49.89 USD | View product → | |
| 13 | 19507-ABD6-C00 | "CLAMP, D28" | 2 | $22.08 USD | View product → | |
| 14 | 32105-LLJ3-C00 | SUB HARNESS | 1 | $35.97 USD | View product → | |
| 15 | 32412-ABD2-C00 | CABLE EARTH | 1 | $109.11 USD | View product → | |
| 16 | 35500-KED9-900 | SW ASSY OIL PRESSURE | 1 | $102.96 USD | View product → | |
| 17 | 90084-KKF9-901 | CAP ACG | 1 | $19.26 USD | View product → | |
| 18 | 90423-KKJ9-C00 | WASHER 7.2*13*1.2 | 1 | $4.59 USD | View product → | |
| 19 | 91001-KKJ9-C00 | BRG BALL RADIAL 6901 | 1 | $15.51 USD | View product → | |
| 20 | 91201-ABD6-C00 | OIL SEAL 12*20*4 | 1 | $23.88 USD | View product → | |
| 21 | 91302-0A01-C00 | O-RING 30.8MM | 1 | $4.92 USD | View product → | |
| 22 | 91303-3G77-C00 | O-RING 13.8*2.5 | 1 | $4.65 USD | View product → | |
| 23 | 91307-0E35-W10 | O-RING 18*3 | 1 | $4.92 USD | View product → | |
| 24 | 94301-08140 | DOWEL PIN 8*14 | 2 | $3.00 USD | View product → | |
| 25 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → | |
| 26 | 94520-26000 | CIR CLIP IN 26 | 1 | $3.78 USD | View product → | |
| 27 | 96001-06018-02 | BOLT FLANGE SH 6*18 | 3 | $2.61 USD | View product → | |
| 28 | 96001-06022-07 | BOLT FLANGE SH 6*22 (K) | 1 | $1.95 USD | View product → | |
| 29 | 96001-06028-07 | BOLT FLANGE SH6*28 | 1 | $0.99 USD | View product → | |
| 30 | 96001-06045-06 | BOLT FLANGE SH 6*45 | 3 | $7.23 USD | View product → | |
| 31 | 96001-06125-06 | BOLT FLANGE SH 6*125 | 1 | $4.92 USD | View product → | |
| 32 | 96001-06130-06 | BOLT FLANGE SH 6*130 | 1 | $6.24 USD | View product → | |
| 33 | 96100-60000-00 | BEARING BALL RADIAL 6000 | 1 | $47.91 USD | View product → |
