E07 — Starting Motor ● Oil Pump

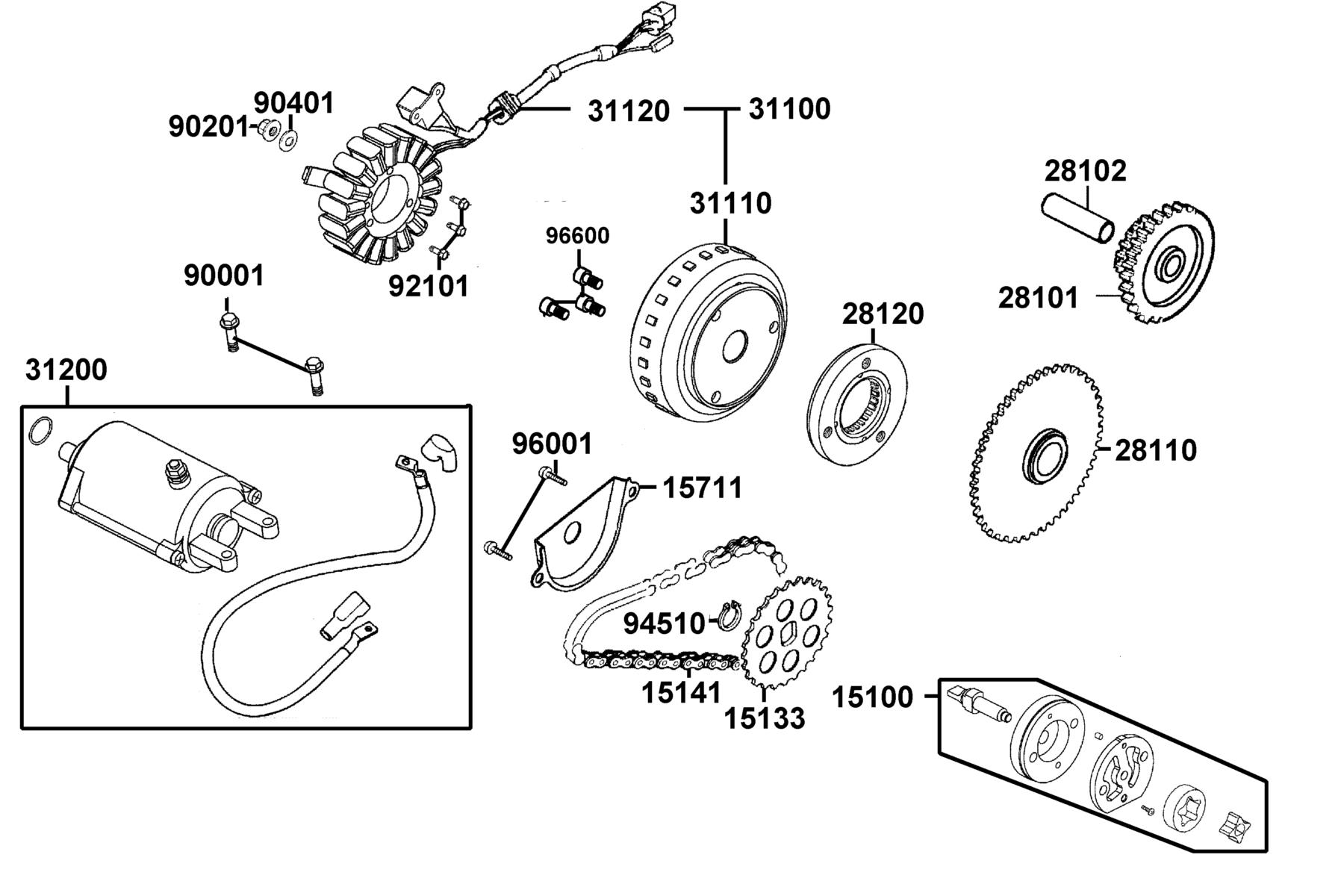

The Starting Motor ● Oil Pump diagram contains 19 genuine OEM parts for the KYMCO X-TOWN300i ABS (2019). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 15100-KKC3-C00 | PUMP ASSY OIL | 1 | $38.94 USD | View product → | |
| 2 | 15133-KAM1-C00 | SPROCKET OIL PUMP DRIVE | 1 | $27.27 USD | View product → | |
| 3 | 15141-KKJ9-C00 | CHAIN OIL PUMP | 1 | $32.28 USD | View product → | |
| 4 | 15711-KHE7-C00 | SEPARATER OIL | 1 | $12.45 USD | View product → | |
| 5 | 28101-KHE7-C00 | GEAR STARTER REDUCTION | 1 | $91.08 USD | View product → | |
| 6 | 28102-KHE7-C00 | SHAFT STARTER REDUCTION | 1 | $14.04 USD | View product → | |
| 7 | 28110-LDB2-C00 | GEAR COMP STARTING CLUTCH | 1 | $96.96 USD | View product → | |
| 8 | 28120-LDB2-C00 | ONE WAY CLUTCH | 1 | $93.54 USD | View product → | |
| 9 | 31100-ABD2-C00 | AC GEN ASSY | 1 | $316.02 USD | View product → | |
| 10 | 31110-ABD2-C00 | FLYWHEEL COMP. | 1 | $168.54 USD | View product → | |
| 11 | 31120-ABD2-C00 | STATOR COMP. | 1 | $189.63 USD | View product → | |
| 12 | 31200-ABD2-C00 | MOTOR ASSY,STARTER | 1 | $220.83 USD | View product → | |
| 13 | 90001-GBHB-C05 | BOLT FLANGE SHF 6*22 | 2 | $4.59 USD | View product → | |
| 14 | 90201-KHR8-C01 | NUT FLANGE 14MM | 1 | $13.62 USD | View product → | |
| 15 | 90401-KKJ9-C00 | WASHER THRUST 14*28*2 | 1 | $11.19 USD | View product → | |
| 16 | 92101-05032-0HG | BOLT HEX 5*32 (C) | 3 | $1.32 USD | View product → | |
| 17 | 94510-10000 | CIR CLIP EX 10MM | 1 | $4.92 USD | View product → | |
| 18 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 2 | $0.99 USD | View product → | |
| 19 | 96600-08018-10 | SOCKET BOLT 8*18 (B) | 3 | $4.26 USD | View product → |
