F22 — Emblem ● Stripe

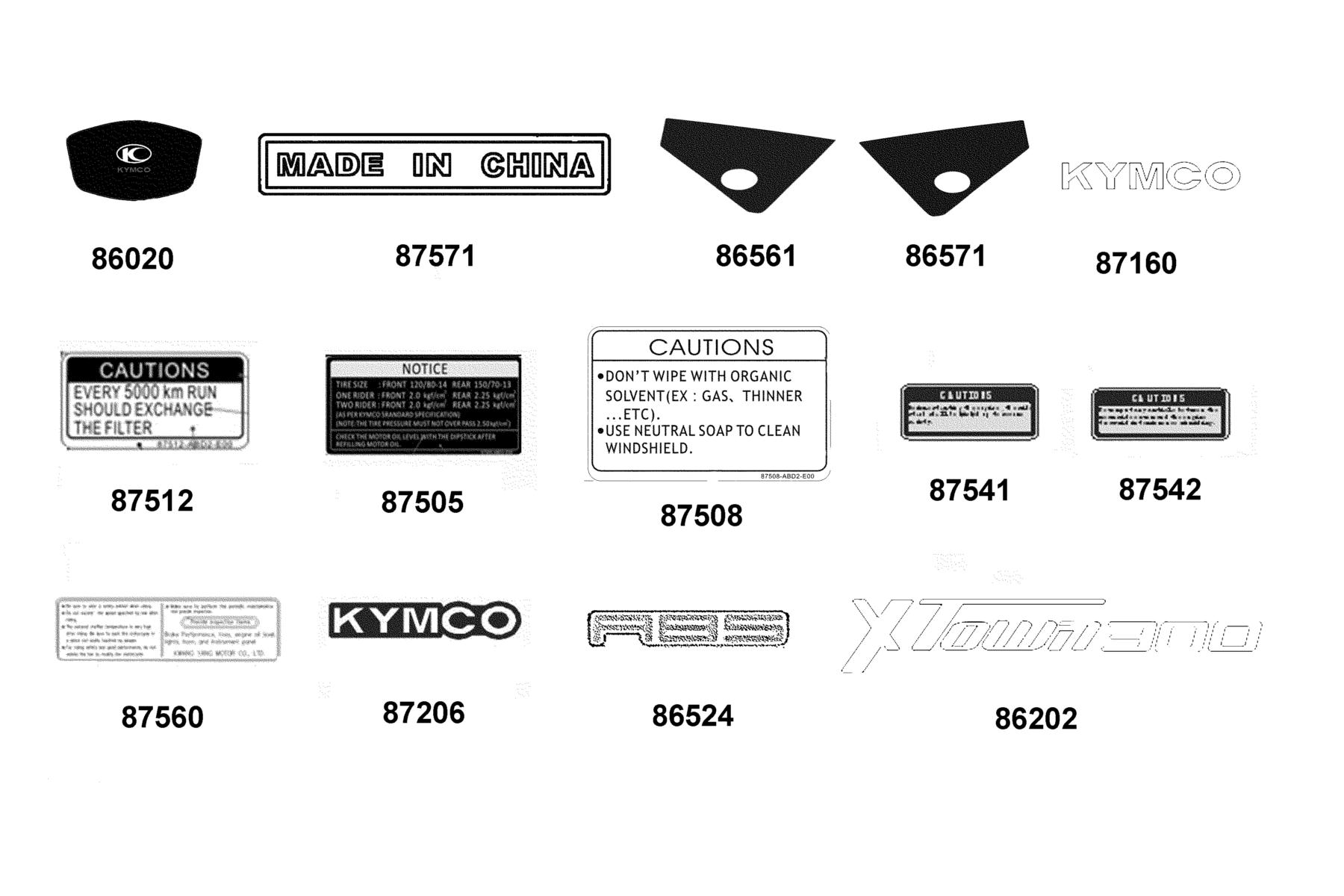

The Emblem ● Stripe diagram contains 14 genuine OEM parts for the KYMCO X-TOWN300i ABS (2019). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86020-ACJ1-E30-T01 | EMB DMA STRIDER | 1 | $15.84 USD | View product → | |
| 2 | 86202-ABD2-M30-T01 | EMB BODY COVER | 2 | $6.84 USD | View product → | |
| 3 | 86524-ABD2-C00-T01 | EMB R FR FENDER | 2 | $139.92 USD | View product → | |
| 4 | 86561-ACJ1-E30-T01 | STRIPE R FR FENDER TYPE A | 1 | $16.77 USD | View product → | |
| 5 | 86571-ACJ1-E30-T01 | STRIPE L FR FENDER TYPE A | 1 | $16.77 USD | View product → | |
| 6 | 87160-LKL5-E00-T03 | STRIPE MARK KYMCO | 2 | $6.54 USD | View product → | |
| 7 | 87206-ABD2-C00-T01 | MARK KYMCO | 1 | $7.23 USD | View product → | |
| 8 | 87505-ABD2-E00-T01 | LABEL TIRE | 1 | $9.51 USD | View product → | |
| 9 | 87508-ABD2-E00-T02 | CAUTION FEDERAL LAW | 1 | $9.51 USD | View product → | |
| 10 | 87512-ABD2-E00-T01 | CAUTION LIST | 1 | $4.59 USD | View product → | |
| 11 | 87541-GAR1-C01-T01 | CAUTION SIDE STAND | 1 | $5.34 USD | View product → | |
| 12 | 87542-GAR1-C01-T01 | MARK MAINT CAUTION R | 1 | $2.97 USD | View product → | |
| 13 | 87560-GFY6-E11-T01 | MARK DRIVE CAUTION | 1 | $6.87 USD | View product → | |
| 14 | 87571-LDC8-B90-T01 | LABEL MIC | 1 | $7.23 USD | View product → |
