F05 — Front Cover ● Front Fender

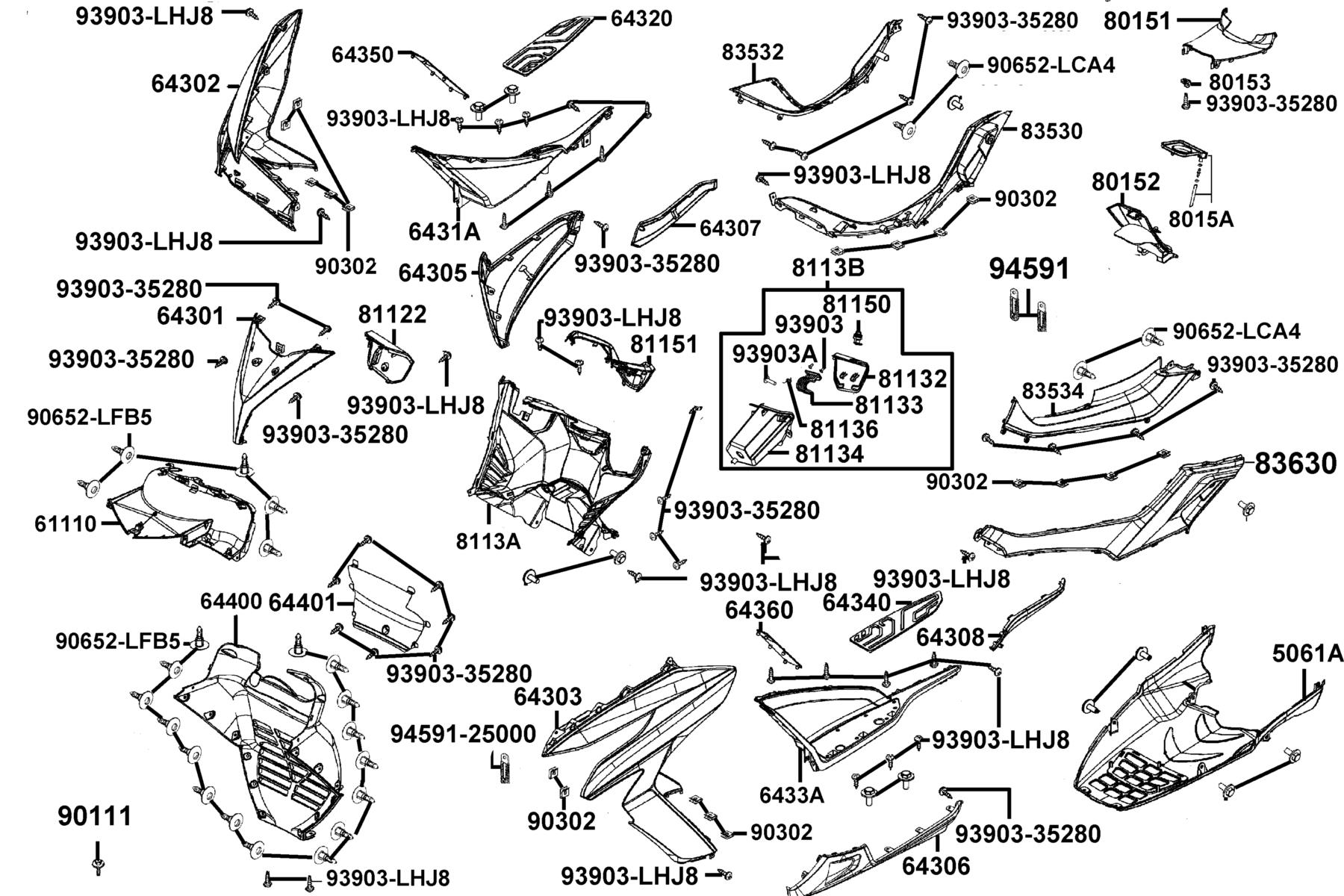

The Front Cover ● Front Fender diagram contains 44 genuine OEM parts for the KYMCO X-Town 300i ABS(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 5061A-ABD2-C00-N1R | "ASSY., UNDER COVER" | 1 | $82.08 USD | View product → | |
| 2 | 61110-ABD2-C00-N1R | "INNER FENDER, FRONT" | 1 | $34.08 USD | View product → | |
| 3 | 64301-ABD2-C00-60P | COVER FR | 1 | $151.41 USD | View product → | |
| 4 | 64302-ABD2-C00-J2P | MOLDING. R SIDE | 1 | $238.29 USD | View product → | |
| 5 | 64303-ABD2-C00-J2P | MOLDING. L SIDE | 1 | $500.67 USD | View product → | |
| 6 | 64305-ABD2-C00-J2P | SKIRT R SIDE | 1 | $100.02 USD | View product → | |
| 7 | 64306-ABD2-C00-J2P | SKIRT L SIDE | 1 | $100.02 USD | View product → | |
| 8 | 64307-ABD2-C00-J2P | COVER R SIDE MOLD | 1 | $146.82 USD | View product → | |
| 9 | 64308-ABD2-C00-J2P | COVER L SIDE MOLD | 1 | $140.10 USD | View product → | |
| 10 | 6431A-ABD2-C00-N1R | "ASSY., PANEL R FLOOR" | 1 | $35.16 USD | View product → | |
| 11 | 64320-ABD2-C00-N1R | "MAT ,R FLOOR" | 1 | $16.98 USD | View product → | |
| 12 | 6433A-ABD2-C00-N1R | "ASSY., PANEL L FLOOR" | 1 | $35.16 USD | View product → | |
| 13 | 64340-ABD2-C00-N1R | "MAT ,L FLOOR" | 1 | $16.98 USD | View product → | |
| 14 | 64350-ABD2-C00-N1R | "MAT ,R LEG SHIELD" | 1 | $9.51 USD | View product → | |
| 15 | 64360-ABD2-C00-N1R | "MAT ,L LEG SHIELD" | 1 | $9.51 USD | View product → | |
| 16 | 64400-ABD2-C00-N1R | "COWL, UNDER" | 1 | $44.79 USD | View product → | |
| 17 | 64401-ABD2-C00 | MESH,UNDER COWL | 1 | $17.82 USD | View product → | |
| 18 | 80151-ABD2-C00-N1R | "COVER, CENTER" | 1 | $14.01 USD | View product → | |
| 19 | 80152-ABD2-C00-N1R | "LID, FUEL CAP MAINT." | 1 | $17.97 USD | View product → | |
| 20 | 80153-ABD2-C00 | "STAY , FUEL COVER" | 1 | $3.42 USD | View product → | |
| 21 | 8015A-ABD2-C00 | "TRAY ASSY.,FUEL CAP" | 1 | $19.65 USD | View product → | |
| 22 | 81122-ABD2-C00-N1R | "LID, RESERVE TANK" | 1 | $10.32 USD | View product → | |
| 23 | 81132-ABD2-C00 | LID L FR INNER BOX | 1 | $27.69 USD | View product → | |
| 24 | 81133-ABD2-C00 | HINGE LID L FR INNR BOX | 1 | $29.61 USD | View product → | |
| 25 | 81134-ABD2-C00 | BOX L FR INNER BOX | 1 | $54.66 USD | View product → | |
| 26 | 81136-LEA7-E00 | SPRING FR INNER BOX L | 1 | $33.72 USD | View product → | |
| 27 | 8113A-ABD2-C00-N1R | ASSY., LEG SHIELD | 1 | $52.05 USD | View product → | |
| 28 | 8113B-ABD2-C00-N1R | "BOX ASSY.,L FRONT" | 1 | $64.83 USD | View product → | |
| 29 | 81150-ZZA6-C00 | LOCKLESS ASSY | 1 | $28.71 USD | View product → | |
| 30 | 81151-ABD2-C00-60P | COVER A KEY | 1 | $70.80 USD | View product → | |
| 31 | 83530-ABD2-C00-60P | BOARD A R SIDE | 1 | $367.74 USD | View product → | |
| 32 | 83532-ABD2-C00-N1R | "BOARD B, R SIDE" | 1 | $23.58 USD | View product → | |
| 33 | 83534-ABD2-C00-N1R | "BOARD B, L SIDE" | 1 | $23.58 USD | View product → | |
| 34 | 83630-ABD2-C00-60P | "BOARD A ,L SIDE" | 1 | $154.14 USD | View product → | |
| 35 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 14 | $4.65 USD | View product → | |
| 36 | 90302-LKB9-C00 | NUT SPRING 5MM | 48 | $7.02 USD | View product → | |
| 37 | 90652-LCA4-C10 | CLIP MUDGUARD | 4 | $5.67 USD | View product → | |
| 38 | 90652-LFB5-C00 | CLIP MUDGUARD | 18 | $2.31 USD | View product → | |
| 39 | 93903-25260 | SCREW TAPPING 5*12 | 1 | $1.86 USD | View product → | |
| 40 | 93903-34760 | SCREW TAPPING 4*30 | 1 | $2.25 USD | View product → | |
| 41 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 1 | $0.99 USD | View product → | |
| 42 | 93903-LHJ8-C01 | "SCREW,TAPPING 5X14" | 1 | $4.59 USD | View product → | |
| 43 | 94591-25000 | CLIP BIND | 1 | $3.27 USD | View product → | |
| 44 | 94591-LGR5-E10 | CLIP 1*100 | 1 | $4.92 USD | View product → |
