F19 — Wire Harness

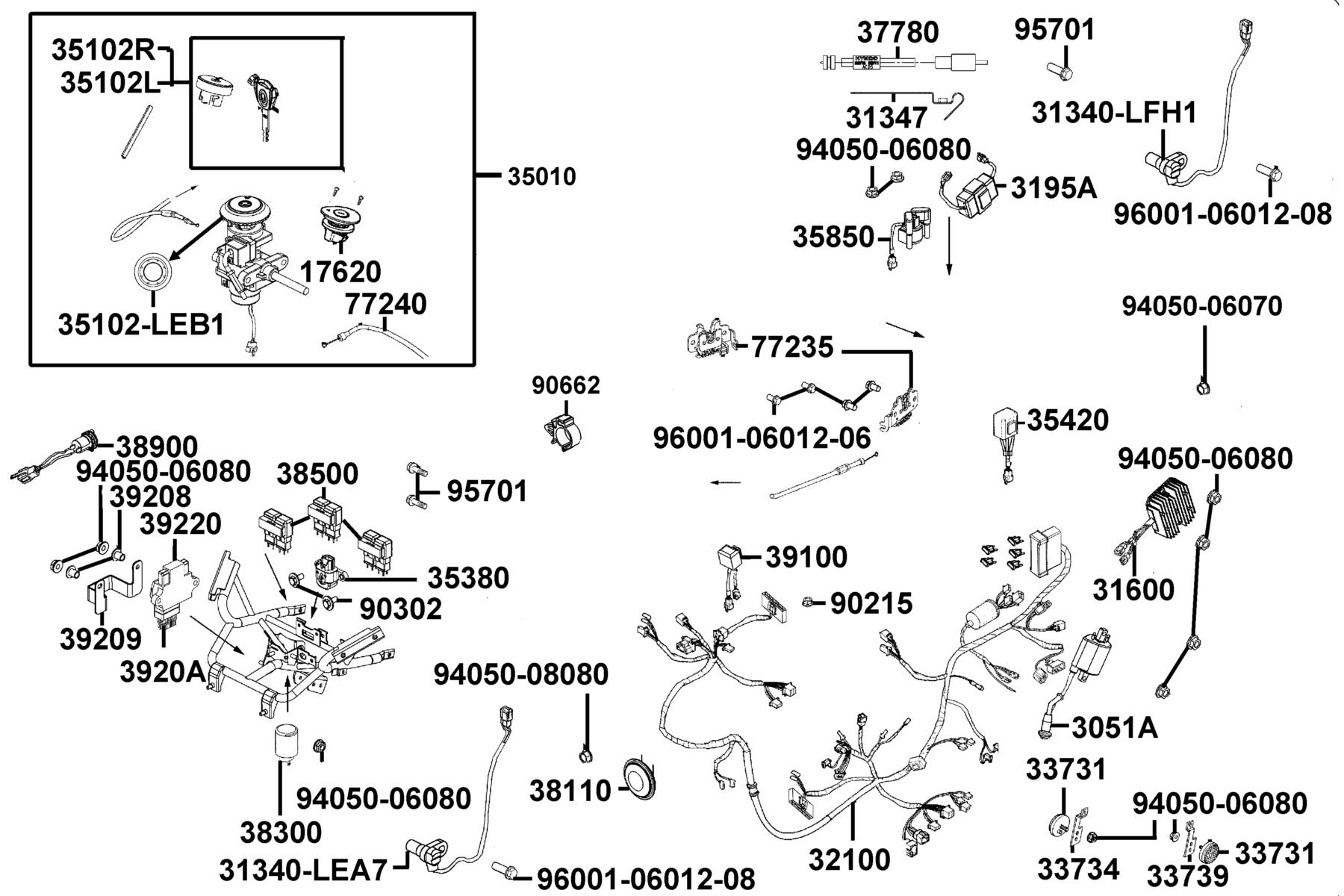

The Wire Harness diagram contains 38 genuine OEM parts for the KYMCO X-Town 300i ABS(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17620-ABD2-C00 | CAP COMP FUEL FILLER | 1 | $75.12 USD | View product → | |
| 2 | 3051A-LKF5-C00 | COIL ASSY IGN | 1 | $133.95 USD | View product → | |
| 3 | 31340-LEA7-E00 | SENSOR FR WHEEL SPEED | 1 | $139.17 USD | View product → | |
| 4 | 31340-LFH1-E00 | SENSOR RR WHEEL SPEED | 1 | $168.96 USD | View product → | |
| 5 | 31347-ABD2-C00 | CLAMPER. SPEED SENSOR | 1 | $15.42 USD | View product → | |
| 6 | 31600-ABD2-C00 | REG REC COMP | 1 | $280.95 USD | View product → | |
| 7 | 3195A-ABD2-M30 | HAZARD CONTROL ASSY | 1 | $103.98 USD | View product → | |
| 8 | 32100-ABD2-M30 | HARNESS WIRE | 1 | $549.52 USD | View product → | |
| 9 | 33731-GFY6-EZ0 | REFLEX REFLECTOR SIDE | 1 | $16.59 USD | View product → | |
| 10 | 33734-ABD2-C00 | STAY RH.REFELX REFLECTOR | 1 | $14.07 USD | View product → | |
| 11 | 33739-ABD2-C00 | STAY LH. REFELX REFLECTOR | 1 | $14.07 USD | View product → | |
| 12 | 35010-ABD2-E00 | KEY SET | 1 | $475.56 USD | View product → | |
| 13 | 35102-ABD2-C00-L | SHUTTER MAGNETIC LOCK | 1 | $77.10 USD | View product → | |
| 14 | 35102-ABD2-C00-R | SHUTTER MAGNETIC LOCK | 1 | $77.10 USD | View product → | |
| 15 | 35102-LEB1-90A | COLLAR MAIN SW | 1 | $32.46 USD | View product → | |
| 16 | 35380-ABE1-C00 | SENSOR ANGLE | 1 | $99.39 USD | View product → | |
| 17 | 35420-LFH1-E00 | CONTROLER OIL LAMP | 1 | $110.34 USD | View product → | |
| 18 | 35850-LCA3-B50 | SW ASSY START MAG | 1 | $46.86 USD | View product → | |
| 19 | 37780-ACD5-C00 | SENSOR ASSY. ROOM TEMP | 1 | $43.17 USD | View product → | |
| 20 | 38300-ALH1-E60 | RELAY ASSY WINKERF | 1 | $58.98 USD | View product → | |
| 21 | 38500-AAD2-C00 | RELAY ASSY LIGHT | 3 | $125.46 USD | View product → | |
| 22 | 38900-ACD5-E00 | CONTROLLER USB CHARGER | 1 | $112.29 USD | View product → | |
| 23 | 39100-ABD6-C00 | EMI FILTER FAN | 1 | $36.87 USD | View product → | |
| 24 | 39208-ABD2-C00 | COLLAR ECU | 2 | $4.50 USD | View product → | |
| 25 | 39209-ABD2-C00 | STAY ECU | 1 | $22.47 USD | View product → | |
| 26 | 3920A-ABD2-E00 | ASSY ECU | 1 | $337.92 USD | View product → | |
| 27 | 39220-LKG2-C00 | CUSHION ECU | 1 | $25.89 USD | View product → | |
| 28 | 77235-ZZA6-C00 | SEAT CATCH COMP | 1 | $28.08 USD | View product → | |
| 29 | 77240-ABD2-C00 | CABLE ASSY.. SEAT LOCK | 1 | $98.97 USD | View product → | |
| 30 | 90215-KKC4-C00 | NUT CAP 6MM | 1 | $9.18 USD | View product → | |
| 31 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 2 | $4.65 USD | View product → | |
| 32 | 90662-ABD2-C00 | HARNESS CLAMP D18-D11 | 1 | — | Part details → | |
| 33 | 94050-06070-G | NUT FLANGE 6MM | 8 | $0.99 USD | View product → | |
| 34 | 94050-06080-G | NUT FLANGE 6MM | 9 | $0.99 USD | View product → | |
| 35 | 94050-08080-G | NUT FLANGE 8MM | 1 | $1.95 USD | View product → | |
| 36 | 95701-KEC8-E01 | BOLT FLANGE 8*19 | 2 | $4.92 USD | View product → | |
| 37 | 96001-06012-07G | BOLT FLANGE 6*12(G) | 2 | $0.99 USD | View product → | |
| 38 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 1 | $0.99 USD | View product → |
