F08 — Rear Wheel

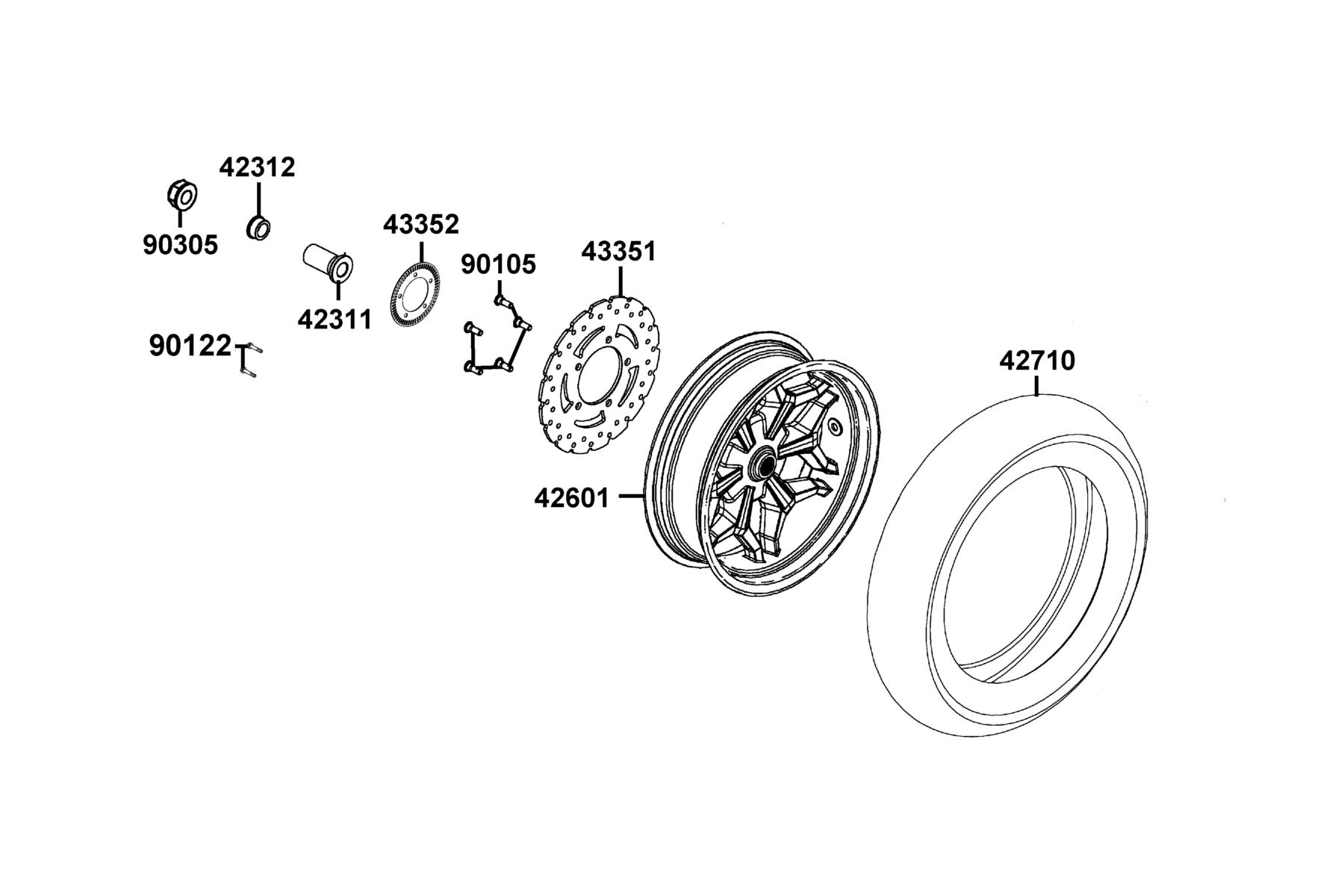

The Rear Wheel diagram contains 9 genuine OEM parts for the KYMCO X-Town 300i ABS(2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42311-ABD2-C00 | COLLAR RR PANDL SIDE | 1 | $40.65 USD | View product → | |
| 2 | 42312-LEA7-C00 | CLOLLAR RR AXLE SIDE | 1 | $8.49 USD | View product → | |
| 3 | 42601-ABD2-E30-YYA | WHEEL COMP RR CAST | 1 | $338.58 USD | View product → | |
| 4 | 42710-ABD2-C00 | TIRE ASSY, RR | 1 | $354.18 USD | View product → | |
| 5 | 43351-ABD2-C00 | "DISK. RR BRAKE" | 1 | $173.58 USD | View product → | |
| 6 | 43352-LEA7-E01 | READ PLATE RR | 1 | $32.22 USD | View product → | |
| 7 | 90105-LEA7-C01 | BOLT FR DISK 8*30 | 5 | — | Part details → | |
| 8 | 90122-LEA7-C01 | BOLT FLANGE 10X42(KG) | 2 | $17.61 USD | View product → | |
| 9 | 90305-KKAK-C00 | NUT U FLANGE 16MM (CR) | 1 | $21.60 USD | View product → |
