E01 — Crank Case

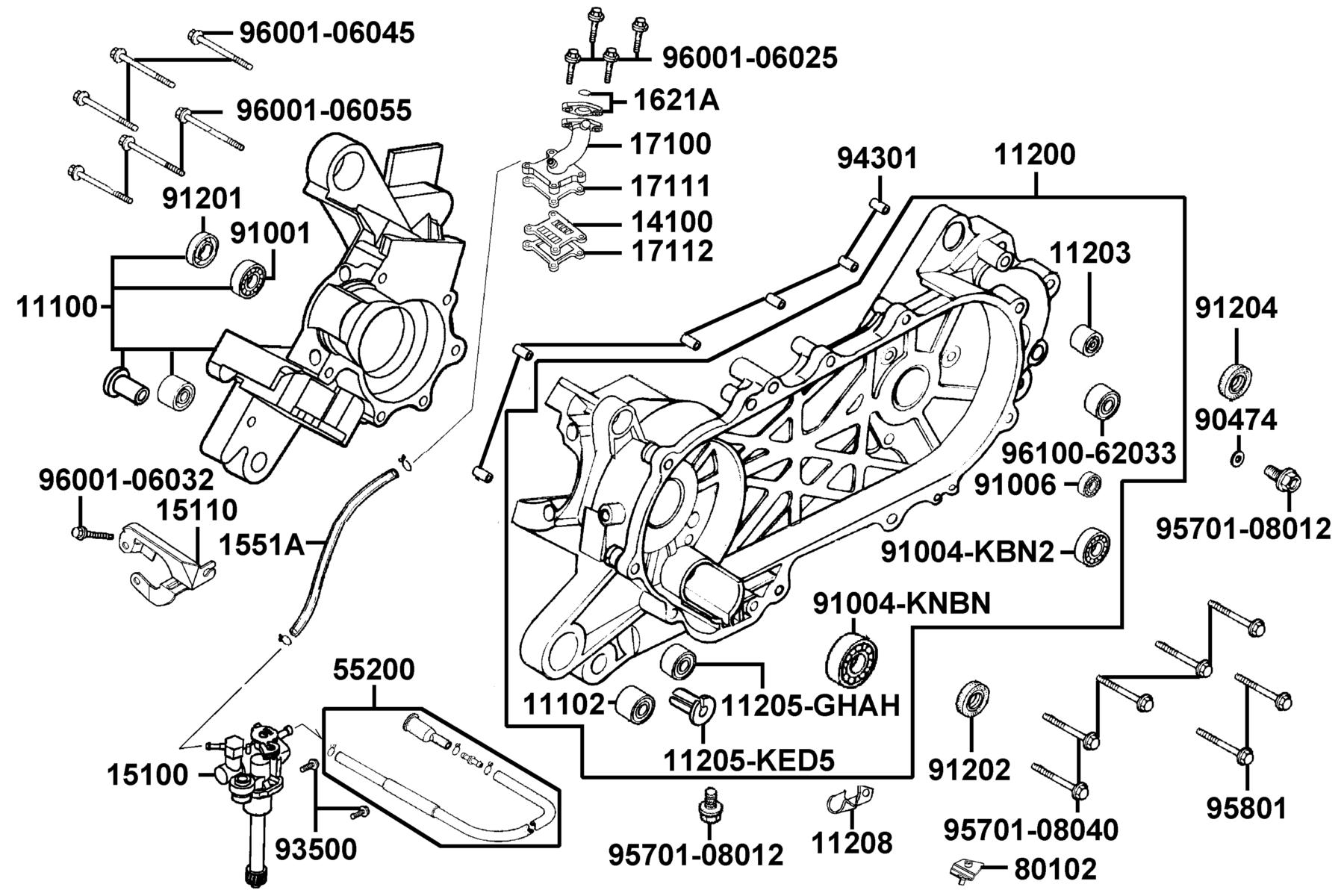

The Crank Case diagram contains 36 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11100-KEB7-C00 | CRANK CASE COMP RIGHT | 1 | $262.29 USD | View product → | |
| 2 | 11102-1G87-C00 | RUB BUSH ENG HANGER | 1 | $21.30 USD | View product → | |
| 3 | 11200-KEB7-C00 | CRANK CASE COMP. L. | 1 | — | Part details → | |
| 4 | 11203-GGC7-W10 | BUSH | 1 | $14.31 USD | View product → | |
| 5 | 11205-GHAH-C00 | BUSH 8*12*8 | 1 | $4.59 USD | View product → | |
| 6 | 11205-KED5-C00 | BUSH M STAND | 1 | $15.21 USD | View product → | |
| 7 | 11208-GKAK-C00 | CLAMPER CARB DRAIN | 1 | $7.17 USD | View product → | |
| 8 | 14100-KEB7-C00 | VALVE COMP REED | 1 | $123.33 USD | View product → | |
| 9 | 15100-KEB7-E00 | PUMP ASSY OIL | 1 | $146.10 USD | View product → | |
| 10 | 15110-KEB7-C00 | PLATE OIL PUMP SET | 1 | $28.80 USD | View product → | |
| 11 | 1551A-LCD1-C00 | TUBE ASSY OIL PUMP ASSY | 1 | $27.99 USD | View product → | |
| 12 | 16.64 | PUMP ASSY OIL | 1 | $175.32 USD | View product → | |
| 13 | 1621A-GKAK-C00 | INSULATOR CARB ASSY | 1 | $16.14 USD | View product → | |
| 14 | 17100-KEB7-E00 | PIPE COMP INLET | 1 | $129.21 USD | View product → | |
| 15 | 17111-LHM9-E90 | GASKET INLET PIPE A | 1 | $14.73 USD | View product → | |
| 16 | 17112-KEB7-E90 | GASKET INLET PIPE B | 1 | $6.87 USD | View product → | |
| 17 | 55200-LGR4-E10 | TUBE ASSY OIL | 1 | $35.10 USD | View product → | |
| 18 | 80102-LHM9-E10 | STAY A RR TIRE FENDER | 1 | $7.92 USD | View product → | |
| 19 | 90474-3C33-C00 | WASHER 8MM(T*2) | 1 | $0.99 USD | View product → | |
| 20 | 91001-GLW0-C00 | BRG BALL RADIAL6204 | 1 | $47.10 USD | View product → | |
| 21 | 91004-KBN2-C00 | BRG BALL RADIAL 6201 | 1 | $94.98 USD | View product → | |
| 22 | 91004-KNBN-C00 | BRG BALL RADIAL 6203 | 1 | $70.98 USD | View product → | |
| 23 | 91006-KNBN-C00 | BRG BALL RADIAL25*56*12 | 1 | $52.71 USD | View product → | |
| 24 | 91201-KNBN-C00 | OIL SEAL 15.6*25.5*7 | 1 | $35.10 USD | View product → | |
| 25 | 91202-KNBN-C00 | OIL SEAL 20*31*7 | 1 | $44.85 USD | View product → | |
| 26 | 91204-KNBN-C00 | OIL SEAL 17*30*6 | 1 | $41.10 USD | View product → | |
| 27 | 93500-05012-0H | SCREW PAN 5*12 | 2 | $2.37 USD | View product → | |
| 28 | 94301-10200 | DOWEL PIN 10*20 | 6 | $6.39 USD | View product → | |
| 29 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 2 | $3.27 USD | View product → | |
| 30 | 95701-08040-08 | BOLT FLANGE 8*40 (C) | 5 | $7.89 USD | View product → | |
| 31 | 95801-08035-08 | BOLT FLANGE 8*35 | 2 | $9.06 USD | View product → | |
| 32 | 96001-06025-08 | BOLT FLANGE SH 6*25 | 3 | $2.61 USD | View product → | |
| 33 | 96001-06032-08 | BOLT FLANGE SH 6*32 | 1 | $4.92 USD | View product → | |
| 34 | 96001-06045-08 | BOLT FLANGE SH 6*45 | 3 | $7.53 USD | View product → | |
| 35 | 96001-06055-08 | BOLT FLANGE SH 6*55 | 3 | $7.53 USD | View product → | |
| 36 | 96100-62033-00 | BEARING BALL RADIAL 6203 | 1 | $44.31 USD | View product → |
