F22 — Emblem ● Stripe

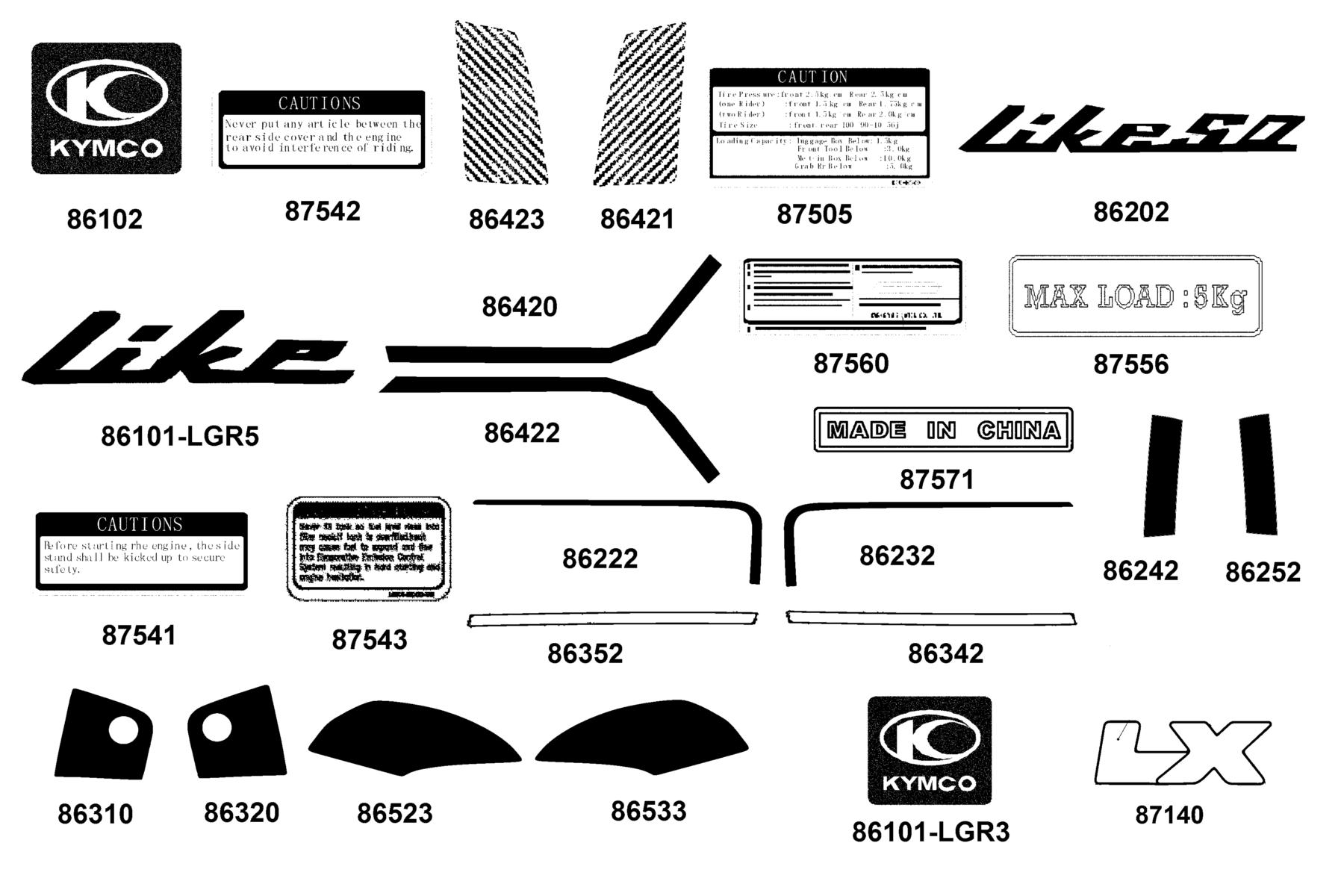

The Emblem ● Stripe diagram contains 25 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86101-LGR3-E00-T01 | STRIPE FR COVER | 1 | $4.92 USD | View product → | |
| 2 | 86101-LGR5-E10-T01 | STRIPE FR COVER | 1 | $26.01 USD | View product → | |
| 3 | 86102-LGR5-E00-T01 | EMB K-LOGO | 1 | $34.32 USD | View product → | |
| 4 | 86202-LGR3-E10-T01 | EMB BODY COVER | 1 | $39.00 USD | View product → | |
| 5 | 86222-LGR5-E11-T01 | STRIPE B FR MOLD R SIDE | 1 | $59.97 USD | View product → | |
| 6 | 86232-LGR5-E11-T01 | STRIPE B FR MOLD L SIDE | 1 | $59.97 USD | View product → | |
| 7 | 86242-LGR5-E11-T01 | STRIPE A FR MOLD R SIDE | 1 | $14.70 USD | View product → | |
| 8 | 86252-LGR5-E11-T01 | STRIPE A FR MOLD L SIDE | 1 | $14.70 USD | View product → | |
| 9 | 86310-LGR5-E11-T01 | STRIPE R SIDE MOLD | 1 | $14.70 USD | View product → | |
| 10 | 86320-LGR5-E11-T01 | STRIPE L SIDE MOLD | 1 | $14.70 USD | View product → | |
| 11 | 86342-LGR5-BA0-T01 | EMB R SKIRT | 1 | $26.01 USD | View product → | |
| 12 | 86352-LGR5-BA0-T01 | EMB L SKIRT | 1 | $26.01 USD | View product → | |
| 13 | 86420-LGR5-E00-T01 | EMB R FRINGE | 1 | $37.71 USD | View product → | |
| 14 | 86421-LGR5-E00-T01 | STRIPE REAR BOX | 1 | $24.99 USD | View product → | |
| 15 | 86422-LGR5-E00-T01 | EMB L FRINGE | 1 | $37.71 USD | View product → | |
| 16 | 86423-LGR5-E00-T01 | STRIPE REAR BOX | 1 | $24.99 USD | View product → | |
| 17 | 86523-LGR5-E11-T01 | STRIPE R FR FENDER | 1 | $70.35 USD | View product → | |
| 18 | 86533-LGR5-E11-T01 | STRIPE L FR FENDER | 1 | $70.35 USD | View product → | |
| 19 | 87140-LGR5-E11-T01 | STRIPE MARK | 1 | $17.07 USD | View product → | |
| 20 | 87505-LDC8-E10-T01 | LABEL TIRE | 1 | $1.32 USD | View product → | |
| 21 | 87541-GAR1-C01-T01 | CAUTION SIDE STAND | 1 | $5.34 USD | View product → | |
| 22 | 87542-GAR1-C01-T01 | MARK MAINT CAUTION R | 1 | $2.97 USD | View product → | |
| 23 | 87556-LEJ2-E00-T01 | STRIPE GRAB RR | 1 | $4.92 USD | View product → | |
| 24 | 87560-KNBN-E01-T01 | MARK DRIVE CAUTION | 1 | $9.18 USD | View product → | |
| 25 | 87571-LDC8-B90-T01 | LABEL MIC | 1 | $7.23 USD | View product → |
