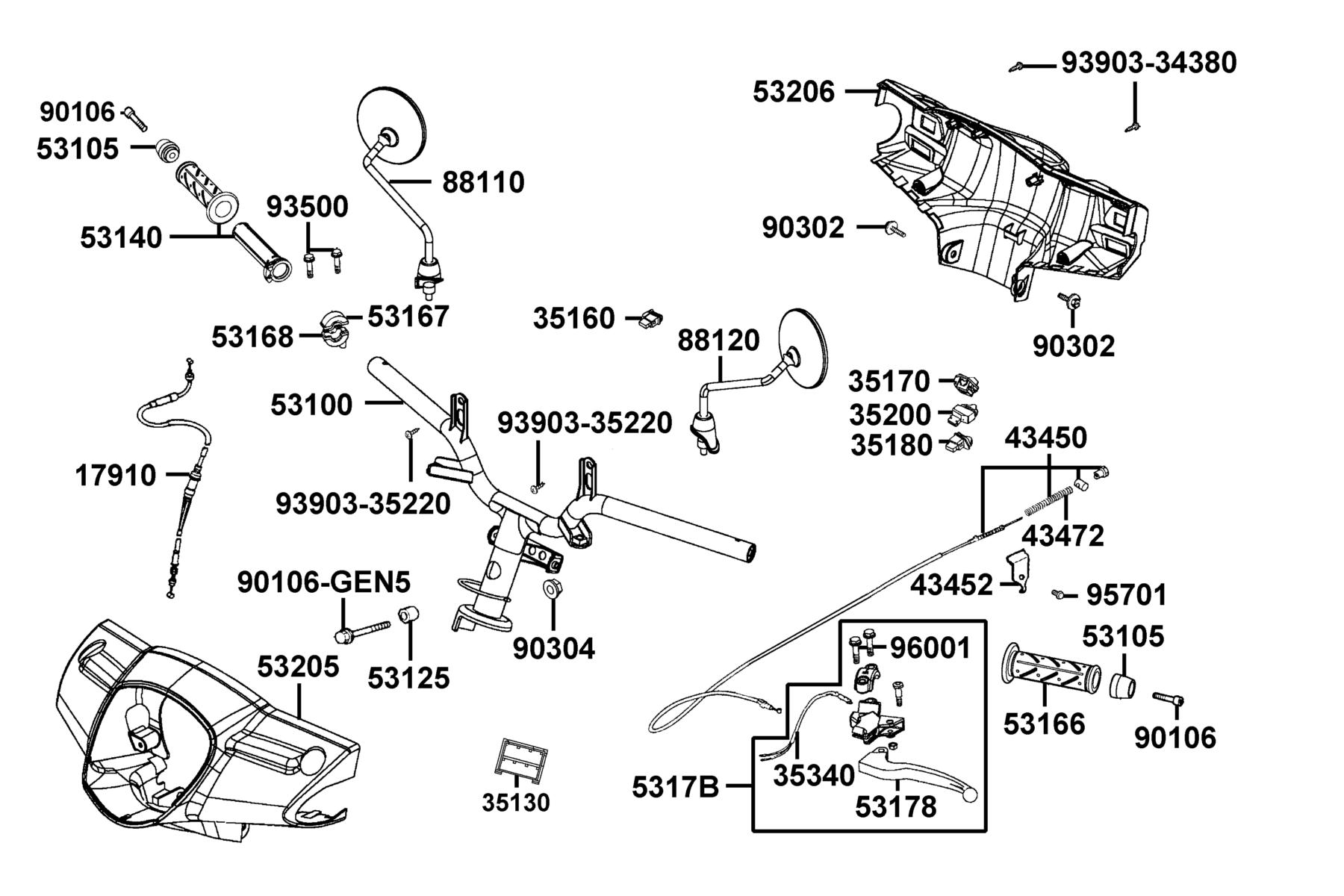

F03 — Handle Steering ● Handle Cover
The Handle Steering ● Handle Cover diagram contains 33 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-LGR4-E10 | CABLE COMP THROT | 1 | $123.06 USD | View product → | |
| 2 | 35130-LGR4-M30 | SW UNIT KILL | 1 | $31.74 USD | View product → | |
| 3 | 35160-GFY6-C00 | SW UNIT START | 1 | $28.95 USD | View product → | |
| 4 | 35170-KNBN-C00 | SW UNIT DIMMER PASSING | 1 | $45.36 USD | View product → | |
| 5 | 35180-GFY6-C00 | SW UNIT HORN | 1 | $28.95 USD | View product → | |
| 6 | 35200-GFY6-C00 | SW UNIT WINKER | 1 | $37.59 USD | View product → | |
| 7 | 35340-KFLF-C00 | SW ASSY FR STOP | 1 | $24.66 USD | View product → | |
| 8 | 43450-LGR4-E10 | CABLE COMP RR BRK | 1 | $50.28 USD | View product → | |
| 9 | 43452-GKAK-C00 | CLAMP BRK CABLE | 1 | $3.36 USD | View product → | |
| 10 | 43472-KHG8-C00 | SPG RR BRK ARM | 1 | $2.97 USD | View product → | |
| 11 | 53100-LGR5-E10 | HANDLE COMP STRG | 1 | $146.91 USD | View product → | |
| 12 | 53105-LGR5-E10 | END R HANDLE | 2 | $39.99 USD | View product → | |
| 13 | 53125-GEN5-C00 | COLLAR HANDLE SET | 1 | $19.80 USD | View product → | |
| 14 | 53140-KNBN-C00-N1R | GRIP COMP THROT | 1 | $30.39 USD | View product → | |
| 15 | 53166-KNBN-C00-N1R | GRIP L HANDLE | 1 | $28.05 USD | View product → | |
| 16 | 53167-GBN2-C00 | HOUSING UND THROT | 1 | $9.39 USD | View product → | |
| 17 | 53168-GBN2-C00 | HOUSING UP THROT | 1 | $7.17 USD | View product → | |
| 18 | 53178-LGR3-E10 | LEVEL, L STRG HANDLE | 1 | $67.62 USD | View product → | |
| 19 | 5317B-LGR3-E10 | "BRKT ASSY, L HNDL(PARK)" | 1 | $130.71 USD | View product → | |
| 20 | 53205-LGR4-M30-DHB | COVER HANDLE FR | 1 | $141.06 USD | View product → | |
| 21 | 53206-LGR5-E10-NMP | COVER HANDLE RR WHITE | 1 | $139.89 USD | View product → | |
| 22 | 88110-LGR5-M30 | MIRROR ASSY R BACK | 1 | $177.81 USD | View product → | |
| 23 | 88120-LGR5-M30 | MIRROR ASSY L BACK | 1 | $178.68 USD | View product → | |
| 24 | 90106-GEN5-901 | BOLT FLANGE 10*50 | 1 | $15.06 USD | View product → | |
| 25 | 90106-KFAF-900 | BOLT SPECIAL 8*32 | 1 | $7.56 USD | View product → | |
| 26 | 90106-KFAF-900-invalid | BOLT SPECIAL 8*32 | 1 | $9.84 USD | View product → | |
| 27 | 90302-LLB1-C01 | BOLT-WASH 5*12 | 1 | $1.32 USD | View product → | |
| 28 | 90304-GHE8-C00 | NUT U 10MM (C) | 1 | $18.33 USD | View product → | |
| 29 | 93500-05022-0G | SCREW PAN 5*22 | 1 | $4.92 USD | View product → | |
| 30 | 93903-34380 | SCREW TAPPING 4*12 (K) | 1 | $3.75 USD | View product → | |
| 31 | 93903-35220-G | SCREW TAPPING 5*12 | 2 | $0.99 USD | View product → | |
| 32 | 95701-06012-08 | BOLT FLANGE 6*12 | 1 | $2.61 USD | View product → | |
| 33 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → |
