E06 — Driven Pulley

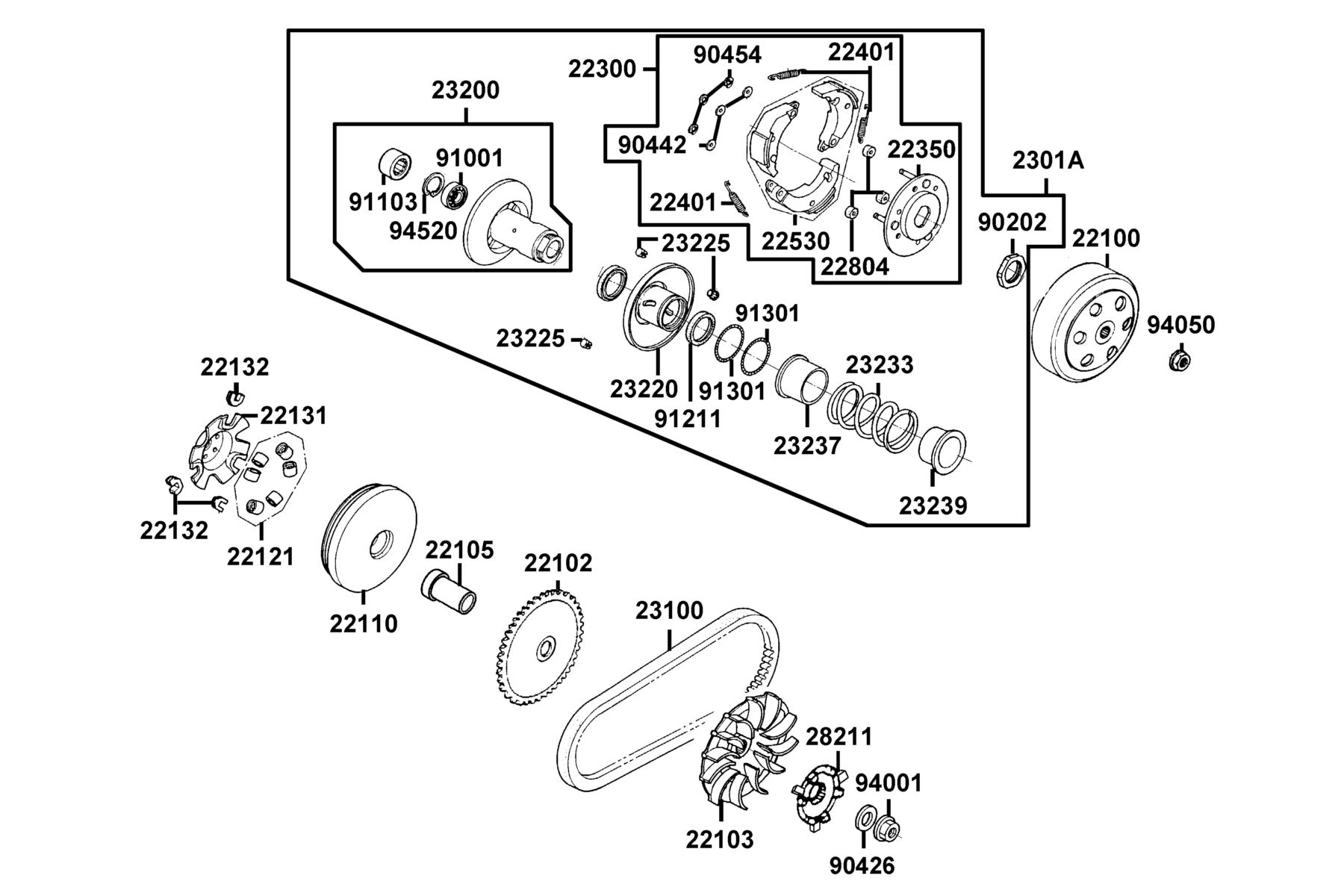

The Driven Pulley diagram contains 33 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 22100-LDC8-E10 | CLUTCH OUTER | 1 | $88.92 USD | View product → | |
| 2 | 22102-LDC8-E10 | FACE DRIVE | 1 | $58.98 USD | View product → | |
| 3 | 22103-KEB7-C00 | FACE CVT COOLING | 1 | $11.79 USD | View product → | |
| 4 | 22105-KGBG-C00 | BOSS DRIVE FACE | 1 | $38.88 USD | View product → | |
| 5 | 22110-LDC8-E10 | FACE COMP MOVABLE DRIVE | 1 | $48.21 USD | View product → | |
| 6 | 22121-LBD6-315 | ROLLER SET WEIGHT (1SET:6PCS)6.5G*6 | 6 | $46.86 USD | View product → | |
| 7 | 22131-GHAH-C00 | PLATE RAMP | 1 | $36.93 USD | View product → | |
| 8 | 22132-GLW0-315 | PIECE SLIDE(1SET:3PCS) | 3 | $28.35 USD | View product → | |
| 9 | 22300-GGAG-C00 | PLATE ASSY DRIVE | 1 | $181.92 USD | View product → | |
| 10 | 22350-GKAK-C00 | PLATE COMP DRIVE | 1 | $27.12 USD | View product → | |
| 11 | 22401-GJAJ-C00 | SPRING CLUTHC | 3 | $6.54 USD | View product → | |
| 12 | 22530-GKAK-C00 | WEIGHT CLUTCH | 1 | $43.41 USD | View product → | |
| 13 | 22804-1H48-C00 | RUBBER CLUTCH DUMPER | 3 | $4.59 USD | View product → | |
| 14 | 2301A-LEA3-C00 | PULLEY ASSY DRIVEN | 1 | $284.40 USD | View product → | |
| 15 | 23100-KEB7-C00 | BELT DRIVE | 1 | $137.31 USD | View product → | |
| 16 | 23200-GAR1-C00 | FACE ASSY DRIVEN | 2 | $94.62 USD | View product → | |
| 17 | 23220-KEE1-C00 | "FACE COMP., MOVABLE" | 1 | $127.05 USD | View product → | |
| 18 | 23225-GAR1-C00 | PIN GUIDE | 3 | $1.95 USD | View product → | |
| 19 | 23233-LEA3-C00 | SPG DRIVEN FACE | 1 | $52.29 USD | View product → | |
| 20 | 23237-GAR1-C00 | COLLAR SEAL | 1 | $46.74 USD | View product → | |
| 21 | 23239-LEA3-C00 | COLLAR SPG | 1 | — | Part details → | |
| 22 | 28211-KEB7-W10 | RATCHET KICK STARTER | 1 | $36.30 USD | View product → | |
| 23 | 90202-1G87-C00 | NUT SPECIAL 28MM | 1 | $14.07 USD | View product → | |
| 24 | 90426-KNBN-C01 | WASHER SPECIAL 12MM | 1 | $4.59 USD | View product → | |
| 25 | 90442-0D44-C00 | WASHER THRUST 6M/M | 3 | $6.87 USD | View product → | |
| 26 | 90454-GBB2-C00 | CIR CLIP 6MM | 3 | $1.95 USD | View product → | |
| 27 | 91001-GGA7-C00 | BRG RADIAL BALL 6901U | 1 | $16.14 USD | View product → | |
| 28 | 91103-GAR1-C00 | BRG NEEDLE 17*25*18 WS | 1 | $18.87 USD | View product → | |
| 29 | 91211-GHK8-C00 | OIL SEAL 34*39*3 | 1 | $16.77 USD | View product → | |
| 30 | 91301-KEA5-C00 | O-RING 36*1.5 | 1 | $3.60 USD | View product → | |
| 31 | 94001-12280-0SG | NUT HEX 12MM(C) | 1 | $1.65 USD | View product → | |
| 32 | 94050-10080-G | NUT FLANGE 10MM | 1 | $1.95 USD | View product → | |
| 33 | 94520-24000 | CIR CLIP IN 24 | 3 | $4.92 USD | View product → |
