F09 — Seat

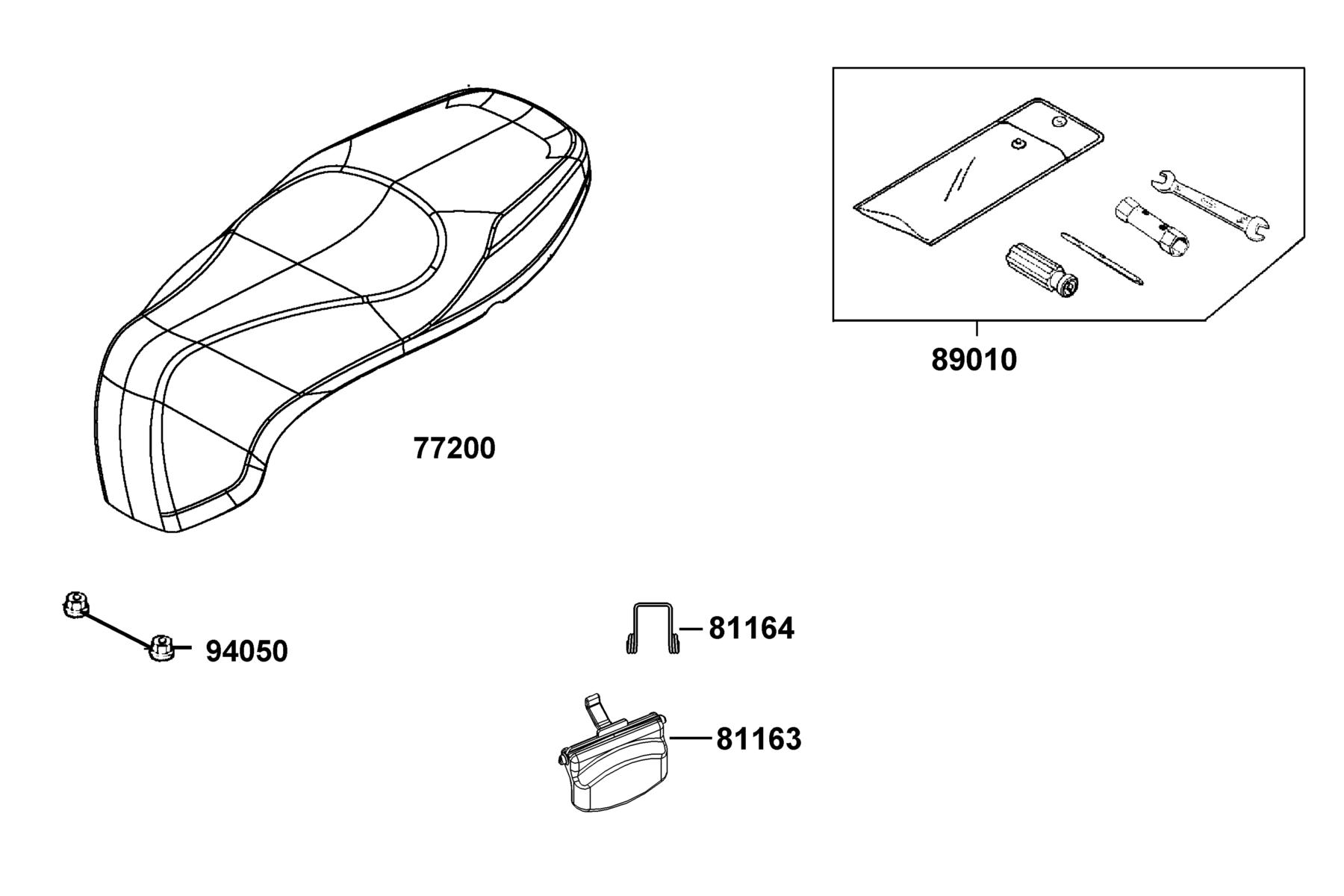

The Seat diagram contains 5 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 77200-ACC1-E10-T04 | SEAT ASSY | 1 | $461.94 USD | View product → | |
| 2 | 81163-LKJ1-900 | LID LATCH LEG SHIELD | 1 | $4.56 USD | View product → | |
| 3 | 81164-LKJ1-900 | LID SPRING LEG SHIELD | 1 | $0.87 USD | View product → | |
| 4 | 89010-KGBG-C00 | TOOL SET | 1 | $47.94 USD | View product → | |
| 5 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → |
