F05 — Front Cover ● Front Fender

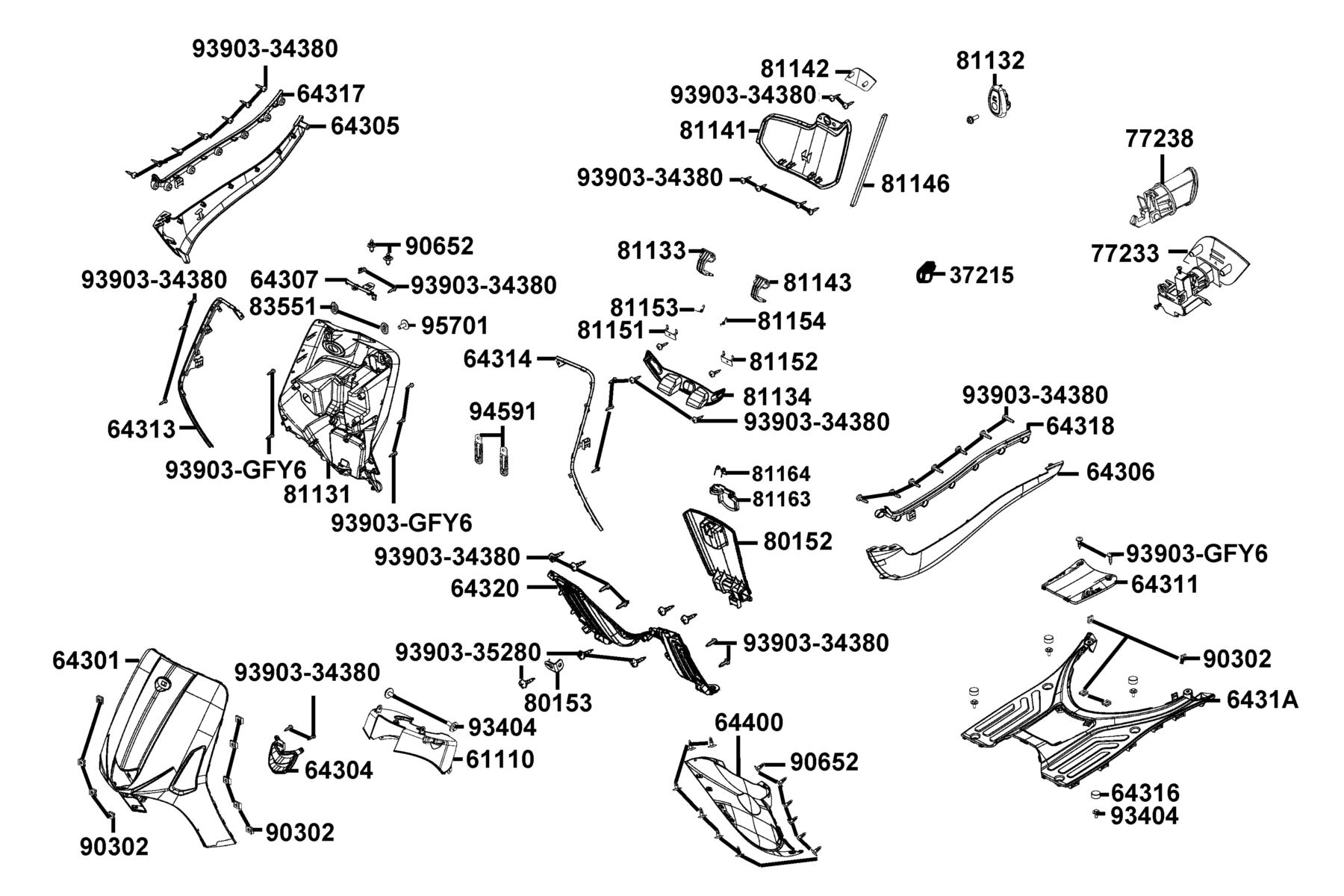

The Front Cover ● Front Fender diagram contains 42 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 37215-LGM9-C00 | CLAMP | 1 | $1.32 USD | View product → | |
| 2 | 61110-ACC1-E10-N1R | FENDER FR INNER (Black) | 1 | $24.72 USD | View product → | |
| 3 | 64301-ACC1-E10-NVP | COVER FR | 1 | $97.29 USD | View product → | |
| 4 | 64304-ACC1-E10-F1P | LID FR.COVER LOW | 1 | $33.09 USD | View product → | |
| 5 | 64305-ACC1-E10-NVP | SKIRT R SIDE (Pearly White) | 1 | $84.84 USD | View product → | |
| 6 | 64306-ACC1-E10-NVP | SKIRT L SIDE (Pearly White) | 1 | $85.80 USD | View product → | |
| 7 | 64307-ACC1-E10-F1P | COVER FR DEC TOP | 1 | $36.15 USD | View product → | |
| 8 | 64311-ACC1-E10-N1R | COVER PUMP (Black) | 1 | $9.51 USD | View product → | |
| 9 | 64313-ACC1-E10-F1P | COVER FR DEC R | 1 | $94.83 USD | View product → | |
| 10 | 64314-ACC1-E10-F1P | COVER FR DEC L | 1 | $75.81 USD | View product → | |
| 11 | 64316-LCB9-C10-N1R | PLUG FLOOR (Black) | 4 | $6.09 USD | View product → | |
| 12 | 64317-ACC1-E10-F1P | COVER FLOOR DEC R | 1 | $54.42 USD | View product → | |
| 13 | 64318-ACC1-E10-F1P | COVER FLOOR DEC L | 1 | $54.42 USD | View product → | |
| 14 | 6431A-ACC1-E10-N1R | "ASSY., PANEL FLOOR" (Black) | 1 | $34.35 USD | View product → | |
| 15 | 64320-ACC1-E10-N1R | FLOOR PANEL UP (Black) | 1 | $23.10 USD | View product → | |
| 16 | 64400-ACC1-E10-N1R | UNDER COWL (Black) | 1 | $27.45 USD | View product → | |
| 17 | 77233-ACC1-E10 | INNER BOX KEY | 1 | $39.72 USD | View product → | |
| 18 | 77238-ACC1-E11 | HOOK COMP PUSH | 1 | $39.72 USD | View product → | |
| 19 | 80152-ACC1-E10-NVP | COVER CENTER | 1 | $52.56 USD | View product → | |
| 20 | 80153-ACC1-E10 | STAY FUEL COVER | 1 | $2.64 USD | View product → | |
| 21 | 81131-AEA7-M30-NVP | LEG SHIELD | 1 | $172.05 USD | View product → | |
| 22 | 81132-ACC1-C00 | HOOK LUGGAGE | 1 | $5.04 USD | View product → | |
| 23 | 81133-ACC1-E10 | HINDE R COVER LEG SHIE | 1 | $5.04 USD | View product → | |
| 24 | 81134-ACC1-E10 | PLATE INNER BOX | 1 | $17.97 USD | View product → | |
| 25 | 81141-ACC1-E10-NVP | LID INNER BOX | 1 | $72.63 USD | View product → | |
| 26 | 81142-ACC1-E11-F1P | LID PUSH PRESS | 1 | $34.74 USD | View product → | |
| 27 | 81146-ACC1-E10 | FOAM STRIP | 1 | $3.18 USD | View product → | |
| 28 | 81151-ACC1-E10 | STAY R LID INNER BOX | 1 | $2.10 USD | View product → | |
| 29 | 81152-ACC1-E10 | STAY L LID INNER BOX | 1 | $2.10 USD | View product → | |
| 30 | 81153-ACC1-E10 | SPRING R COVER LEG SHIE | 1 | $1.32 USD | View product → | |
| 31 | 81154-ACC1-E10 | SPRING L COVER LEG SHIE | 1 | $1.32 USD | View product → | |
| 32 | 81163-LKJ1-900 | LID LATCH LEG SHIELD | 1 | $4.56 USD | View product → | |
| 33 | 81164-LKJ1-900 | LID SPRING LEG SHIELD | 1 | $0.87 USD | View product → | |
| 34 | 83551-ACC1-E10 | GROMMET COVER | 2 | $1.32 USD | View product → | |
| 35 | 90302-SDA4-C01 | NUT SPRING 4MM | 13 | $0.99 USD | View product → | |
| 36 | 90652-LFB5-C00 | CLIP MUDGUARD | 12 | $2.31 USD | View product → | |
| 37 | 93404-06012-07G | 0 | 4 | $1.32 USD | View product → | |
| 38 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 47 | $2.73 USD | View product → | |
| 39 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 1 | $0.99 USD | View product → | |
| 40 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 7 | $4.92 USD | View product → | |
| 41 | 94591-LGR5-E10 | CLIP 1*100 | 2 | $4.92 USD | View product → | |
| 42 | 95701-06014-07G | BOLT FLANGE 6X14(KG) | 1 | $1.32 USD | View product → |
