F04 — Brake Master Cylinder

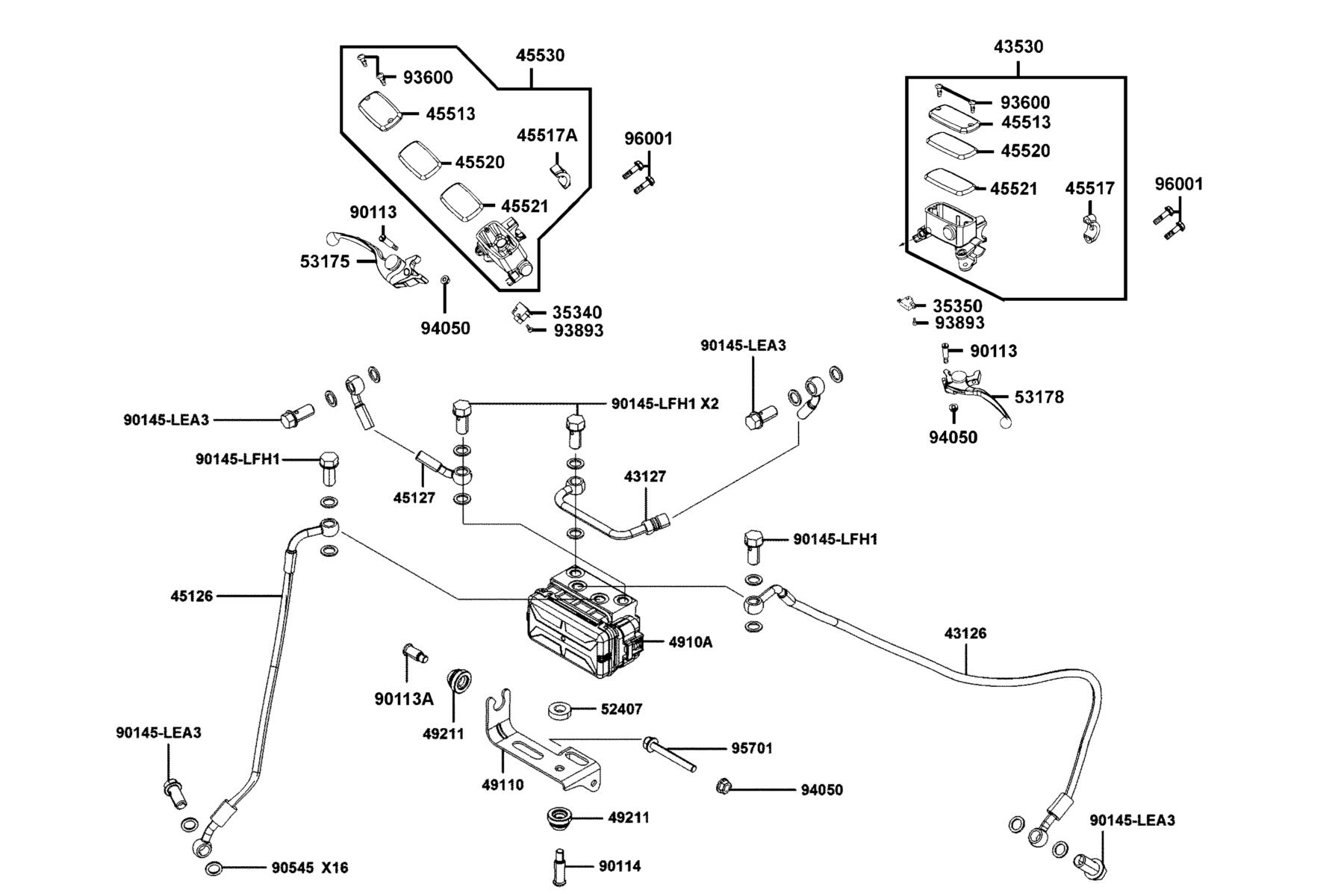

The Brake Master Cylinder diagram contains 31 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35340-LKF5-E01 | SW ASSY FR STOP | 1 | $107.22 USD | View product → | |
| 2 | 35350-LKF5-E01 | SW ASSY RR STOP | 1 | $107.22 USD | View product → | |
| 3 | 43126-BAA5-E00 | HOSE COMP A RR BRK | 1 | — | Part details → | |
| 4 | 43127-BAA7-E00 | HOSE COMP B RR BRK | 1 | — | Part details → | |
| 5 | 43530-LEA7-305 | CYLINDER SET MASTER | 1 | $300.42 USD | View product → | |
| 6 | 45126-BAA7-E00 | HOSE COMP A FR BRK | 1 | $53.79 USD | View product → | |
| 7 | 45127-BAA7-E00 | HOSE COMP FR BRK | 1 | — | Part details → | |
| 8 | 45513-LEA7-E00 | CAP MASTER CYLINDER | 2 | $47.01 USD | View product → | |
| 9 | 45517-LBA2-E00 | HOLDER M/C | 1 | $36.36 USD | View product → | |
| 10 | 45517-LKF5-E00 | HOLDER M/C | 1 | $29.10 USD | View product → | |
| 11 | 45520-KKA8-900 | DIAPHRAGM | 2 | $42.30 USD | View product → | |
| 12 | 45521-LEA7-E00 | PLATE DIAPHRAGM | 2 | $37.65 USD | View product → | |
| 13 | 45530-LBA2-308 | CYLINDER SET FR MASTER | 1 | $210.42 USD | View product → | |
| 14 | 4910A-BAA7-E00 | MODULATOR ASSY ABS WITH VARIANT CODING | 1 | — | Part details → | |
| 15 | 49110-AEE2-700 | STAY ABS | 1 | $38.52 USD | View product → | |
| 16 | 49211-LFH1-E00 | RUBBER BUSH| | 2 | $13.11 USD | View product → | |
| 17 | 52407-LLB1-900 | RUBBER RR CUSH | 1 | $4.17 USD | View product → | |
| 18 | 53175-LKF5-E00-M3A | LEVER R STRG HANDLE | 1 | $145.32 USD | View product → | |
| 19 | 53178-LKF5-E00-M3A | LEVER L STRG HANDLE | 1 | $145.32 USD | View product → | |
| 20 | 90113-KKA8-900 | BOLT L STEERING HANDLE | 2 | $9.39 USD | View product → | |
| 21 | 90113-LGE5-E01 | BOLT FLANGE 6X20 ABS | 1 | $26.37 USD | View product → | |
| 22 | 90114-LGE5-E01 | BOLT FLANGE 6X30.5 ABS | 1 | $27.39 USD | View product → | |
| 23 | 90145-LEA3-E00 | OIL BOLT 10*22 | 4 | $22.86 USD | View product → | |
| 24 | 90145-LFH1-E00 | OIL BOLT 10x22 | 4 | $29.52 USD | View product → | |
| 25 | 90545-3L00-001 | WASHER OIL BOLT | 16 | $2.91 USD | View product → | |
| 26 | 90545-3L00-001(wrong) | WASHER OIL BOLT | 16 | $3.78 USD | View product → | |
| 27 | 93600-04012-1G | SCREW FLAT 4*12 | 4 | $5.67 USD | View product → | |
| 28 | 93893-04012-18 | SCREW WASHER 4*12 | 2 | $1.86 USD | View product → | |
| 29 | 94050-06060 | NUT FLANGE 6MM | 3 | $4.92 USD | View product → | |
| 30 | 95701-06050-06 | BOLT FLANGE 6*50 | 1 | $4.92 USD | View product → | |
| 31 | 96001-06028-06 | BOLT FLANGE SH 6*28 | 4 | $1.95 USD | View product → |
