F14 — Exhaust Muffler

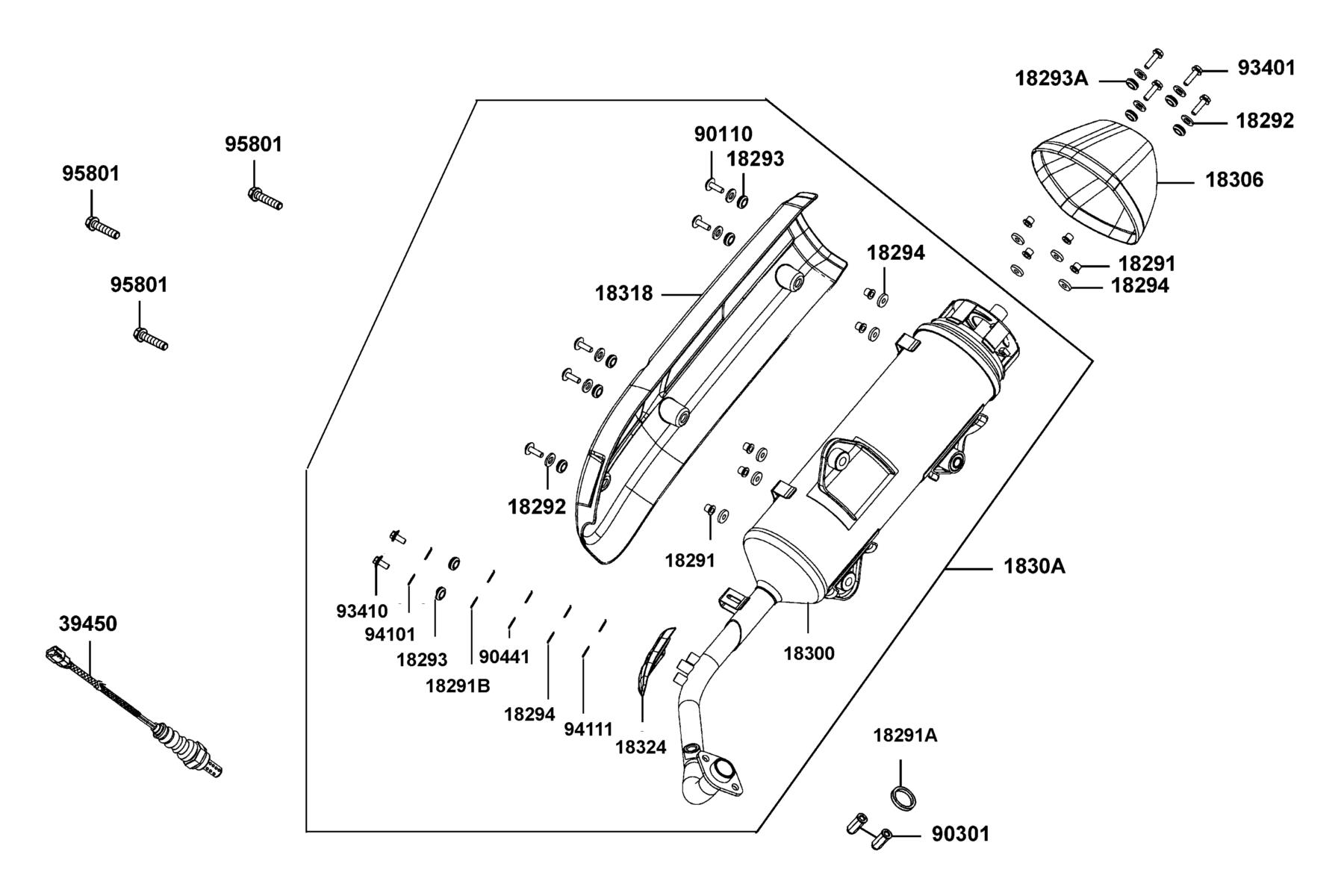

The Exhaust Muffler diagram contains 24 genuine OEM parts for the KYMCO DOWNTOWN GT 125. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 18291-KEBE-900 | COLLAR | 9 | $3.78 USD | View product → | |
| 2 | 18291-KEBE-900(wrong) | COLLAR | 9 | $4.92 USD | View product → | |
| 3 | 18291-LBA7-900 | GASKET EXHAUST PIPE | 1 | $13.80 USD | View product → | |
| 4 | 18291-LKG2-90A | COLLAR | 2 | $2.76 USD | View product → | |
| 5 | 18292-KEBE-900 | PACKING PROTECTOR | 7 | $4.92 USD | View product → | |
| 6 | 18293-KEBE-900 | RUBBER PKG PROTR | 5 | $4.92 USD | View product → | |
| 7 | 18293-LGE5-900 | RUBBER PKG PROTR | 4 | $8.34 USD | View product → | |
| 8 | 18293-LHJ8-900 | RUBBER PKG PROTR | 2 | $11.79 USD | View product → | |
| 9 | 18294-KEBE-900 | PACKING PROTECTOR | 11 | $12.84 USD | View product → | |
| 10 | 18294-KEBE-900(wrong) | PACKING PTOTECTOR | 11 | $3.78 USD | View product → | |
| 11 | 18300-BAA5-E00 | MUFFLER COMP EXH | 1 | $668.16 USD | View product → | |
| 12 | 18306-LGE5-E00-JBP | TAIL CAP MUFFLER | 1 | $107.28 USD | View product → | |
| 13 | 1830A-BAA5-E00-T01 | MUFFLER ASSY EXH | 1 | $621.44 USD | View product → | |
| 14 | 18318-LGE7-E0A-JBP | PROTECTOR MUFFLER | 1 | $110.67 USD | View product → | |
| 15 | 18324-BAA5-E00-JBP | PROTECTOR EXHAUST | 1 | — | Part details → | |
| 16 | 39450-ZVA6-M00 | O2 SENSOR | 1 | $322.38 USD | View product → | |
| 17 | 90110-KHD8-900 | SCREW SPECIAL 6*20 | 5 | $4.92 USD | View product → | |
| 18 | 90301-GFY6-901 | NUT (HEX) CAP 8MM(C) | 2 | $19.26 USD | View product → | |
| 19 | 90441-ACD5-E00 | WASHER PLATE | 2 | $3.27 USD | View product → | |
| 20 | 93401-06022-07 | BOLT WASHER 6*22 | 4 | $3.66 USD | View product → | |
| 21 | 93410-06022 | BOLT WASHER 6*22(G) | 2 | — | Part details → | |
| 22 | 94101-LEA2-900 | WASHER PLAIN 6.5*18*1.5 | 2 | $5.88 USD | View product → | |
| 23 | 94111-ACD5-E00 | WASHER.SPG | 2 | $11.79 USD | View product → | |
| 24 | 95801-10060-06 | BOLT FLANGE 10*60 | 3 | $15.45 USD | View product → |
