E09 — Transmission

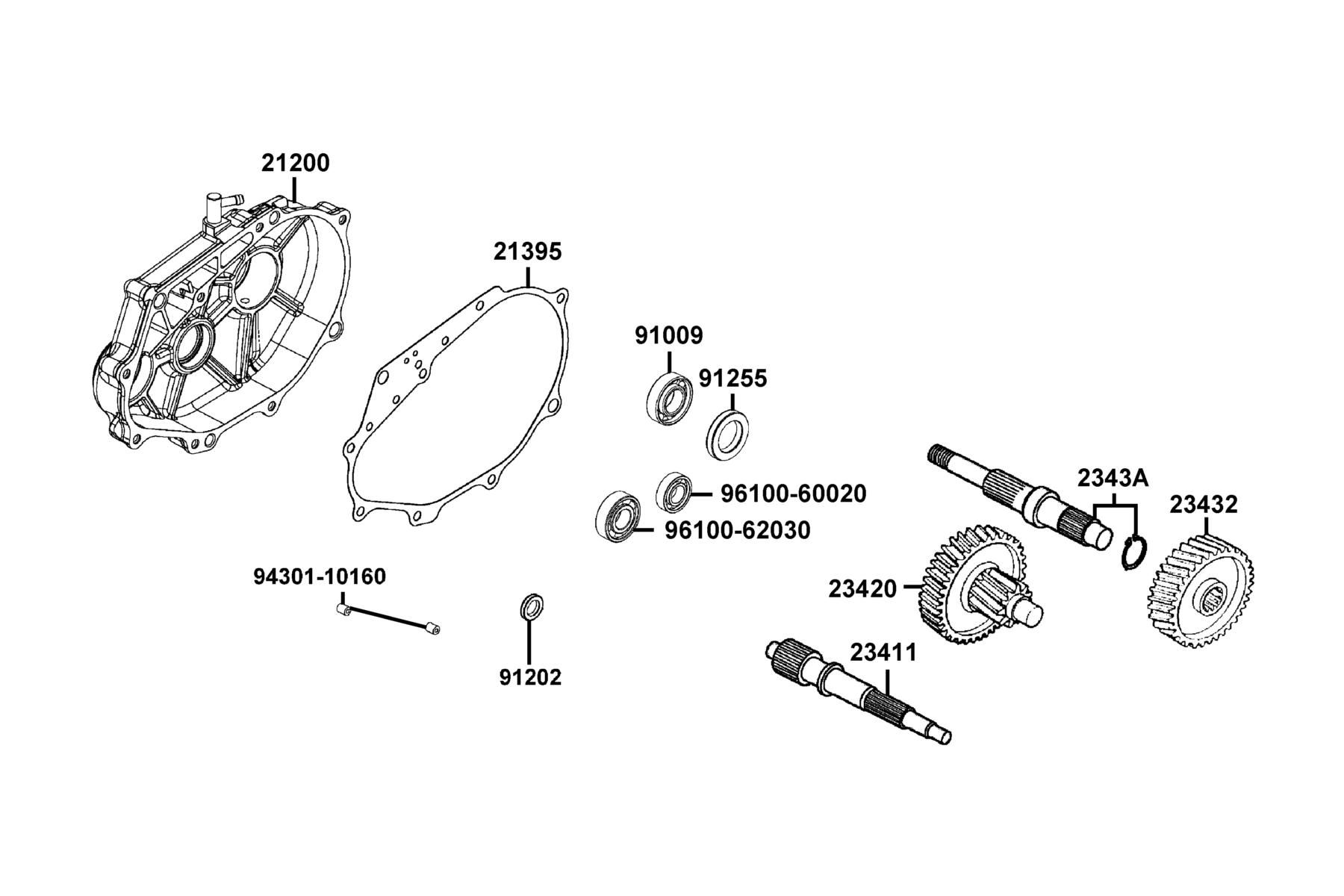

The Transmission diagram contains 12 genuine OEM parts for the KYMCO People S 150i ABS MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 21200-AEB9-E00 | CASE COMP MISSION | 1 | $131.40 USD | View product → | |
| 2 | 21395-AEB9-E00 | GASKET MISSION CASE | 1 | $38.22 USD | View product → | |
| 3 | 23411-LFB5-C00 | SHAFT DRIVE | 1 | $110.37 USD | View product → | |
| 4 | 23420-AEB9-E00 | SHAFT COMP COUNTER | 1 | $179.25 USD | View product → | |
| 5 | 23432-AEB9-E00 | GEAR FINALV | 1 | $159.42 USD | View product → | |
| 6 | 2343A-LFB5-C00 | SHAFT FINAL | 1 | $105.66 USD | View product → | |
| 7 | 91009-GLE0-C00 | BRG BALL RADIAL 6004 UU | 1 | $36.51 USD | View product → | |
| 8 | 91202-LFE2-C00 | OIL SEAL 22*32*6 | 1 | $16.77 USD | View product → | |
| 9 | 91255-LDC8-E10 | OIL SEAL 27*42*7 (C???) | 1 | $8.70 USD | View product → | |
| 10 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → | |
| 11 | 96100-60020-00 | BRG BALL RADIAL 6002 | 1 | $53.61 USD | View product → | |
| 12 | 96100-62030-00 | BRG BALL RADIAL 6203 | 1 | $42.36 USD | View product → |
