F04 — Brake Master Cylinder

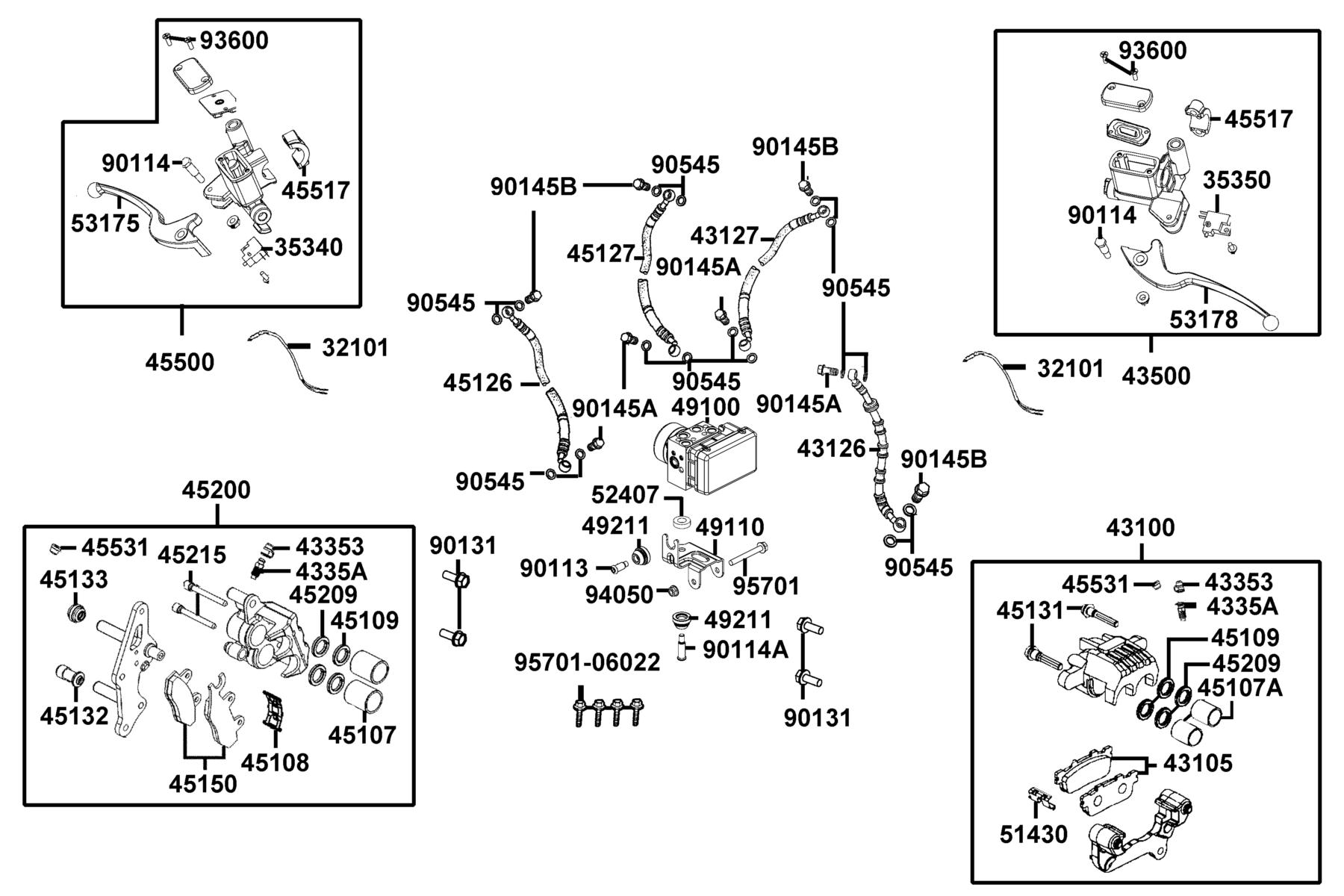

The Brake Master Cylinder diagram contains 47 genuine OEM parts for the KYMCO People S 150i ABS MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 32101-GFY6-C00 | SUB CORD R/L | 2 | $15.51 USD | View product → | |
| 2 | 35340-KNBN-C00 | SW ASSY FR STOP | 1 | $44.07 USD | View product → | |
| 3 | 35350-KNBN-C00 | SW ASSY RR STOP | 1 | $54.00 USD | View product → | |
| 4 | 43100-LKG2-C00-NEA | CALIPER ASSY RR BRK | 1 | $566.22 USD | View product → | |
| 5 | 43105-LKG2-305 | PAD SET | 1 | $100.68 USD | View product → | |
| 6 | 43126-AEB9-E00 | HCBS STAY | 1 | $170.55 USD | View product → | |
| 7 | 43127-AEB9-M30 | HCBS STAY | 1 | $109.65 USD | View product → | |
| 8 | 43353-4A61-C00 | CAP BLEEDER | 2 | $5.64 USD | View product → | |
| 9 | 4335A-LBA2-E01 | BLEEDER ASSY | 2 | $39.72 USD | View product → | |
| 10 | 43500-AEB9-M30 | M/C ASSY., REAR | 1 | $278.82 USD | View product → | |
| 11 | 45107-LFB5-C00 | PISTON C/P | 2 | — | Part details → | |
| 12 | 45107-MEN5-007 | PISTON C/P ((??25.4MM) | 2 | $80.52 USD | View product → | |
| 13 | 45108-MDL4-C00 | PAD SPG | 1 | $12.12 USD | View product → | |
| 14 | 45109-GBE2-C00 | DUST SEAL | 4 | $15.24 USD | View product → | |
| 15 | 45126-AEB9-C00 | HOSE ASSY FR BRK | 1 | $166.62 USD | View product → | |
| 16 | 45127-AEB9-M30 | HCLAMPER FR BRK HOSE | 1 | $108.30 USD | View product → | |
| 17 | 45131-LFB5-C00 | PIN BOLT | 2 | $39.57 USD | View product → | |
| 18 | 45132-1F66-C00 | BUSH BOOT PIN | 1 | $32.10 USD | View product → | |
| 19 | 45133-MCA3-C00 | BOOT B | 1 | $10.95 USD | View product → | |
| 20 | 45150-LKG2-306 | PAD ASSY | 1 | $117.36 USD | View product → | |
| 21 | 45200-AEB9-E00-NEA | CALIPER ASSY FR BRK | 1 | $300.09 USD | View product → | |
| 22 | 45209-GBE2-C00 | SEAL PISTON | 4 | $25.08 USD | View product → | |
| 23 | 45215-KECE-900 | PIN HANGER | 2 | $18.57 USD | View product → | |
| 24 | 45500-AEB9-M30 | SUB ASSY FR BRK | 1 | $345.66 USD | View product → | |
| 25 | 45517-KFAF-910 | HOLDER M/C | 1 | $17.43 USD | View product → | |
| 26 | 45517-KFAF-910(wrong) | HOLDER M/C | 1 | $13.41 USD | View product → | |
| 27 | 45531-GAR1-C00 | PLUG | 2 | $5.85 USD | View product → | |
| 28 | 49100-AED9-E10 | MODULATOR ASSY ABS | 1 | $1334.26 USD | View product → | |
| 29 | 49110-AEB9-E00 | ABS STAY | 1 | $13.86 USD | View product → | |
| 30 | 49211-LFH1-C00 | RUBBER BUSH | 2 | $1.65 USD | View product → | |
| 31 | 51430-LGE5-C00 | SLIDE PAD | 1 | $23.13 USD | View product → | |
| 32 | 52407-LLB1-C00 | RUBBER BUSH | 1 | $0.99 USD | View product → | |
| 33 | 53175-KFA5-E11-M3A | LEVER R STRG HANDLE | 1 | $44.31 USD | View product → | |
| 34 | 53178-KFC8-E11-M3A | LEVER L STRG HANDLE | 1 | $38.94 USD | View product → | |
| 35 | 90113-LGE5-C01 | BOLT FLANGE 6*20 ABS | 1 | $2.61 USD | View product → | |
| 36 | 90114-1F66-C00 | BOLT HANDLE LEVER | 2 | $3.96 USD | View product → | |
| 37 | 90114-LGE5-C01 | BOLT BLANGE SH 6*30(C) | 1 | $8.97 USD | View product → | |
| 38 | 90131-GLW0-C02 | BOLT FLANGE 8*35 | 4 | $7.50 USD | View product → | |
| 39 | 90145-LFH1-E00 | OIL BOLT 10x22 | 1 | $29.52 USD | View product → | |
| 40 | 90145-MKS9-61A | OIL BOLT 10X22 | 1 | $9.06 USD | View product → | |
| 41 | 90145-MKS9-61A(wrong) | OIL BOLT 10X22 | 1 | $11.79 USD | View product → | |
| 42 | 90545-3L00-001 | WASHER OIL BOLT | 16 | $2.91 USD | View product → | |
| 43 | 90545-3L00-001(wrong) | WASHER OIL BOLT | 16 | $3.78 USD | View product → | |
| 44 | 93600-04012-1G | SCREW FLAT 4*12 | 1 | $5.67 USD | View product → | |
