F18 — Tail Light

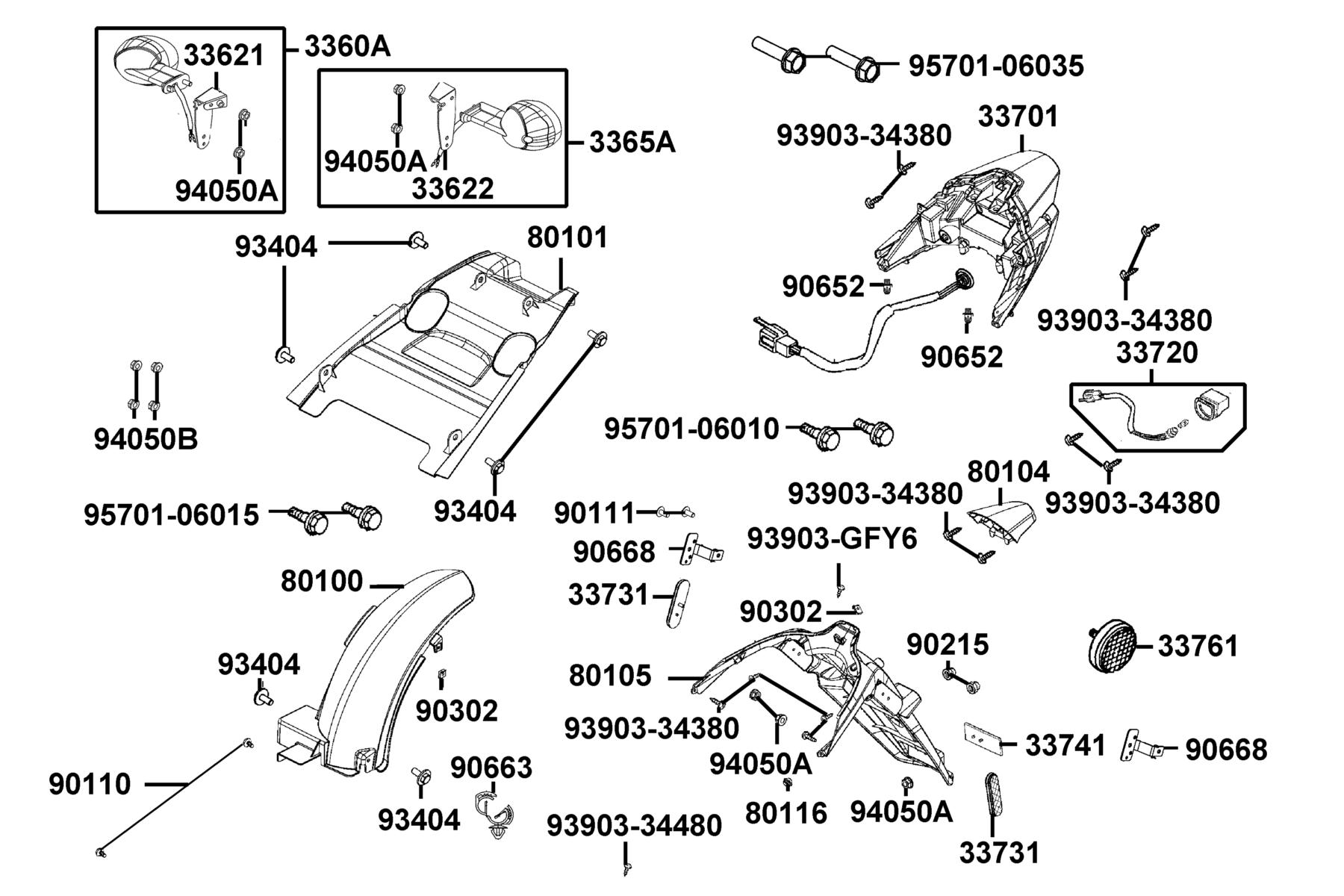

The Tail Light diagram contains 30 genuine OEM parts for the KYMCO People S 150i ABS MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3360A-AEB9-M30 | WINKER ASSY RH RR | 1 | $89.13 USD | View product → | |
| 2 | 33621-AEB9-M30 | "STAY,WINKER ASSY LL" | 1 | $38.22 USD | View product → | |
| 3 | 33622-AEB9-M30 | "STAY,WINKER ASSY RR" | 1 | $38.22 USD | View product → | |
| 4 | 3365A-AEB9-M30 | WINKER ASSY LH RR | 1 | $89.13 USD | View product → | |
| 5 | 33701-AEB9-M30 | LIGHT ASSY RR COMB | 1 | $545.52 USD | View product → | |
| 6 | 33720-LCA7-E00 | LIGHT ASSY LICENSE | 1 | $37.05 USD | View product → | |
| 7 | 33731-KGB5-EZ0 | REFLEX REFLECTOR SIDE | 2 | $12.84 USD | View product → | |
| 8 | 33741-LEH3-EZ0 | REFLEX REFLECTOR | 1 | $9.36 USD | View product → | |
| 9 | 33761-ABD2-M30 | REFLEX REFLECTOR SIDE | 2 | $26.16 USD | View product → | |
| 10 | 80100-AEB9-E00-N1R | FENDER RR TIRE | 1 | $25.59 USD | View product → | |
| 11 | 80101-AEB9-E00-N1R | FENDER RR INNER | 1 | $43.47 USD | View product → | |
| 12 | 80104-AEB9-E00-N1R | "COVER,LIGHT ASSY LICENSE" | 1 | $8.76 USD | View product → | |
| 13 | 80105-AEB9-M30-N1R | FENDER RR | 1 | $48.03 USD | View product → | |
| 14 | 80116-ACC1-E10 | RUBBER LICENSE PLATE STOP | 1 | $1.32 USD | View product → | |
| 15 | 90110-GLW0-C00 | SCREW SPECIAL 6*14(CR) | 2 | $8.16 USD | View product → | |
| 16 | 90111-KED9-C00 | BAR STEP R ASSY | 2 | — | Part details → | |
| 17 | 90215-KKC4-C00 | NUT CAP 6MM | 2 | $9.18 USD | View product → | |
| 18 | 90302-SDA4-C01 | NUT SPRING 4MM | 1 | $0.99 USD | View product → | |
| 19 | 90652-LFB5-C00 | CLIP MUDGUARD | 2 | $2.31 USD | View product → | |
| 20 | 90663-AEB9-C00 | CLIP | 1 | $2.64 USD | View product → | |
| 21 | 90668-LDC8-E10 | STAY SIDE REFLECTOR | 2 | $31.11 USD | View product → | |
| 22 | 93404-06012-07G | 0 | 4 | $1.32 USD | View product → | |
| 23 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 13 | $2.73 USD | View product → | |
| 24 | 93903-34480-G | SCREW TAPPING 4*16 (K) | 1 | $4.65 USD | View product → | |
| 25 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 1 | $4.92 USD | View product → | |
| 26 | 94050-05080-G | NUT FLANGE 5MM | 13 | $0.99 USD | View product → | |
| 27 | 94050-06080-G | NUT FLANGE 6MM | 4 | $0.99 USD | View product → | |
| 28 | 95701-06010-08G | BOLT FLANGE 6*10 | 2 | $0.99 USD | View product → | |
| 29 | 95701-06015-08G | 有边缘螺丝6*15(C) 3价铬 | 2 | — | Part details → | |
| 30 | 95701-06035-08G | BOLT FLANGE 6*35 | 2 | $1.95 USD | View product → |
