E08 — Fan Cover ● Generator

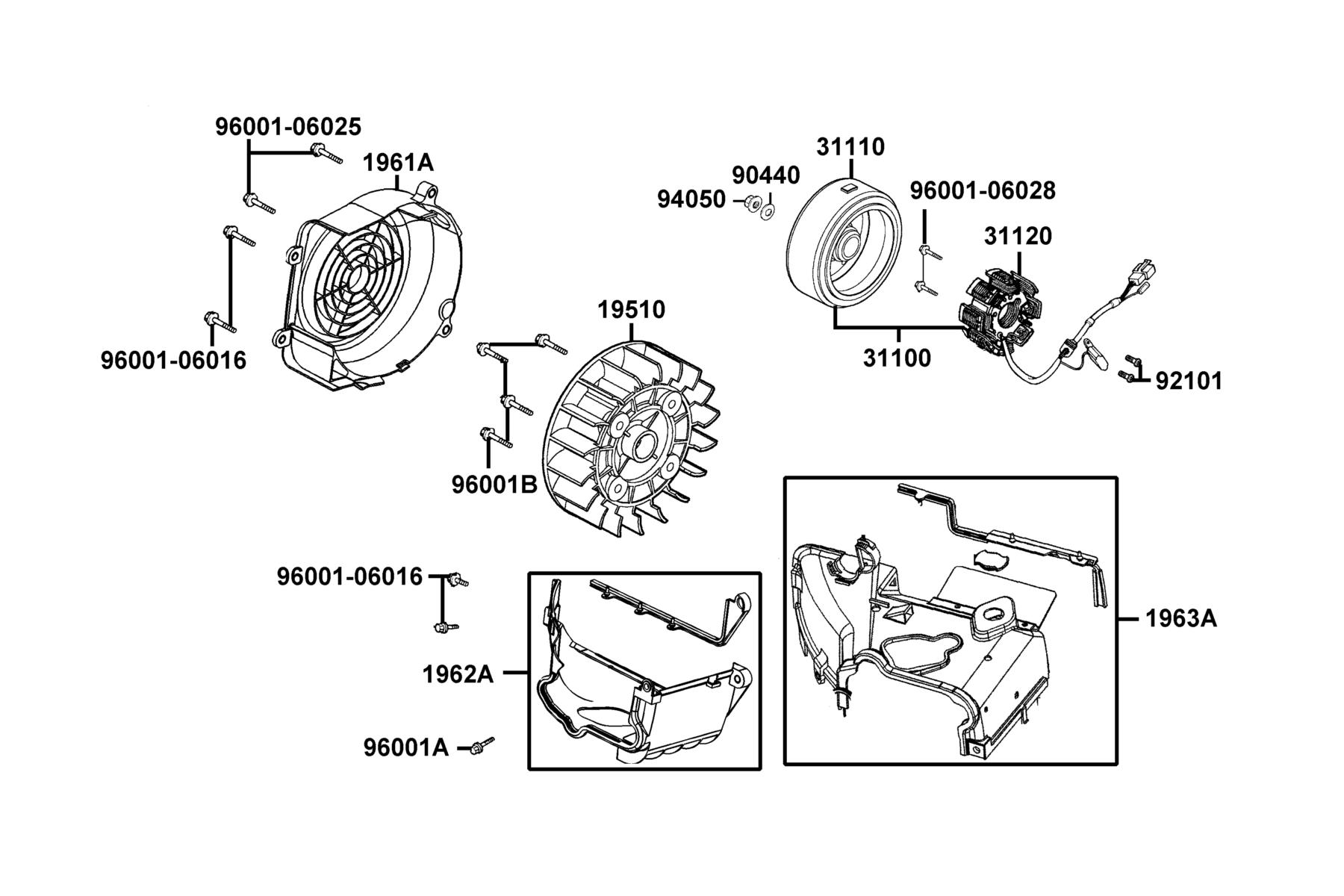

The Fan Cover ● Generator diagram contains 15 genuine OEM parts for the KYMCO New People S 150(2020~. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 19510-LEB1-C01 | FAN COMP COOLING | 1 | $28.62 USD | View product → | |
| 2 | 1961A-LEB1-C00 | COVER ASSY FAN | 1 | $29.52 USD | View product → | |
| 3 | 1962A-LKE7-C00 | SHROUD ASSY A | 1 | $70.20 USD | View product → | |
| 4 | 1963A-AEB9-E00 | SHROUD ASSY B | 1 | $48.75 USD | View product → | |
| 5 | 31100-AEB9-E00 | AC GEN ASS'Y | 1 | $352.11 USD | View product → | |
| 6 | 31110-ACC1-E10 | FLYWHEEL COMP | 1 | $168.27 USD | View product → | |
| 7 | 31120-AEB9-E00 | STATOR COMP. | 1 | $450.24 USD | View product → | |
| 8 | 90440-1F66-C00 | WASHER PLAIN 12MM | 1 | $8.85 USD | View product → | |
| 9 | 92101-05012-0HG | BOLT HEX 5*12 | 2 | $0.66 USD | View product → | |
| 10 | 94050-12080-G | NUT FLANGE 12MM (C) | 1 | $3.60 USD | View product → | |
| 11 | 96001-06016-08G | BOLT FLANGE SH 6x16 (C) | 4 | $0.99 USD | View product → | |
| 12 | 96001-06018-07G | BOLT FLANGE 6*18 | 4 | — | Part details → | |
| 13 | 96001-06022-08G | BOLT FLANGE SH 6*22 (C) | 1 | $0.99 USD | View product → | |
| 14 | 96001-06025-08G | BOLT FLANGE SH 6*25 (C) | 2 | $0.99 USD | View product → | |
| 15 | 96001-06028-07G | BOLT FLANGE SH 6*28 (G) | 2 | $1.65 USD | View product → |
