F13 — Air Cleaner

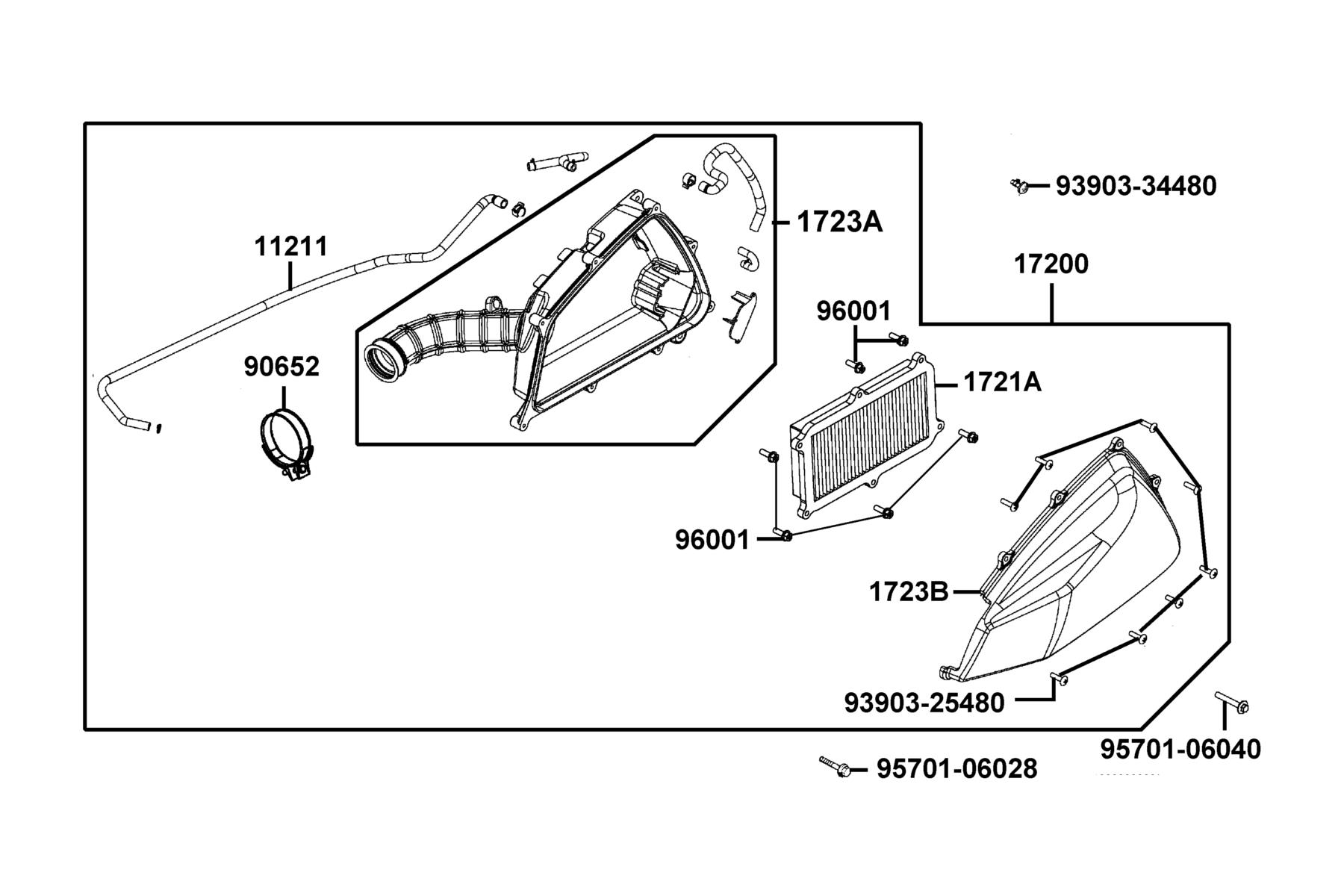

The Air Cleaner diagram contains 12 genuine OEM parts for the KYMCO New People S 150(2020~. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11211-AEB9-E00 | TUBE BREATHER | 1 | $40.62 USD | View product → | |
| 2 | 17200-AEB9-M30 | AIR/C ASSY | 1 | $229.02 USD | View product → | |
| 3 | 1721A-AEB9-E00 | ELENENT ASSY AIR/C | 1 | $41.82 USD | View product → | |
| 4 | 1723A-AEB9-E00 | CASE ASSY AIR/C | 1 | $277.02 USD | View product → | |
| 5 | 1723B-AEB9-E00 | COVER AIR | 1 | $159.39 USD | View product → | |
| 6 | 90652-GFY6-901 | BAND 49 AIR/C CONNECTING TUBE | 1 | $10.14 USD | View product → | |
| 7 | 90652-GFY6-901(wrong) | BAND 49 AIR/C CONNECTING TUBE | 1 | $13.17 USD | View product → | |
| 8 | 93903-25480 | SCREW TAPPING 5*20 **93903-25460 C.P.N. | 1 | $4.92 USD | View product → | |
| 9 | 93903-34480-G | SCREW TAPPING 4*16 (K) | 1 | $4.65 USD | View product → | |
| 10 | 95701-06028-07G | BOLT FLANGE 6X28(KG) | 1 | $4.65 USD | View product → | |
| 11 | 95701-06040-07G | BOLT FLANGE 6*40 (K) | 1 | $4.65 USD | View product → | |
| 12 | 96001-LAB4-900 | BOLT SPECIAL M5X16 | 1 | $4.92 USD | View product → |
