F05 — Front Cover ● Front Fender

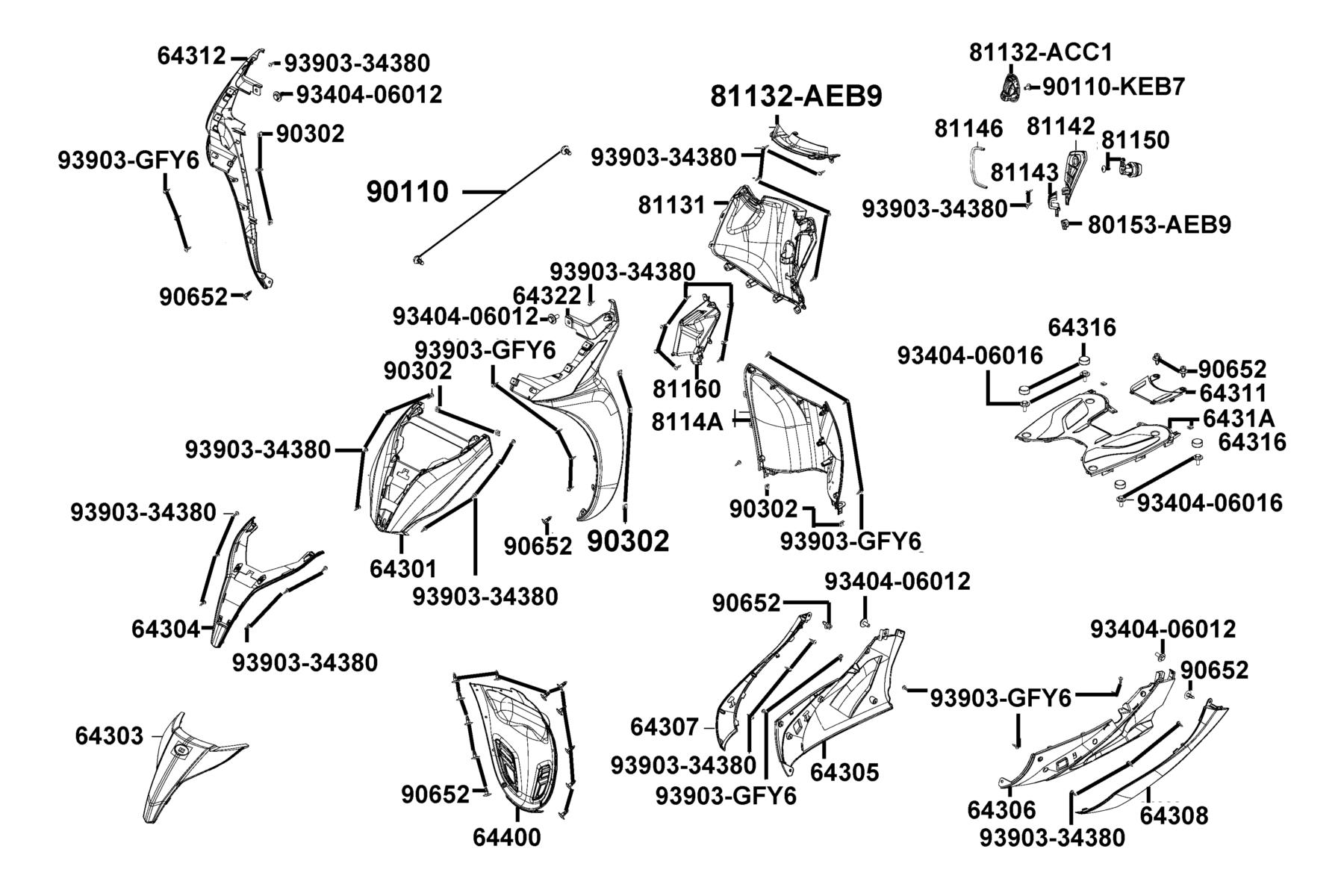

The Front Cover ● Front Fender diagram contains 31 genuine OEM parts for the KYMCO New People S 150(2020~. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 64301-AEB9-E00-N1P | COVER FR | 1 | $100.02 USD | View product → | |
| 2 | 64303-AEB9-E00-85P | "COVER,FR TOP A" | 1 | $75.54 USD | View product → | |
| 3 | 64304-AEB9-E00-F1P | COVER,FR TOP B | 1 | $139.47 USD | View product → | |
| 4 | 64305-AEB9-E00-D0M | "SKIRT A, R SIDE" | 1 | $92.97 USD | View product → | |
| 5 | 64306-AEB9-E00-D0M | "SKIRT A, L SIDE" | 1 | $92.97 USD | View product → | |
| 6 | 64307-AEB9-E00-N1P | SKIRT B R SIDE | 1 | $75.93 USD | View product → | |
| 7 | 64308-AEB9-E00-N1P | SKIRT B L SIDE | 1 | $78.99 USD | View product → | |
| 8 | 64311-AEB9-E00-N1R | "COVER, PUMP" | 1 | $8.76 USD | View product → | |
| 9 | 64312-AEB9-E00-N1P | "MOLDING, R FR" | 1 | $95.10 USD | View product → | |
| 10 | 64316-LCB9-C10-N1R | PLUG FLOOR (Black) | 4 | $6.09 USD | View product → | |
| 11 | 6431A-AEB9-E00-N1R | FLOOR PANEL | 1 | $39.30 USD | View product → | |
| 12 | 64322-AEB9-E00-N1P | "MOLDING, L FR." | 1 | $95.10 USD | View product → | |
| 13 | 64400-AEB9-E00-N1R | COWL UNDER | 1 | $31.41 USD | View product → | |
| 14 | 80153-AEB9-E00 | "STAY , LID INNER BOX" | 1 | $3.33 USD | View product → | |
| 15 | 81131-AEB9-E00-N1P | LEG SHIELD | 1 | $111.57 USD | View product → | |
| 16 | 81132-ACC1-C00 | HOOK LUGGAGE | 1 | $5.04 USD | View product → | |
| 17 | 81132-AEB9-E00-N1P | "0 CAP , LEG SHIELD UP" | 1 | $30.18 USD | View product → | |
| 18 | 81142-AEB9-E00-N1P | LID PUSH PRESS | 1 | $56.94 USD | View product → | |
| 19 | 81143-AEB9-E00 | HINGE COVER LEGSHIE | 1 | $24.36 USD | View product → | |
| 20 | 81146-AEB9-E00 | SEAL INNER BOX | 1 | $2.70 USD | View product → | |
| 21 | 8114A-AEB9-E00-N1R | LEG SHIELD LOW | 1 | $43.26 USD | View product → | |
| 22 | 81150-ZZA6-E00 | LOCKLESS ASSY | 1 | $22.65 USD | View product → | |
| 23 | 81160-AEB9-E00-N1R | FR INNER BOX | 1 | $20.79 USD | View product → | |
| 24 | 90110-GLW0-C00 | SCREW SPECIAL 6*14(CR) | 1 | $8.16 USD | View product → | |
| 25 | 90110-KEB7-C01 | SCREW SPECIAL 6*14 | 1 | $4.92 USD | View product → | |
| 26 | 90302-SDA4-C01 | NUT SPRING 4MM | 16 | $0.99 USD | View product → | |
| 27 | 90652-LFB5-C00 | CLIP MUDGUARD | 24 | $2.31 USD | View product → | |
| 28 | 93404-06012-07G | 0 | 1 | $1.32 USD | View product → | |
| 29 | 93404-06016-08G | BOLT WASHER 6*16 | 4 | $1.65 USD | View product → | |
| 30 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 1 | $2.73 USD | View product → | |
| 31 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 1 | $4.92 USD | View product → |
