F06 — Stem Steering

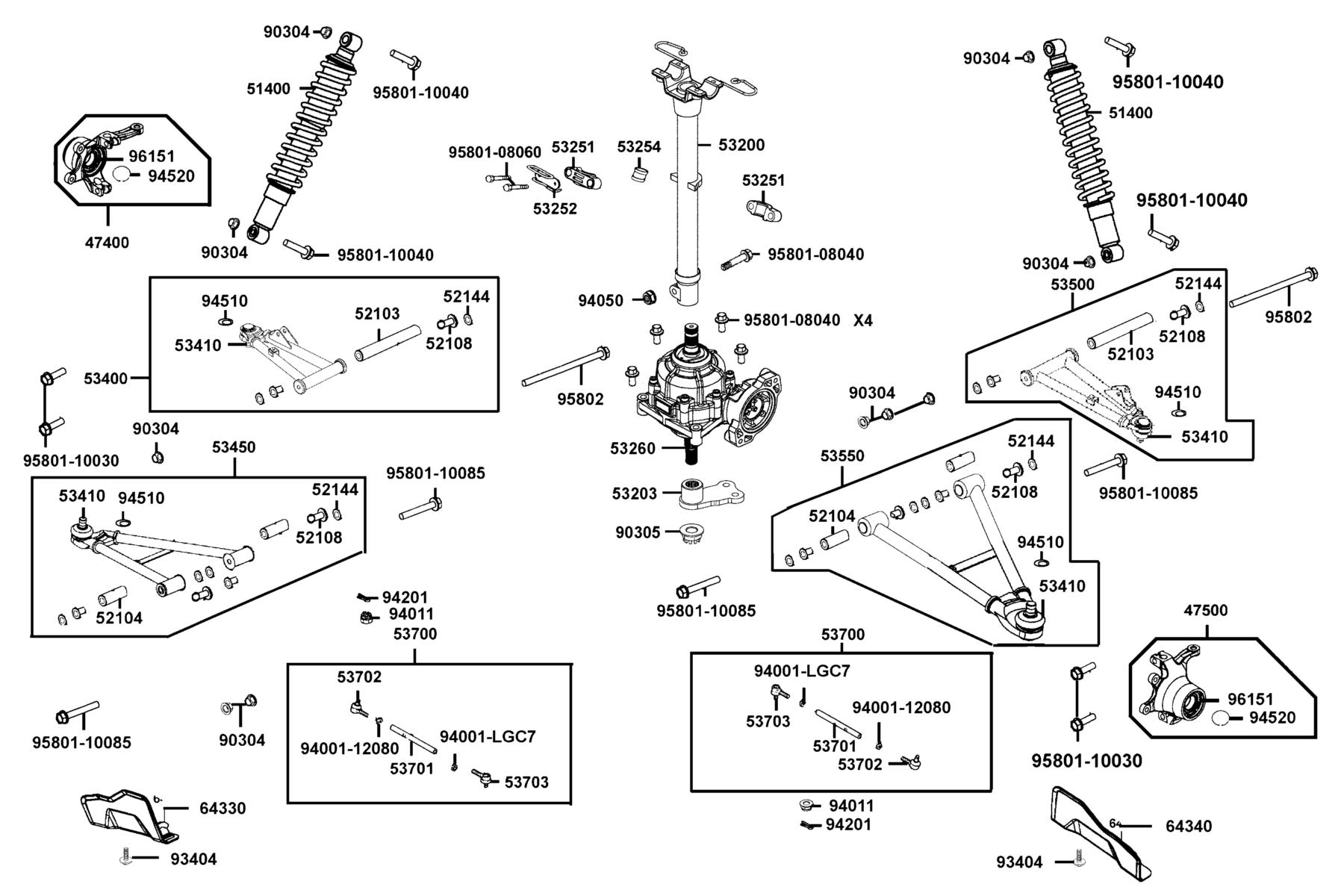

The Stem Steering diagram contains 42 genuine OEM parts for the KYMCO MXU 700i EPS(2018). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3943A-AAJ5-E00 | TORQUE SENSOR ASS'Y EPS (MAKER:MEXICO) | 1 | — | Part details → | |
| 2 | 47400-PWB1-900 | KNUCKLE STEERING-RH ASSEMBLY | 1 | $208.62 USD | View product → | |
| 3 | 47500-PWB1-900 | KNUCKLE STEERING-LH ASSEMBLY | 1 | $208.62 USD | View product → | |
| 4 | 51400-ALC1-E00-MAS | CUSHION ASSY FR (BLACK) | 2 | $389.07 USD | View product → | |
| 5 | 52103-ALC1-E00 | SLEEVE SUSPENSION | 2 | $65.10 USD | View product → | |
| 6 | 52104-PWB1-900 | SLEEVE SUSPENSION | 4 | $22.98 USD | View product → | |
| 7 | 52108-PWB1-900 | BUSHING SUSPENSION | 12 | $11.31 USD | View product → | |
| 8 | 52144-PWB1-900 | SEAL SUSPENSION | 12 | $12.09 USD | View product → | |
| 9 | 53200-AAJ5-E00 | STEERING POST EPS | 1 | $168.33 USD | View product → | |
| 10 | 53203-AAJ5-E00 | PITMAN ARM ASSY. | 1 | $76.68 USD | View product → | |
| 11 | 53251-LCA5-E00 | HOLDER STEM STEERING | 2 | $24.96 USD | View product → | |
| 12 | 53252-LBA7-900 | CLAMPER STEM HOLDER | 1 | $18.72 USD | View product → | |
| 13 | 53254-LBA7-900 | SLEEVE STEM | 1 | $9.39 USD | View product → | |
| 14 | 53260-AAJ5-E01 | EPS ASSY | 1 | $789.36 USD | View product → | |
| 15 | 53400-ALC1-E01-MAS | A-ARM ASSY FRONT UPPER R | 1 | $379.50 USD | View product → | |
| 16 | 53410-PRB1-900 | BALL JOINT ASSY | 1 | $166.11 USD | View product → | |
| 17 | 53450-ALC1-E01-MAS | A-ARM ASSY FRONT LOWER R | 1 | $318.78 USD | View product → | |
| 18 | 53500-ALC1-E01-MAS | A-ARM ASSY FRONT UPPER L | 1 | $328.35 USD | View product → | |
| 19 | 53550-ALC1-E01-MAS | A-ARM ASSY FRONT LOWER L | 1 | $81.78 USD | View product → | |
| 20 | 53700-ALC1-E00 | TIE ROD ASSY | 2 | $187.71 USD | View product → | |
| 21 | 53701-ALC1-E00 | TIE ROD | 2 | $168.33 USD | View product → | |
| 22 | 53702-ALC1-E00 | JOINT R BALL | 2 | $151.77 USD | View product → | |
| 23 | 53703-ALC1-E00 | JOINT L BALL | 2 | $151.77 USD | View product → | |
| 24 | 64330-LFE9-E01-N1R | GUARD R BOOT (Black) | 1 | $25.86 USD | View product → | |
| 25 | 64340-LFE9-E01-N1R | GUARD L BOOT (Black) | 1 | $33.72 USD | View product → | |
| 26 | 90304-GLW0-90A | NUT U FLANGE 10MM | 10 | $9.39 USD | View product → | |
| 27 | 90305-KNBN-90B | NUT U 16MM | 1 | $24.99 USD | View product → | |
| 28 | 93404-06016-06 | BOLT WASHER 6*16 | 2 | $7.89 USD | View product → | |
| 29 | 94001-12080 | NUT HEX 12MM | 2 | $23.31 USD | View product → | |
| 30 | 94001-LGC7-E00 | NUT HEX LH 12MM | 2 | $23.31 USD | View product → | |
| 31 | 94011-LKA8-E00 | NUT CASTLE 10MM | 4 | $21.99 USD | View product → | |
| 32 | 94050-08060 | NUT FLANGE 8MM | 1 | $5.31 USD | View product → | |
| 33 | 94201-25250 | PIN SPLIT 2.5*25 | 4 | $1.86 USD | View product → | |
| 34 | 94510-PWB1-900 | CIRCLIP EX 29 | 4 | $5.31 USD | View product → | |
| 35 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → | |
| 36 | 95801-08040-06 | BOLT FLANGE 8*40 | 5 | $6.54 USD | View product → | |
| 37 | 95801-08060-06 | BOLT FLANGE 8*60 | 2 | $11.31 USD | View product → | |
| 38 | 95801-10030-06 | BOLT FLANGE 10X30 | 4 | $16.68 USD | View product → | |
| 39 | 95801-10040-06 | BOLT FLANGE 10X40 | 1 | $21.60 USD | View product → | |
| 40 | 95801-10085-06 | BOLT FLANGE 10*85 | 4 | $19.59 USD | View product → | |
| 41 | 95802-PWB1-900 | SCREW CAP-HFH M10X1.25X180 | 2 | $43.56 USD | View product → | |
| 42 | 96151-PWB1-900 | BEARING WHEEL | 2 | $160.56 USD | View product → |
