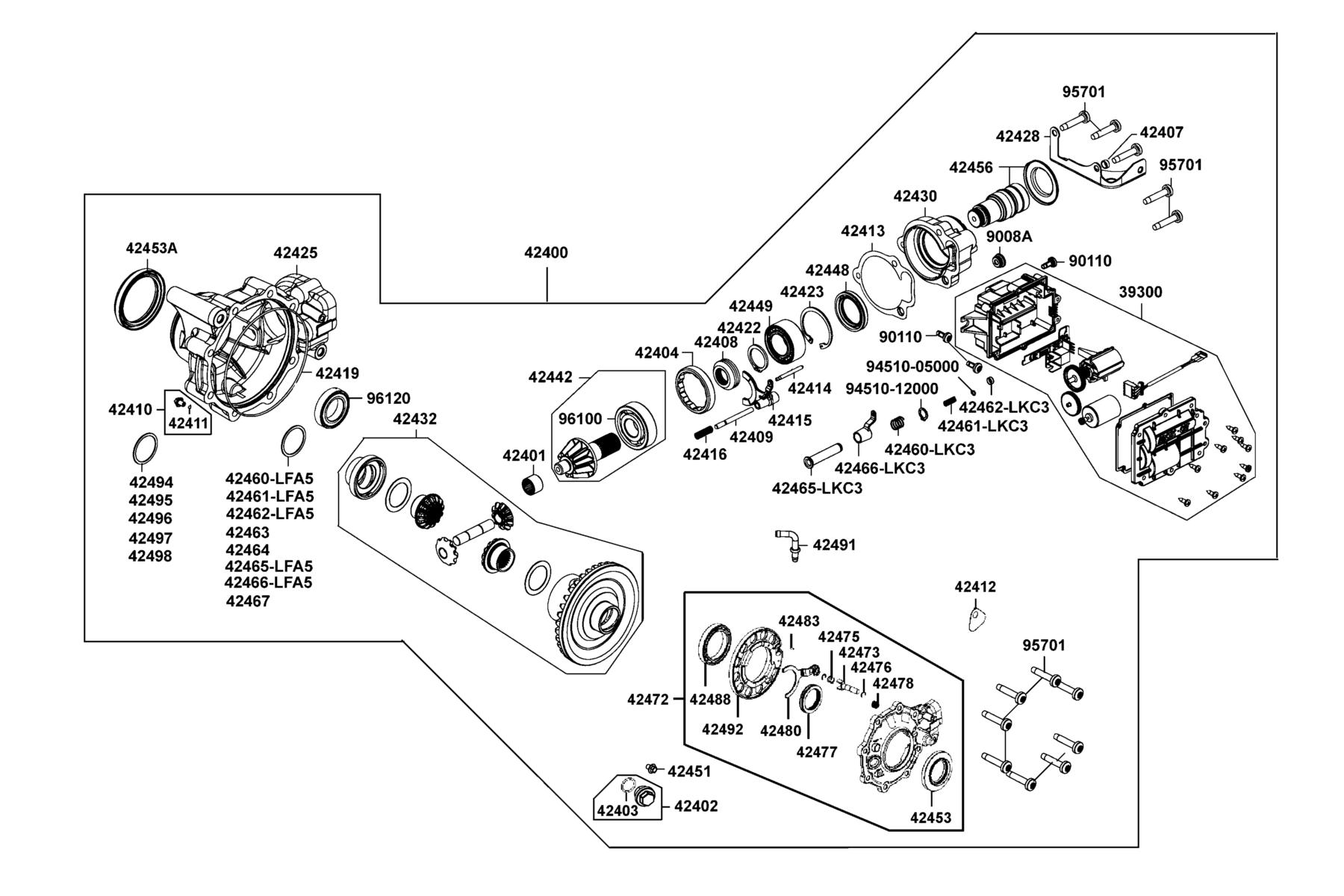

F26 — Separated Parts Of Fr Final Differential
The Separated Parts Of Fr Final Differential diagram contains 65 genuine OEM parts for the KYMCO MXU 700i EPS(2018). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 39300-LKC3-500 | ACTUATOR | 1 | $410.13 USD | View product → | |
| 2 | 42400-LKA8-500 | E-LOCK GEARCASE FRONT 3.6 | 1 | $1321.02 USD | View product → | |
| 3 | 42401-LFA5-90B | BEARING.NEEDLE(16NQ2316) | 1 | $53.16 USD | View product → | |
| 4 | 42402-LFA5-900 | PLUG FILL | 1 | $110.16 USD | View product → | |
| 5 | 42403-PWB1-900 | O-RING 20X2.5MM | 1 | $11.46 USD | View product → | |
| 6 | 42404-LFA5-900 | COLLAR LOCK M64X1.5 RH | 1 | $125.97 USD | View product → | |
| 7 | 42407-LFA5-900 | PIN DOWEL | 1 | $32.73 USD | View product → | |
| 8 | 42408-LKC3-500 | COUPLER DRIVE | 1 | $120.06 USD | View product → | |
| 9 | 42409-LKC3-500 | SHAFT E-LOCK SELECTOR | 1 | $89.34 USD | View product → | |
| 10 | 42410-LFA5-900 | PLUG DRAIN MAG | 1 | $75.12 USD | View product → | |
| 11 | 42411-LFA5-900 | O-RING 6*1.5 | 1 | $13.77 USD | View product → | |
| 12 | 42412-LFA5-900 | TAG ID GEARCASE | 1 | $10.14 USD | View product → | |
| 13 | 42413-LKC3-500 | GASKET FLANGE | 1 | $39.81 USD | View product → | |
| 14 | 42414-LKC3-500 | SHAFT. SELECTOR | 1 | $30.12 USD | View product → | |
| 15 | 42415-LKC3-500 | FORK SELECTOR | 1 | $116.13 USD | View product → | |
| 16 | 42416-LKC3-500 | COLLAR ACTUATOR | 1 | $6.78 USD | View product → | |
| 17 | 42419-LKC3-500 | GASKET HOUSING | 1 | $26.37 USD | View product → | |
| 18 | 42422-LFA5-900 | RING RETAINING ONE | 1 | $28.35 USD | View product → | |
| 19 | 42423-LFA5-900 | RING RETAINING | 1 | $32.10 USD | View product → | |
| 20 | 42425-LKA8-500 | HOUSING GEARCASE-FRONT MACH | 1 | $475.26 USD | View product → | |
| 21 | 42428-LKC3-500 | BRACKET ACTUATOR-WELDMENT | 1 | $39.39 USD | View product → | |
| 22 | 42430-LKC3-500 | HOUSING???PINION-MACH | 1 | $112.56 USD | View product → | |
| 23 | 42432-LEE8-810 | E-LOCK.OPEN TYPE GEARCASE FRONT(3.6).ASSY | 1 | $549.09 USD | View product → | |
| 24 | 42442-LKC3-500 | PINION(10 TOOTH)-ASSEMBLY | 1 | $207.18 USD | View product → | |
| 25 | 42448-LFA5-900 | SEAL 38*55*14 | 1 | $49.26 USD | View product → | |
| 26 | 42449-LFA5-90B | BEARING.BALL-DOUBLE ROW | 1 | $127.92 USD | View product → | |
| 27 | 42451-LFA5-900 | PLUG OIL LEVEL | 1 | $47.76 USD | View product → | |
| 28 | 42453-LGC3-900 | OIL SEAL 48*84*9 | 2 | $87.45 USD | View product → | |
| 29 | 42456-LKM8-510 | SHAFT INPUT ASSEMBLY | 1 | $145.65 USD | View product → | |
| 30 | 42460-LFA5-900 | SHIM 41*49*1.0 | 1 | $20.64 USD | View product → | |
| 31 | 42460-LKC3-500 | SPRING A E-LOCK | 1 | $4.92 USD | View product → | |
| 32 | 42461-LFA5-900 | SHIM 41*49*1.1 | 1 | $20.64 USD | View product → | |
| 33 | 42461-LKC3-500 | SPRING B E-LOCK | 1 | $5.67 USD | View product → | |
| 34 | 42462-LFA5-900 | SHIM 41*49*1.2 | 1 | $18.57 USD | View product → | |
| 35 | 42462-LKC3-500 | CAP E-LOCK | 1 | $7.17 USD | View product → | |
| 36 | 42463-LFA5-900 | SHIM 41*49*1.3 | 1 | $20.64 USD | View product → | |
| 37 | 42464-LFA5-900 | SHIM 41*49*1.4 | 1 | $20.64 USD | View product → | |
| 38 | 42465-LFA5-900 | SHIM 41*49*1.5 | 1 | $20.64 USD | View product → | |
| 39 | 42465-LKC3-500 | SHAFT SELECTOR | 1 | $230.31 USD | View product → | |
| 40 | 42466-LFA5-900 | SHIM 41*49*1.6 | 1 | $20.64 USD | View product → | |
| 41 | 42466-LKC3-500 | STAY..SELECTOR | 1 | $53.76 USD | View product → | |
| 42 | 42467-LFA5-900 | SHIM 41*49*1.7 | 1 | $20.64 USD | View product → | |
| 43 | 42472-LKC3-500 | COVEFR LOCK ASSY | 1 | $524.25 USD | View product → | |
| 44 | 42473-LKC3-500 | SHAFT E-LOCK | 1 | $44.07 USD | View product → | |
| 45 | 42475-LEE8-E00 | SPRING | 1 | $1.95 USD | View product → | |
| 46 | 42476-LEE8-E00 | RING PETAINING | 1 | $0.99 USD | View product → | |
| 47 | 42477-LEE8-E00 | COLLAR SLDING LOCK | 1 | $38.49 USD | View product → | |
| 48 | 42478-LEE8-E00 | SPRING SHAFT | 1 | $0.30 USD | View product → | |
| 49 | 42480-LKC3-500 | FORK E-LOCK | 1 | $44.67 USD | View product → | |
| 50 | 42483-LEE8-E00 | PIN PARALLEL | 1 | $4.26 USD | View product → | |
| 51 | 42488-LEE8-E00 | BEARING BALL | 1 | $260.82 USD | View product → | |
| 52 | 42491-LEE8-E00 | BARB 90 | 1 | $21.30 USD | View product → | |
| 53 | 42492-LKC3-500 | FLANGE BEARING MACH | 1 | $53.79 USD | View product → | |
| 54 | 42494-LEE8-E00 | SHIM 61*69*1.3mm | 1 | $25.89 USD | View product → | |
| 55 | 42495-LEE8-E00 | SHIM 61*69*1.4mm | 1 | $25.89 USD | View product → | |
| 56 | 42496-LEE8-E00 | SHIM 61*69*1.5mm | 1 | $25.89 USD | View product → | |
| 57 | 42497-LEE8-E00 | SHIM 61*69*1.6mm | 1 | $25.89 USD | View product → | |
| 58 | 42498-LEE8-E00 | SHIM 61*69*1.7 mm | 1 | $25.89 USD | View product → | |
| 59 | 9008A-LKC3-500 | CAP ASSY E-LOCK | 1 | $25.35 USD | View product → | |
| 60 | 90110-LFA5-900 | BOLT SPECIAL 6X12 | 3 | $25.35 USD | View product → | |
| 61 | 94510-05000 | CIR CLIP EX5 | 3 | $13.95 USD | View product → | |
| 62 | 94510-12000 | CIR CLIP EXTERNAL 12 | 1 | $4.92 USD | View product → | |
| 63 | 95701-08040-06 | BOLT FLANGE 8X40 | 11 | $9.06 USD | View product → | |
| 64 | 96100-63050-00 | BRG BALL RADIAL 6305 | 1 | $49.86 USD | View product → | |
| 65 | 96120-60080-00 | BEARING BALL 6008Z | 1 | $130.89 USD | View product → |
