F18 — Disk Assy Rr Brk

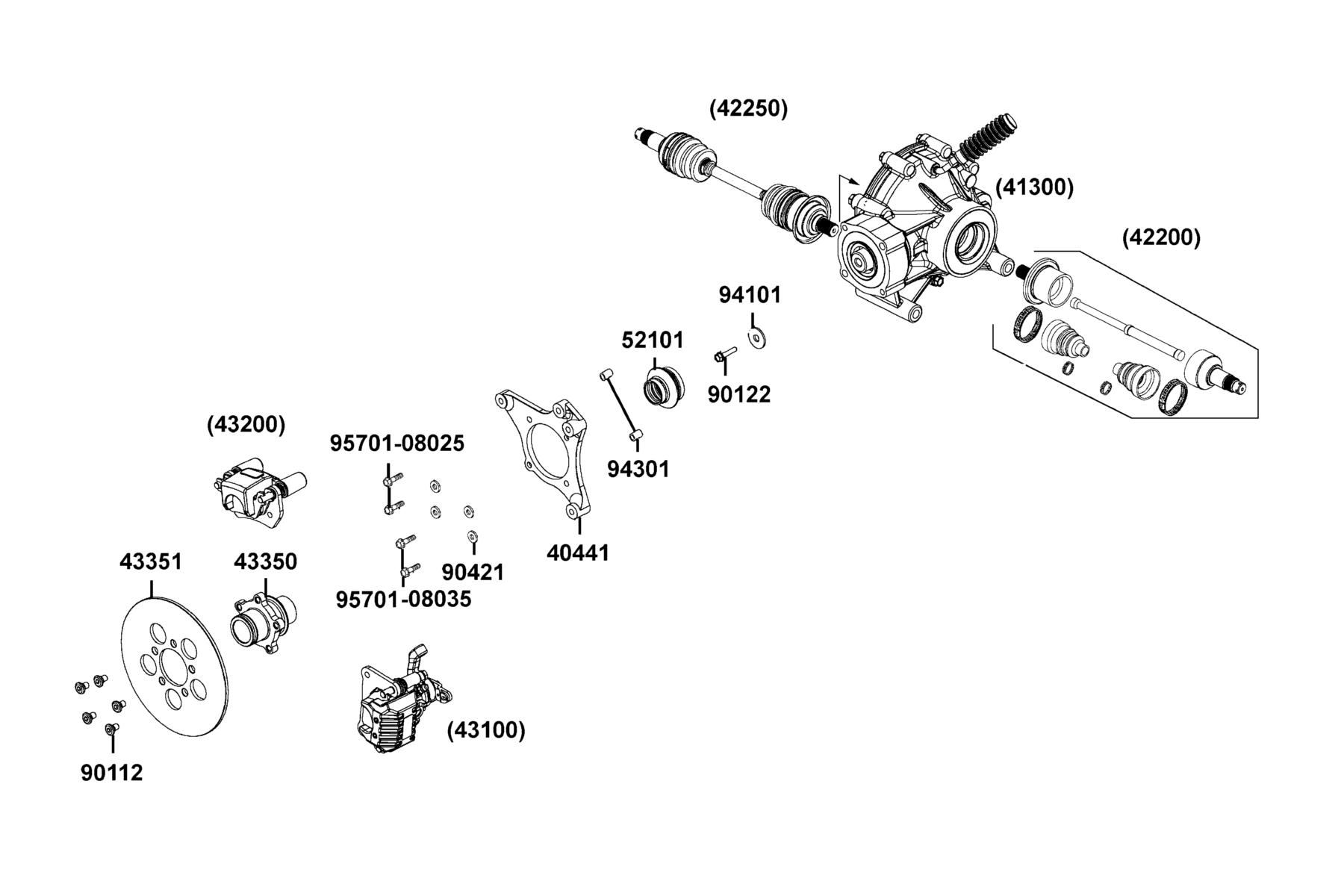

The Disk Assy Rr Brk diagram contains 11 genuine OEM parts for the KYMCO MXU 700i EPS(2018). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 40441-LFE9-E00 | BRACKET CALIPER | 1 | $164.85 USD | View product → | |
| 2 | 43350-LFE9-E00 | HOLDER DISK RR BRK | 1 | $225.09 USD | View product → | |
| 3 | 43351-LEE8-E00 | DISK RR BRK | 1 | $126.54 USD | View product → | |
| 4 | 52101-LFE9-E00 | BOOT RR PROPELLER SHAFT | 1 | $41.97 USD | View product → | |
| 5 | 90112-LBD4-800 | BOLT DISK | 5 | $11.91 USD | View product → | |
| 6 | 90122-LKA8-E00 | BOLT FLANGE 10x20 | 2 | $19.26 USD | View product → | |
| 7 | 90421-KAM1-004 | WASHER SEALING 8*16*1.6 | 4 | $4.92 USD | View product → | |
| 8 | 94101-10800 | WASHER PLAIN 10MM | 1 | $2.61 USD | View product → | |
| 9 | 94301-10120 | DOWEL PIN 10*12 | 2 | $2.73 USD | View product → | |
| 10 | 95701-08025-06 | BOLT FLANGE 8*25 | 2 | $5.31 USD | View product → | |
| 11 | 95701-08035-06 | BOLT FLANGE 8*35 | 2 | $5.88 USD | View product → |
