F10 — Fuel Tank

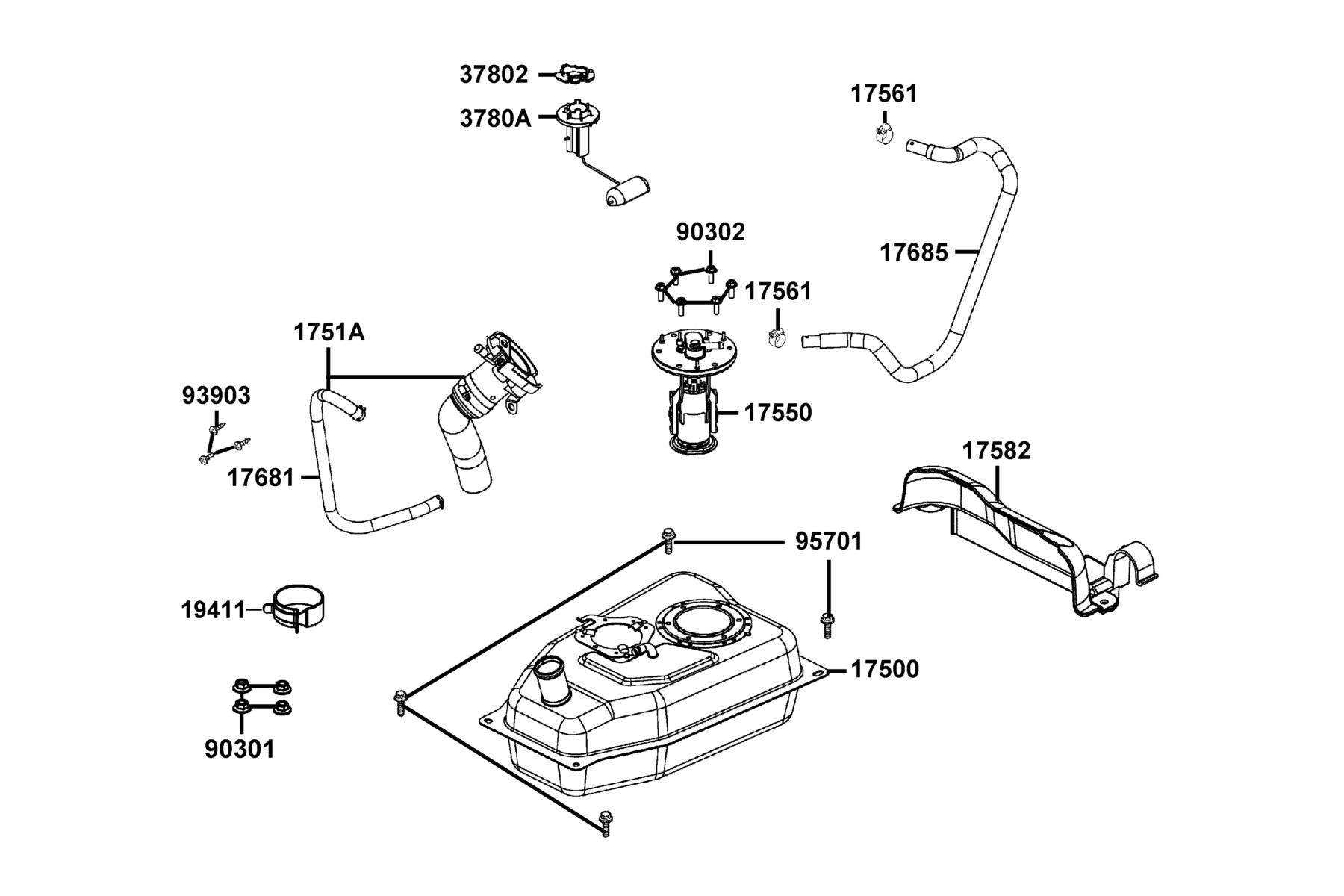

The Fuel Tank diagram contains 14 genuine OEM parts for the KYMCO People S 150i ABS(2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17500-AEB9-E00 | TANK COMP FUEL | 1 | $171.30 USD | View product → | |
| 2 | 1751A-AEB9-M30 | FUEL PIPE ASSY | 1 | $194.61 USD | View product → | |
| 3 | 17550-AAB6-E15 | FUEL PUMP ASSY | 1 | $490.77 USD | View product → | |
| 4 | 17561-LGK8-900 | CLIP 12.0 | 2 | $22.17 USD | View product → | |
| 5 | 17582-AEB9-E00-N1R | HEAT GUARD FUEL TANK | 1 | $29.61 USD | View product → | |
| 6 | 17681-AEB9-M30 | HOSE FUEL | 1 | $38.22 USD | View product → | |
| 7 | 17685-AEB9-M30 | "TUBE,FUEL" | 1 | $81.24 USD | View product → | |
| 8 | 19411-KBCB-900 | CLIP HOSE | 1 | $18.21 USD | View product → | |
| 9 | 37802-GGA7-C00 | RET FUEL UNIT | 1 | $5.22 USD | View product → | |
| 10 | 3780A-AEB9-E00 | FUEL UNIT ASSY | 1 | $56.10 USD | View product → | |
| 11 | 90301-6D34-C01 | NUT FLANGE 6MM(C) | 4 | $5.37 USD | View product → | |
| 12 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 10 | $4.65 USD | View product → | |
| 13 | 93903-35380-G | SCREW TAPPING 5*16 | 3 | $0.15 USD | View product → | |
| 14 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 4 | $0.99 USD | View product → |
