F20 — Frame Body

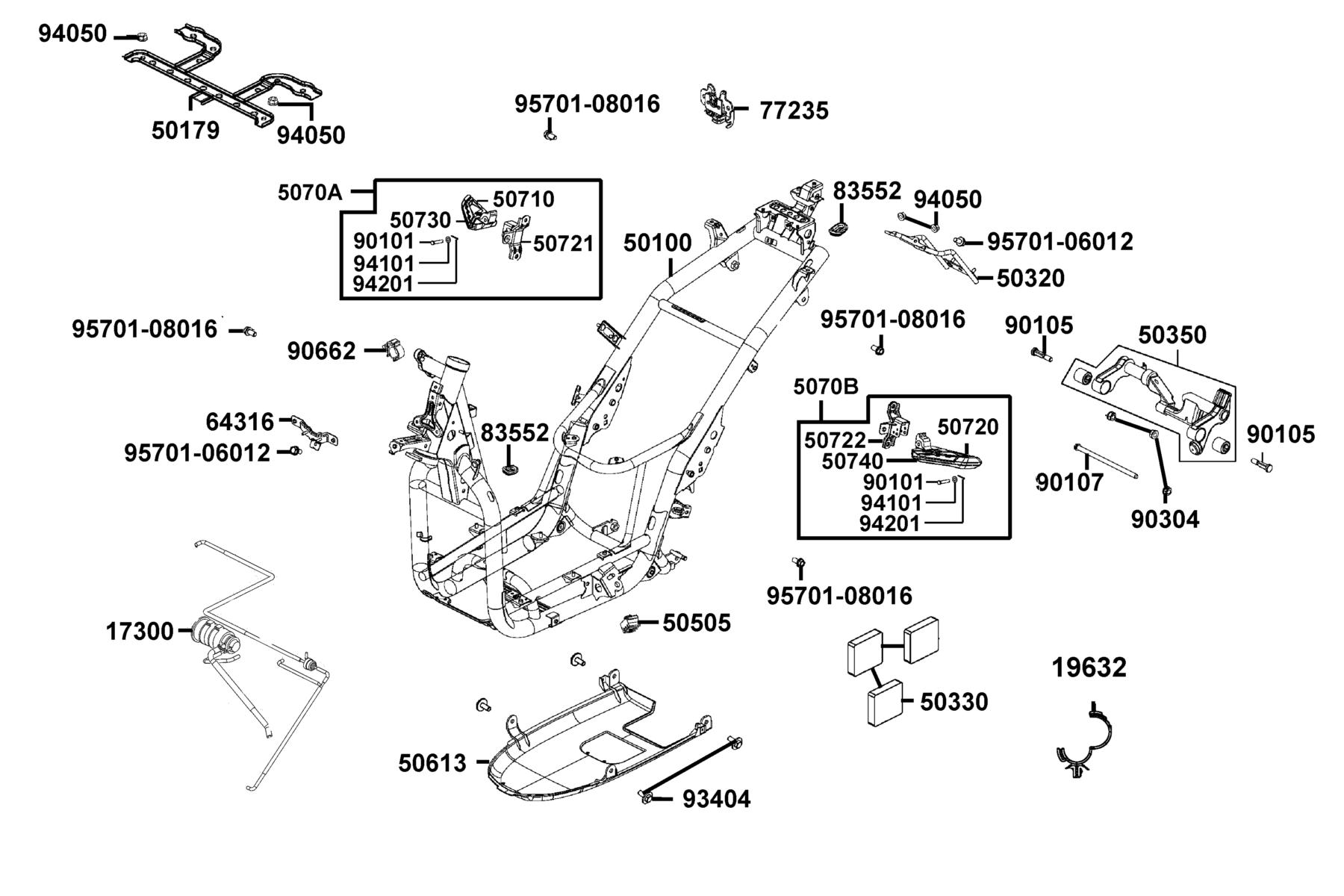

The Frame Body diagram contains 30 genuine OEM parts for the KYMCO People S 150i ABS(2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17300-AEB9-M30 | CANISTER-PCV ASSY | 1 | $227.73 USD | View product → | |
| 2 | 19632-AGE8-E60 | CLIP???FUEL HOSE | 1 | $6.75 USD | View product → | |
| 3 | 50100-AEB9-M30 | BODY COMP FRAME | 1 | $659.50 USD | View product → | |
| 4 | 50179-AEB9-E00 | BRKT FLOOR PANEL | 1 | $49.89 USD | View product → | |
| 5 | 50320-AEB9-E00 | "STAY,REAR FENDER" | 1 | $48.96 USD | View product → | |
| 6 | 50330-ALK5-C00 | SEAL BATTER FRONT | 2 | $1.65 USD | View product → | |
| 7 | 50350-LKE6-C00 | ENG HANGER COMP | 1 | $165.30 USD | View product → | |
| 8 | 50613-AEB9-E00-N1R | COVER UNDER | 1 | $40.38 USD | View product → | |
| 9 | 5070A-AEB9-E00 | ASSY.,R,RR STEP | 1 | $111.60 USD | View product → | |
| 10 | 5070B-AEB9-E00 | ASSY.,L,RR STEP | 1 | $111.60 USD | View product → | |
| 11 | 50710-AEB9-E00 | STEP R RR | 1 | $57.66 USD | View product → | |
| 12 | 50720-AEB9-E00 | STER L RR | 1 | — | Part details → | |
| 13 | 50721-AEB9-E00 | STAY R RR STERP | 1 | — | Part details → | |
| 14 | 50722-AEB9-E00 | STAY L RR STERP | 1 | — | Part details → | |
| 15 | 50730-AEB9-E00 | COVER R RR STEP | 1 | — | Part details → | |
| 16 | 50740-AEB9-E00 | COVER L RR STEP | 1 | — | Part details → | |
| 17 | 64316-AEB9-E00 | "STAY,SENSOR" | 1 | $13.74 USD | View product → | |
| 18 | 77235-LFD6-C50 | STAY HELMENT HOLDER | 1 | $36.81 USD | View product → | |
| 19 | 83552-ACC1-E10 | GROMMET COVER | 2 | $2.64 USD | View product → | |
| 20 | 90101-LHM2-C02 | SCREW TAPPPING 5*10 | 2 | — | Part details → | |
| 21 | 90105-LDC8-E11 | SQUARE BOLT M10*50 | 2 | $22.74 USD | View product → | |
| 22 | 90107-KUDU-C01 | BOLT FLANGE 10*188 | 1 | $21.03 USD | View product → | |
| 23 | 90304-PUA3-B50 | NUT U 10MM(C) | 3 | $13.62 USD | View product → | |
| 24 | 90662-LHJ3-900 | CLIP | 1 | $4.05 USD | View product → | |
| 25 | 93404-06012-07G | 0 | 4 | $1.32 USD | View product → | |
| 26 | 94050-06080-G | NUT FLANGE 6MM | 4 | $0.99 USD | View product → | |
| 27 | 94101-06000 | WASHER PLAIN 6MM | 2 | $4.92 USD | View product → | |
| 28 | 94201-16150-08G | PIN SPLIT 1.6*15 | 2 | $1.89 USD | View product → | |
| 29 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 6 | $0.99 USD | View product → | |
| 30 | 95701-08016-07G | BOLT FLANGE 8*16 (K) | 4 | $2.31 USD | View product → |
