F14 — Exhaust Muffler

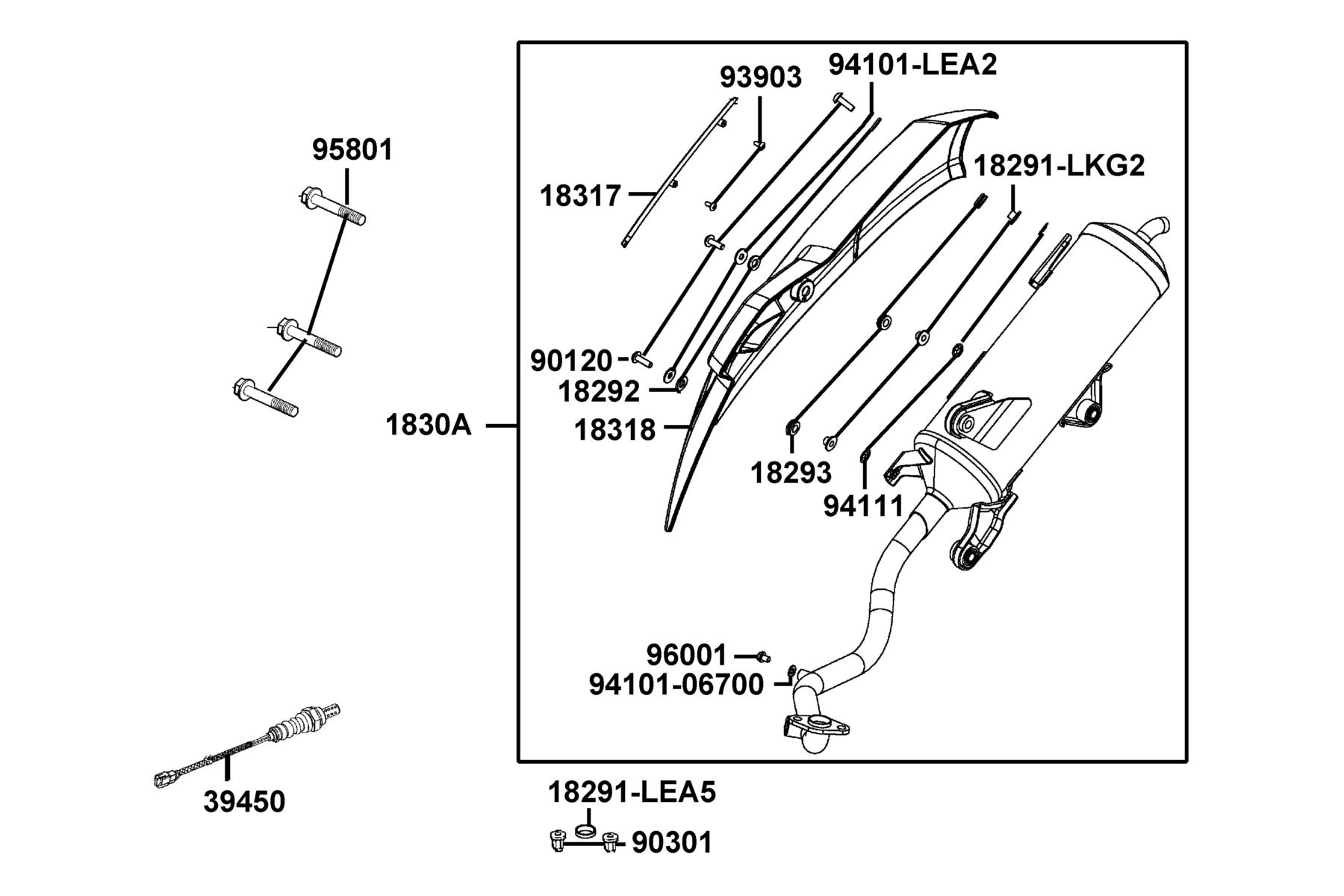

The Exhaust Muffler diagram contains 16 genuine OEM parts for the KYMCO People S 150i ABS(2022). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 18291-LEA5-C00 | GASKET EXH PIPE | 1 | $5.88 USD | View product → | |
| 2 | 18291-LKG2-C00 | COLLAR | 1 | $2.61 USD | View product → | |
| 3 | 18292-KEBE-C00 | PACKING PROTECTOR | 1 | $2.61 USD | View product → | |
| 4 | 18293-LHJ8-900 | RUBBER PKG PROTR | 1 | $11.79 USD | View product → | |
| 5 | 1830A-AEB9-M30-D0M | MUFFLER ASSY EXH | 1 | $1623.98 USD | View product → | |
| 6 | 18317-AEB9-E00-F1P | PROTECTOR A MUFFLER | 1 | $46.83 USD | View product → | |
| 7 | 18318-AEB9-E00-D0M | PROTECTOR MUFF | 1 | $139.38 USD | View product → | |
| 8 | 39450-LEA6-800 | O2 SENSOR | 1 | $292.26 USD | View product → | |
| 9 | 90120-LEJ3-C00 | SOCKET BOLT SPECIAL 6*22 | 1 | $10.14 USD | View product → | |
| 10 | 90301-GFY6-C01 | NUT (HEX) CAP 8MM | 2 | $15.21 USD | View product → | |
| 11 | 93903-34260 | SCREW TAPPING 4*10 | 3 | $4.92 USD | View product → | |
| 12 | 94101-06700 | WASHER PLAIN 6MM | 1 | $4.92 USD | View product → | |
| 13 | 94101-LEA2-C00 | "WASHER PLAIN,6.5X18X1.5" | 1 | $1.65 USD | View product → | |
| 14 | 94111-ACD5-E00 | WASHER.SPG | 1 | $11.79 USD | View product → | |
| 15 | 95801-08042-07G | BOLT FLANGE 8*42 (K) | 3 | $3.93 USD | View product → | |
| 16 | 96001-06008-07 | BOLT FLANGE 6X8 | 1 | $4.92 USD | View product → |
