F06 — Cushion Assy Fr●Wheel Assy Steering

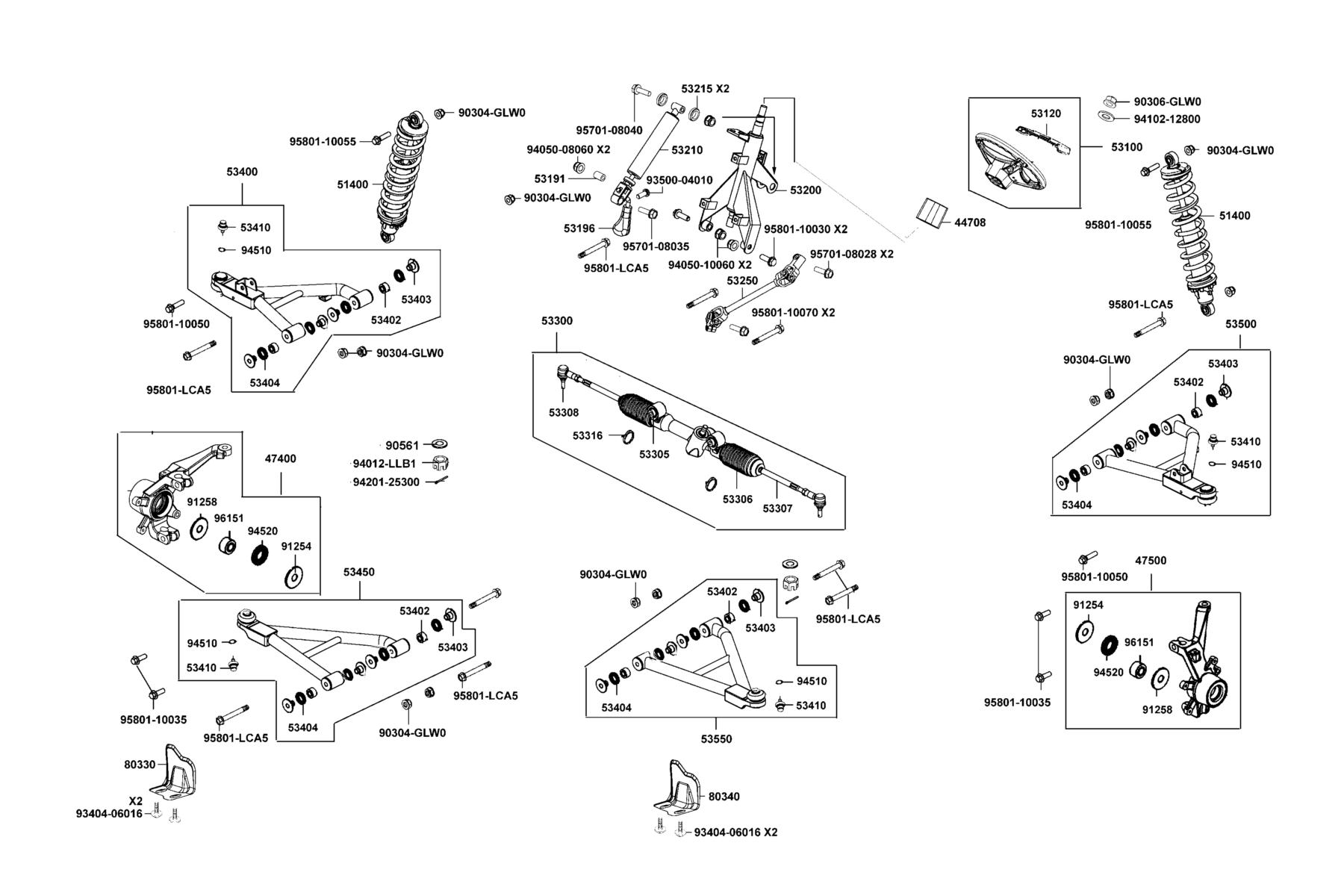

The Cushion Assy Fr●Wheel Assy Steering diagram contains 52 genuine OEM parts for the KYMCO UXV 450i LE (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 44708-ALE8-E01 | SPACERWHEEL STEERING | 1 | $171.12 USD | View product → | |
| 2 | 47400-ALE8-E00 | KNUCKLE ASSY STEERING RH | 1 | $537.81 USD | View product → | |
| 3 | 47500-ALE8-E00 | KNUCKLE ASSY STEERING LH | 1 | $537.81 USD | View product → | |
| 4 | 51400-ALE8-E00 | CUSHION ASSY FR | 2 | $520.29 USD | View product → | |
| 5 | 53100-ALE8-900 | WHEEL ASSY STEERING | 1 | $333.75 USD | View product → | |
| 6 | 53120-ALE8-900 | COVER WHEEL | 1 | $124.71 USD | View product → | |
| 7 | 53191-LAC5-900 | COLLAR ADJUSTER | 1 | $9.51 USD | View product → | |
| 8 | 53196-LAC5-900 | GRIP ADJUSTER | 1 | $32.10 USD | View product → | |
| 9 | 53200-ALE8-E00 | COLUMN STEERING | 1 | $253.41 USD | View product → | |
| 10 | 53210-ALE8-E00 | ADJUSTER HANDLE | 1 | $212.31 USD | View product → | |
| 11 | 53215-ALE8-E00 | COLLAR ADJUST | 2 | $6.78 USD | View product → | |
| 12 | 53250-ALE8-E00 | STEERING SHAFT ASSY | 1 | $350.07 USD | View product → | |
| 13 | 53300-ALE8-E00 | STEERING ASSY | 1 | $459.88 USD | View product → | |
| 14 | 53305-LEE8-E00 | BUSH | 2 | $37.59 USD | View product → | |
| 15 | 53306-LEE8-E00 | BOOT | 2 | $37.59 USD | View product → | |
| 16 | 53307-ALE8-E00 | TIE ROD | 2 | $157.47 USD | View product → | |
| 17 | 53308-ALE8-E00 | BALL JOINT | 2 | $133.77 USD | View product → | |
| 18 | 53316-LEE8-E00 | BAND STRG ASSY | 2 | $32.85 USD | View product → | |
| 19 | 53400-ALE8-E00 | A-ARM ASSY FR UPPER RH | 1 | $403.50 USD | View product → | |
| 20 | 53402-LEE8-E00 | BEARING SPHERICAL PLAIN | 8 | $65.37 USD | View product → | |
| 21 | 53403-LEE8-E00 | COLLAR SWING ARM | 16 | $22.62 USD | View product → | |
| 22 | 53404-LEE8-E00 | DUST SEAL 16*30*4.5 | 16 | $23.49 USD | View product → | |
| 23 | 53410-PRB1-900 | BALL JOINT ASSY | 4 | $166.11 USD | View product → | |
| 24 | 53450-ALE8-E00 | A-ARM ASSY FR LOWER R | 1 | $392.01 USD | View product → | |
| 25 | 53500-ALE8-E00 | A-ARM ASSY FR UPPER LH | 1 | $403.50 USD | View product → | |
| 26 | 53550-ALE8-E00 | A-ARM ASSY FR LOWER LH | 1 | $392.01 USD | View product → | |
| 27 | 80330-LGN5-E01-N1R | GUARD R RR BOOT (Black) | 1 | $35.34 USD | View product → | |
| 28 | 80340-LGN5-E01-N1R | GUARD L RR BOOT (Black) | 1 | $35.34 USD | View product → | |
| 29 | 90304-GLW0-90A | NUT U FLANGE 10MM | 12 | $9.39 USD | View product → | |
| 30 | 90306-GLW0-90A | NUT U FLANGE 12MM(C) | 1 | $17.55 USD | View product → | |
| 31 | 90561-PWB1-900 | WASHER 21X10X2.2 | 2 | $5.31 USD | View product → | |
| 32 | 91254-LDB5-E00 | SEAL DUST CVJ 38X55X7 | 1 | $21.99 USD | View product → | |
| 33 | 91258-LDB5-E00 | SEAL DUST HUB 38*55*7 | 2 | $18.72 USD | View product → | |
| 34 | 93404-06016-06 | BOLT WASHER 6*16 | 4 | $7.89 USD | View product → | |
| 35 | 93500-04010-0F | SCREW 4X10 | 1 | $13.95 USD | View product → | |
| 36 | 94012-LLB1-900 | NUT CASTLE 10MM | 2 | $13.77 USD | View product → | |
| 37 | 94050-08060 | NUT FLANGE 8MM | 2 | $5.31 USD | View product → | |
| 38 | 94050-10060 | NUT FLANGE 10MM | 2 | $5.67 USD | View product → | |
| 39 | 94102-12800 | WASHER PLAIN 12MM | 1 | $1.86 USD | View product → | |
| 40 | 94201-25300 | PIN SPLIT 2.5*30 | 2 | $1.86 USD | View product → | |
| 41 | 94510-PWB1-900 | CIRCLIP EX 29 | 4 | $5.31 USD | View product → | |
| 42 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → | |
| 43 | 95701-08028-06 | BOLT FLANGE 8*28 | 2 | $4.53 USD | View product → | |
| 44 | 95701-08035-06 | BOLT FLANGE 8*35 | 1 | $5.88 USD | View product → | |
| 45 | 95701-08040-06 | BOLT FLANGE 8X40 | 1 | $9.06 USD | View product → | |
| 46 | 95801-10030-06 | BOLT FLANGE 10X30 | 2 | $16.68 USD | View product → | |
| 47 | 95801-10035-06 | BOLT FLANGE 10X35 | 4 | $10.92 USD | View product → | |
| 48 | 95801-10050-06 | BOLT FLANGE 10*50 | 2 | $9.39 USD | View product → | |
| 49 | 95801-10055-06 | BOLT FLANGE 10*55 | 2 | $13.56 USD | View product → | |
| 50 | 95801-10070-06 | BOLT FLANGE 10*70 (G) | 2 | $9.39 USD | View product → | |
| 51 | 95801-LCA5-900 | BOLT FLANGE 10*70 | 8 | $11.70 USD | View product → | |
| 52 | 96151-PWB1-900 | BEARING WHEEL | 2 | $160.56 USD | View product → |
