F15 — SHIFTER ASSY

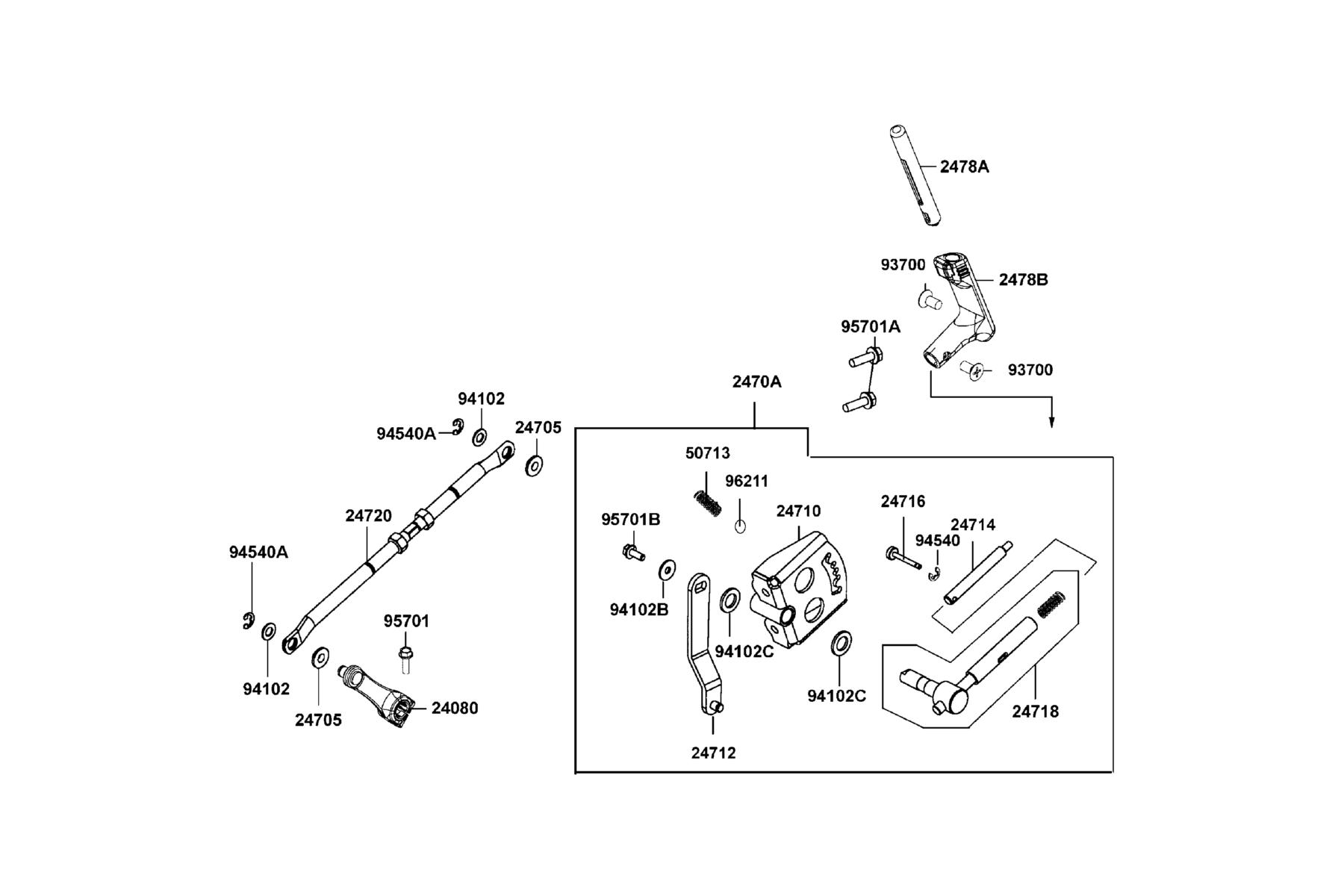

The SHIFTER ASSY diagram contains 22 genuine OEM parts for the KYMCO UXV 450i LE (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 24080-ALE8-E00 | ARM GEAR SELECT ASSY | 1 | $121.14 USD | View product → | |
| 2 | 24705-PWB1-900 | BUSHING SHIFT | 2 | $18.24 USD | View product → | |
| 3 | 2470A-ALE8-E00 | SHIFTER ASSY | 1 | $234.30 USD | View product → | |
| 4 | 24710-ALE8-E00 | BRKT SHIFTER | 1 | $111.84 USD | View product → | |
| 5 | 24712-ALE8-E00 | STAY SHIFT GUIDE | 1 | $61.80 USD | View product → | |
| 6 | 24714-ALE8-E00 | BAR SHIFTER | 1 | $51.54 USD | View product → | |
| 7 | 24716-ALE8-E00 | BAR SHIFTER | 1 | $24.99 USD | View product → | |
| 8 | 24718-ALE8-E00 | SHAFT SPRING COMP CHANGE HANDLE | 1 | $164.67 USD | View product → | |
| 9 | 24720-ALE8-E00 | CABLE SHIFTER ASSY | 1 | $191.94 USD | View product → | |
| 10 | 2478A-ALE8-E00 | SHIFTER BUTTON | 1 | $10.92 USD | View product → | |
| 11 | 2478B-ALE8-E00 | SHIFTER KNOB ASSY | 1 | $43.56 USD | View product → | |
| 12 | 50713-LDB5-E00 | SPRING | 1 | $4.53 USD | View product → | |
| 13 | 93700-05008-0F | SCREW OVAL 5X8 | 1 | $12.12 USD | View product → | |
| 14 | 94102-08000 | WASHER PLAIN 8MM | 2 | $1.86 USD | View product → | |
| 15 | 94102-ALE8-E00 | WASHER PLAIN 6MM | 1 | $22.50 USD | View product → | |
| 16 | 94102-LDB5-E00 | WASHER PLAIN 14MM | 2 | $4.53 USD | View product → | |
| 17 | 94540-03029 | E CLIP COLLAR STOPPER | 1 | $4.92 USD | View product → | |
| 18 | 94540-06012 | E RING 6 | 2 | $4.92 USD | View product → | |
| 19 | 95701-06022-06 | BOLT FLANGE 6*22 | 1 | $4.26 USD | View product → | |
| 20 | 95701-08016-06 | BOLT FLANGE 8*16 | 2 | $4.53 USD | View product → | |
| 21 | 95701-LDB5-E00 | BOLT FLANGE 6*16 | 1 | $3.93 USD | View product → | |
| 22 | 96211-08000 | BALL STEEL 8 | 1 | $1.83 USD | View product → |
