F25 — Assy Winch

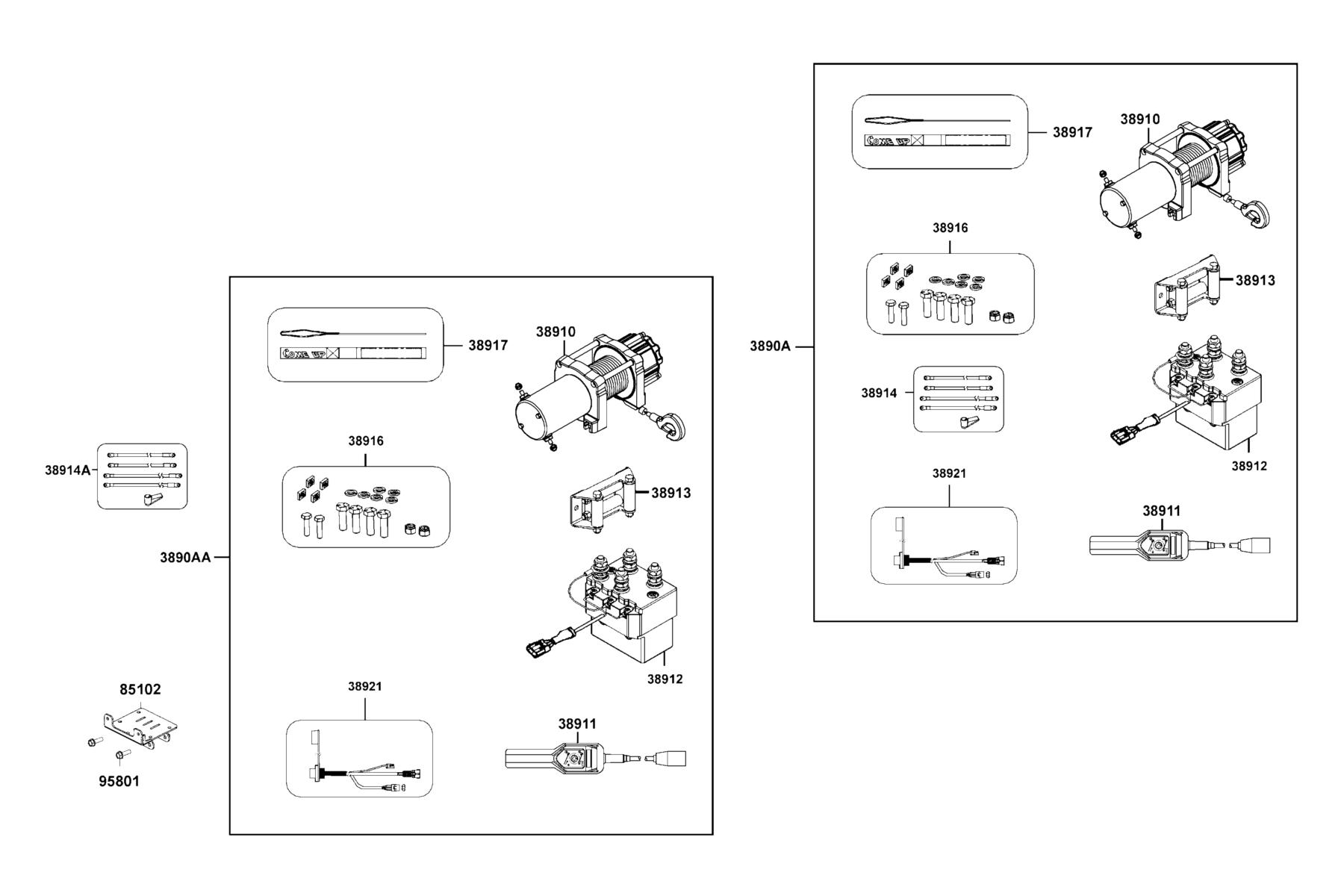

The Assy Winch diagram contains 13 genuine OEM parts for the KYMCO UXV 450i LE (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3890A-ALE8-M01 | ASSY WINCH | 1 | $979.82 USD | View product → | |
| 2 | 3890A-ALE8-M05 | ASSY WINCH | 1 | $947.90 USD | View product → | |
| 3 | 38910-LFE9-E05 | WINCH COMP | 1 | $541.16 USD | View product → | |
| 4 | 38911-LEE8-600 | ROCKER SWITCH CABLE | 1 | $192.81 USD | View product → | |
| 5 | 38912-LFE9-E02 | RELAY ASSY WINCH | 1 | $431.31 USD | View product → | |
| 6 | 38913-LFE9-E02 | ROLLER FAIRLEAD | 1 | $308.52 USD | View product → | |
| 7 | 38914-ALE8-600 | POWER WIRE | 1 | $306.30 USD | View product → | |
| 8 | 38914-ALE8-M09 | POWER WIRE | 1 | $284.25 USD | View product → | |
| 9 | 38916-LFE9-E02 | HARDWARE | 1 | $96.63 USD | View product → | |
| 10 | 38917-LFE9-E02 | HOOK PART ACCESSORIES | 1 | $172.77 USD | View product → | |
| 11 | 38921-LEE8-600 | SWITCH WIRE ROCKER | 1 | $192.51 USD | View product → | |
| 12 | 85102-ALE8-E01 | PLATE WINCH | 1 | $48.72 USD | View product → | |
| 13 | 95801-10085-06 | BOLT FLANGE 10*85 | 2 | $19.59 USD | View product → |
