F03 — Handle Steering

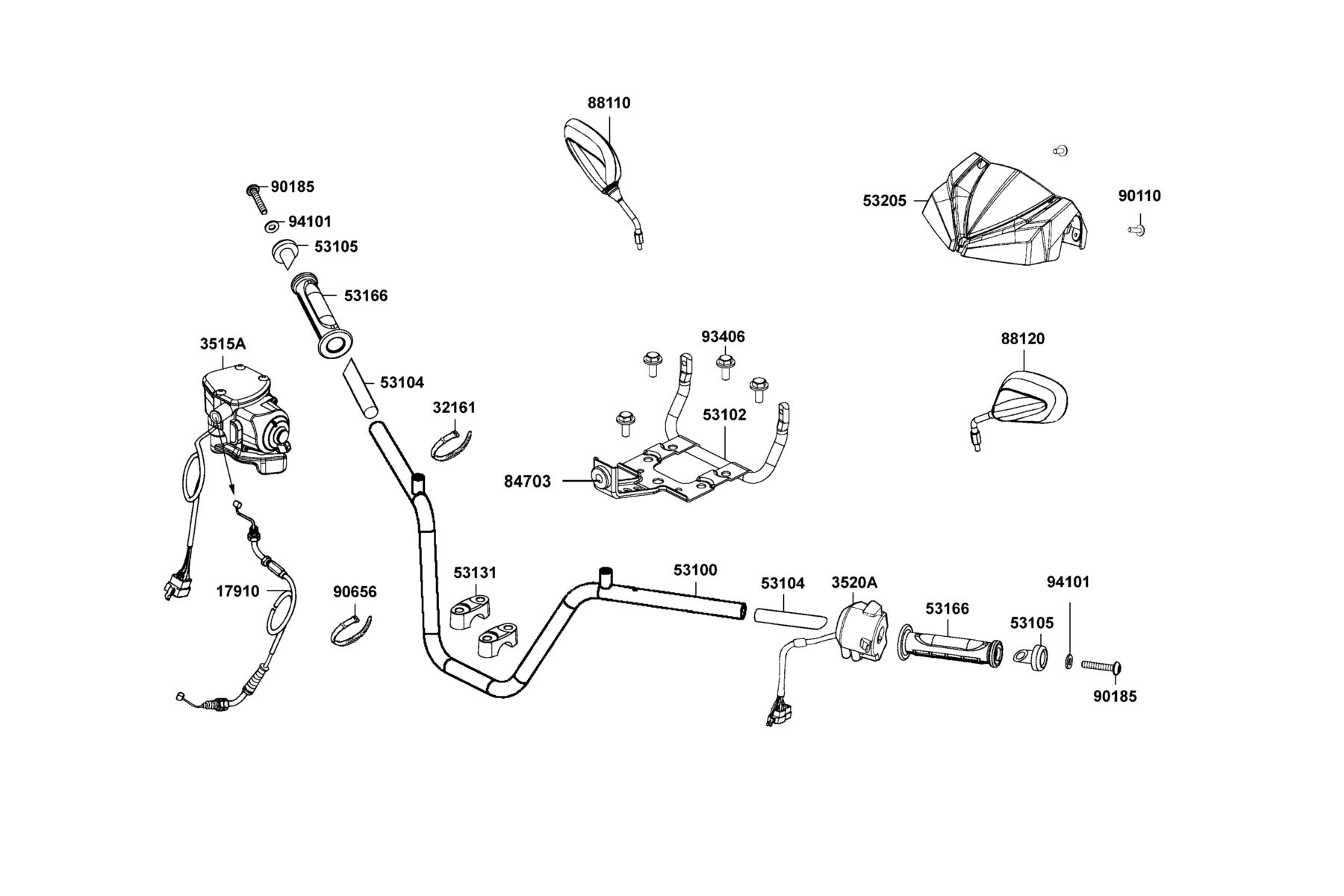

The Handle Steering diagram contains 19 genuine OEM parts for the KYMCO MXU 550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-LDB5-E00 | CABLE COMP THROT | 1 | $39.39 USD | View product → | |
| 2 | 32161-4D04-001 | BAND BI WIRE | 2 | $4.53 USD | View product → | |
| 3 | 3515A-LFE9-900 | SW & THROT ASSY RH HANDLE | 1 | $263.58 USD | View product → | |
| 4 | 3520A-AGA7-E00 | SW ASS'Y LH HANDLE COMP | 1 | $281.04 USD | View product → | |
| 5 | 53100-AGA8-E00 | HANDLE PIPE STRG | 1 | $138.90 USD | View product → | |
| 6 | 53102-ALC1-E00 | STAY HANDLE COVER | 1 | $90.21 USD | View product → | |
| 7 | 53104-PWB1-900 | PLUG??? HANDLEBAR | 2 | $31.17 USD | View product → | |
| 8 | 53105-PWB1-900 | END HANDLEBAR-BLACK | 2 | $7.17 USD | View product → | |
| 9 | 53131-4K39-001 | HOLDER HANDLE PIPE | 2 | $17.79 USD | View product → | |
| 10 | 53166-LGC7-E00 | GRIP HANDLEBAR | 2 | $47.94 USD | View product → | |
| 11 | 53205-AGA8-E00-N1R | COVER.HANDLEBAR (Black) | 1 | $53.85 USD | View product → | |
| 12 | 84703-LLB1-900 | RUBBER TAIL LIGHT | 1 | $3.96 USD | View product → | |
| 13 | 88110-LBA7-E00 | MIRROR ASSY R BACK | 1 | $59.88 USD | View product → | |
| 14 | 88120-LBA7-E00 | MIRROR ASSY L BACK | 1 | $59.88 USD | View product → | |
| 15 | 90110-PRB3-900 | SCREW SPECUAL 5x16 | 2 | $0.48 USD | View product → | |
| 16 | 90185-PWB1-900 | SOCKET BOLT 8x45 | 2 | $17.82 USD | View product → | |
| 17 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 8 | $3.93 USD | View product → | |
| 18 | 93406-LLB1-900 | BOLT-WASHER 8*35 | 4 | $4.92 USD | View product → | |
| 19 | 94101-08600 | WASH PLAIN 8MM | 2 | $2.25 USD | View product → |
