F19 — Light Tail

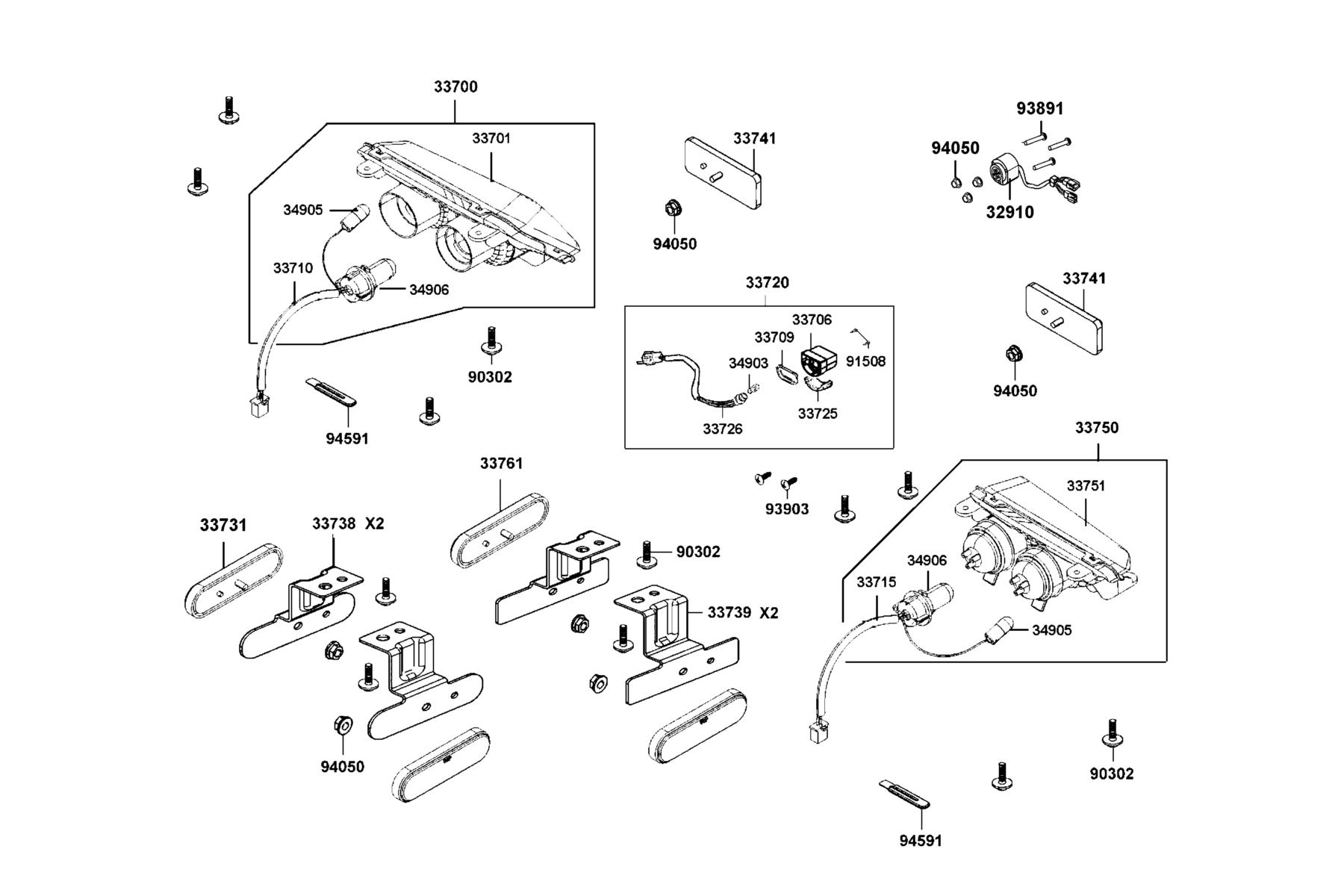

The Light Tail diagram contains 28 genuine OEM parts for the KYMCO MXU 550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 044.698 | BULB POSITION LIGHT 12V5W | 1 | $4.11 USD | View product → | |
| 2 | 32910-LKA8-E70 | ASSY TRAILER CONNECTOR /D106 | 1 | $202.65 USD | View product → | |
| 3 | 33700-LFA5-E02 | LIGHT ASSY R RR COMB | 1 | $136.32 USD | View product → | |
| 4 | 33701-LFA5-E02 | UNIT TAIL LIGHT R | 1 | $117.51 USD | View product → | |
| 5 | 33706-GCN3-67A | COVER LICENSE | 1 | $7.17 USD | View product → | |
| 6 | 33709-KBAB-003 | PACKING LICENSE | 1 | $5.67 USD | View product → | |
| 7 | 33710-LFA5-E00 | SOCKEY COMP R RR COMB | 1 | $114.48 USD | View product → | |
| 8 | 33715-LFA5-E00 | SOCKEY COMP L RR COMB | 1 | $114.48 USD | View product → | |
| 9 | 33720-ADB9-E00 | LIGHT ASS'Y LICENSE | 1 | $36.78 USD | View product → | |
| 10 | 33725-KHB4-E00 | LENS LICENSE | 1 | $4.92 USD | View product → | |
| 11 | 33726-LCA5-E00 | SOCKET COMP | 1 | $9.51 USD | View product → | |
| 12 | 33731-PUA6-MX0 | REFLEX REFLECTOR | 2 | $19.26 USD | View product → | |
| 13 | 33738-AGA8-E00 | STAY REFLECTOR FR SIDE | 1 | $12.12 USD | View product → | |
| 14 | 33739-AGA8-E00 | STAY REFLECTOR RR SIDE | 1 | $12.78 USD | View product → | |
| 15 | 33741-KHC5-M00 | REFLEX REFLECTOR | 2 | $21.06 USD | View product → | |
| 16 | 33750-LFA5-E02 | LIGHT ASSY L RR COMB | 1 | $136.32 USD | View product → | |
| 17 | 33751-LFA5-E02 | UNIT TAIL LIGHT L | 1 | $117.51 USD | View product → | |
| 18 | 33761-PUA6-MX0 | REFLEX REFLECTOR, | 2 | $38.76 USD | View product → | |
| 19 | 34905-LBA7-E00 | BULB WINKER 12V10W | 2 | $22.71 USD | View product → | |
| 20 | 34906-KPCP-900 | BULB TAIL & STOP | 2 | $8.76 USD | View product → | |
| 21 | 34906-KPCP-900-invalid | BULB TAIL & STOP | 2 | $11.40 USD | View product → | |
| 22 | 44.698 | BULB POSITION LIGHT 12V5W | 1 | $4.11 USD | View product → | |
| 23 | 90302-PWA1-900 | BOLT-WASH 5*16 | 12 | $4.92 USD | View product → | |
| 24 | 91508-KGV7-67A | SCREW TAPPING 4*14 | 2 | $3.00 USD | View product → | |
| 25 | 93891-05035-06 | BOLT WASH 5*35 | 3 | $4.92 USD | View product → | |
| 26 | 93903-34360 | SCREW TAPPING 4X12 | 2 | $4.29 USD | View product → | |
| 27 | 94050-05060 | NUT FLANGE 5MM | 9 | $4.92 USD | View product → | |
| 28 | 94591-KFBF-900 | CLIP 2*70 | 2 | $3.78 USD | View product → |
