F28 — Caliper Assy Rear

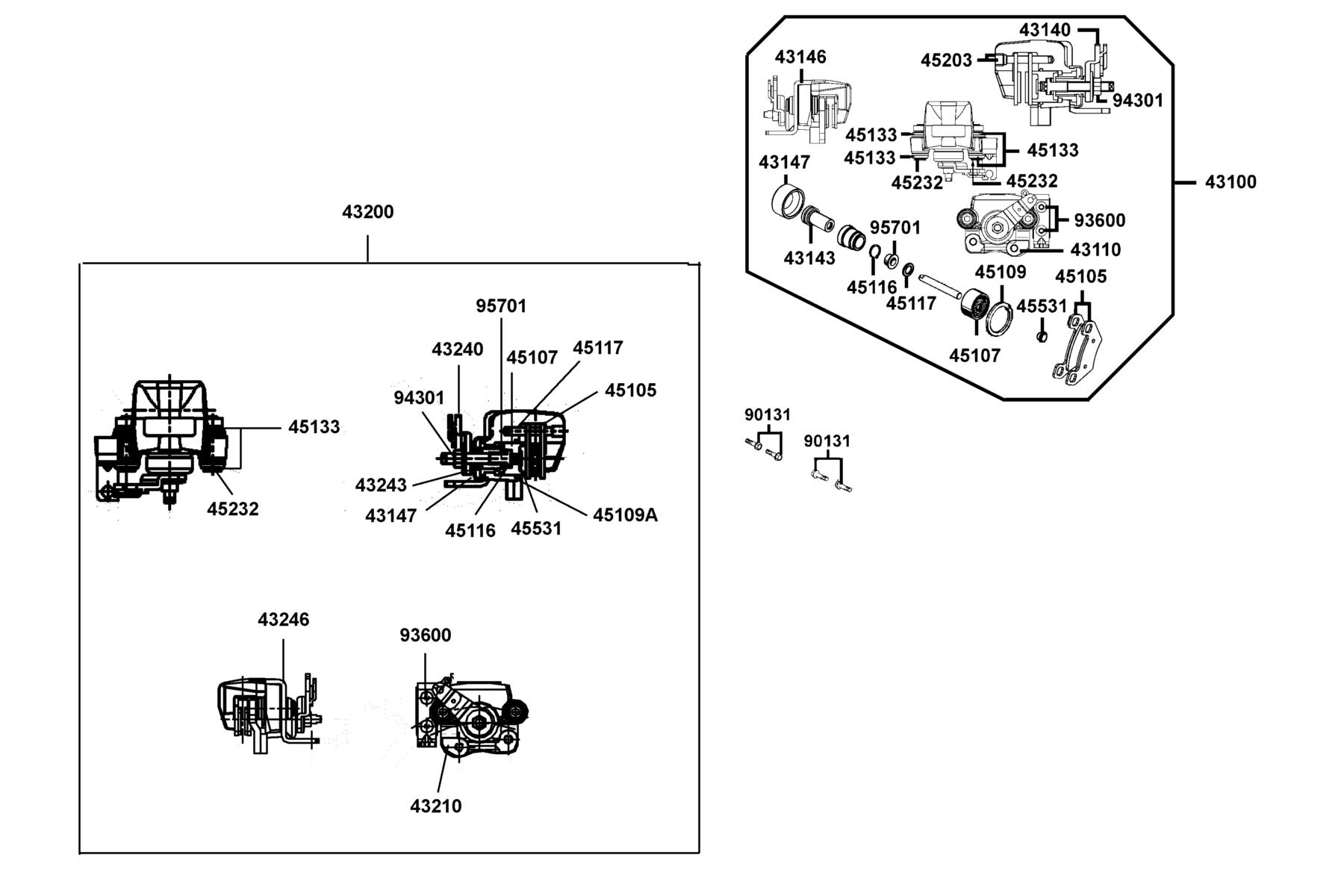

The Caliper Assy Rear diagram contains 25 genuine OEM parts for the KYMCO MXU 550(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 43100-LFA5-E00-NJA | CALIPER ASSY REAR (Silver) | 1 | $97.14 USD | View product → | |
| 2 | 43110-LFA5-E00 | BRACKET CAILPER | 1 | $46.86 USD | View product → | |
| 3 | 43140-LEC1-E00 | ARM BRAKE | 1 | $21.60 USD | View product → | |
| 4 | 43143-LEC1-E00 | BOLT DRIVE | 1 | $4.05 USD | View product → | |
| 5 | 43146-LEC1-E00 | BRACKET CABLE | 1 | $3.12 USD | View product → | |
| 6 | 43147-LEC1-E00 | CAP | 2 | $0.93 USD | View product → | |
| 7 | 43200-LFA5-E00-NJA | CALIPER ASSY,REAR LH PARKING B (Silver) | 1 | $347.91 USD | View product → | |
| 8 | 43210-LFA5-E00 | BRACKET CALIPER | 1 | $53.79 USD | View product → | |
| 9 | 43240-LFA5-E00 | ARM BRAKE | 1 | $3.75 USD | View product → | |
| 10 | 43243-LFA5-E00 | BOLT DRIVE | 1 | $3.27 USD | View product → | |
| 11 | 43246-LFA5-E00 | BRACKET CABLE | 1 | $61.56 USD | View product → | |
| 12 | 45105-LFA5-305 | PAD ASSY | 2 | $61.56 USD | View product → | |
| 13 | 45107-LEC1-E00 | PISTON C/P (??25.4MM) | 2 | $16.77 USD | View product → | |
| 14 | 45109-LEC1-E00 | SEAL DUST | 1 | $0.63 USD | View product → | |
| 15 | 45109-LFA5-E00 | SEAL DUST | 1 | $5.22 USD | View product → | |
| 16 | 45116-LEC1-E00 | CLIP | 2 | — | Part details → | |
| 17 | 45117-LEC1-E00 | WASHER | 2 | $3.27 USD | View product → | |
| 18 | 45133-LEC1-E00 | BOOT | 8 | $6.24 USD | View product → | |
| 19 | 45203-LEC1-E00 | PIN HANGER | 1 | $7.53 USD | View product → | |
| 20 | 45232-LEC1-E00 | PIN BOLT | 4 | $15.84 USD | View product → | |
| 21 | 45531-LEC1-E00 | PLUG | 2 | $1.95 USD | View product → | |
| 22 | 90131-LFA5-E00 | BOLT FLANGE 8X22 | 4 | $5.07 USD | View product → | |
| 23 | 93600-LEC1-E00 | SCREW FLAT 6MM | 4 | $3.27 USD | View product → | |
| 24 | 94301-08060 | NUT HEC 8MM | 1 | $5.22 USD | View product → | |
| 25 | 95701-LEC1-E00 | BOLT ADJUST | 2 | $9.51 USD | View product → |
