F05 — Fender Front

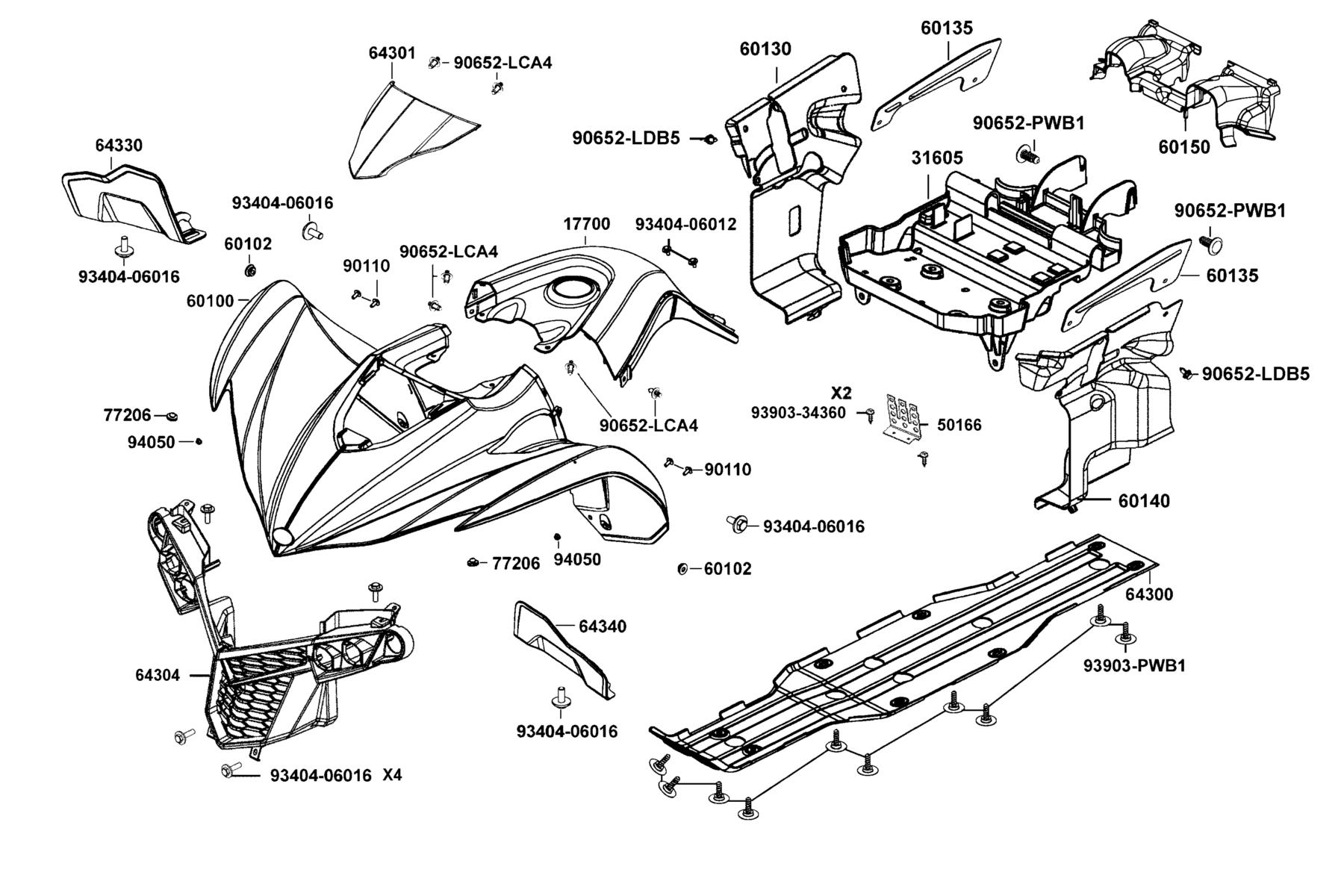

The Fender Front diagram contains 24 genuine OEM parts for the KYMCO MAXXER 450I. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17700-LGN5-600-ERP | COVER.TANK ( VIBRANT RED ) | 1 | $179.16 USD | View product → | |
| 2 | 31605-LGC7-E00-N1R | TRAY ELECTRICAL (Black) | 1 | $66.96 USD | View product → | |
| 3 | 50166-LGC7-E00 | STAY.RELAY | 1 | — | Part details → | |
| 4 | 60100-LGN5-600-ERP | FENDER FRONT (VIBRANT RED ) | 1 | $449.94 USD | View product → | |
| 5 | 60102-PWB1-900 | GROMMET PANEL-SIDE | 2 | $4.89 USD | View product → | |
| 6 | 60130-LGC7-E00-N1R | PANEL.SPLASH RIGHT (Black) | 1 | $46.74 USD | View product → | |
| 7 | 60135-LGC7-E00-N1R | PANEL B. SPLASH RIGHT (Black) | 1 | $14.01 USD | View product → | |
| 8 | 60140-LGC7-E00-N1R | PANEL SPLASH LEFT (Black) | 1 | $43.29 USD | View product → | |
| 9 | 60150-LFA5-E01-N1R | COVER WATERPROOF (Black) | 1 | $42.87 USD | View product → | |
| 10 | 64300-PWB1-910-N1R | PLATE SKID (Black) | 1 | $140.64 USD | View product → | |
| 11 | 64301-LGN5-600-N1P | COVER.FRONT | 1 | $75.54 USD | View product → | |
| 12 | 64304-LGC7-M04-N1R | GRILL FRONT (Black) | 1 | $67.86 USD | View product → | |
| 13 | 64330-LFE9-E00-N1R | GUARD R BOOT (Black) | 1 | $33.72 USD | View product → | |
| 14 | 64340-LFE9-E00-N1R | GUARD L BOOT (Black) | 1 | $21.54 USD | View product → | |
| 15 | 77206-PWB1-900 | BUMPER.SEAT | 1 | $14.31 USD | View product → | |
| 16 | 90110-PWA2-900 | BOLT SPECIAL 6*16 | 4 | $4.29 USD | View product → | |
| 17 | 90652-LCA4-E00 | CLIP MUDGUARD | 6 | $4.92 USD | View product → | |
| 18 | 90652-LDB5-900 | CLIP MUDGUARD | 2 | $5.31 USD | View product → | |
| 19 | 90652-PWB1-900 | X'MAS TREE CLIP | 2 | $5.31 USD | View product → | |
| 20 | 93404-06012-06 | BOLT WASHER 6X12 | 2 | $2.61 USD | View product → | |
| 21 | 93404-06016-06 | BOLT WASHER 6*16 | 6 | $7.89 USD | View product → | |
| 22 | 93903-34360 | SCREW TAPPING 4X12 | 8 | $4.29 USD | View product → | |
| 23 | 93903-PWB1-900 | SCREW BODY-SELF TAP #12x3/4 A | 10 | $9.99 USD | View product → | |
| 24 | 94050-PWA2-900 | NUT LOCK | 2 | $4.92 USD | View product → |
