F06 — Post Steering

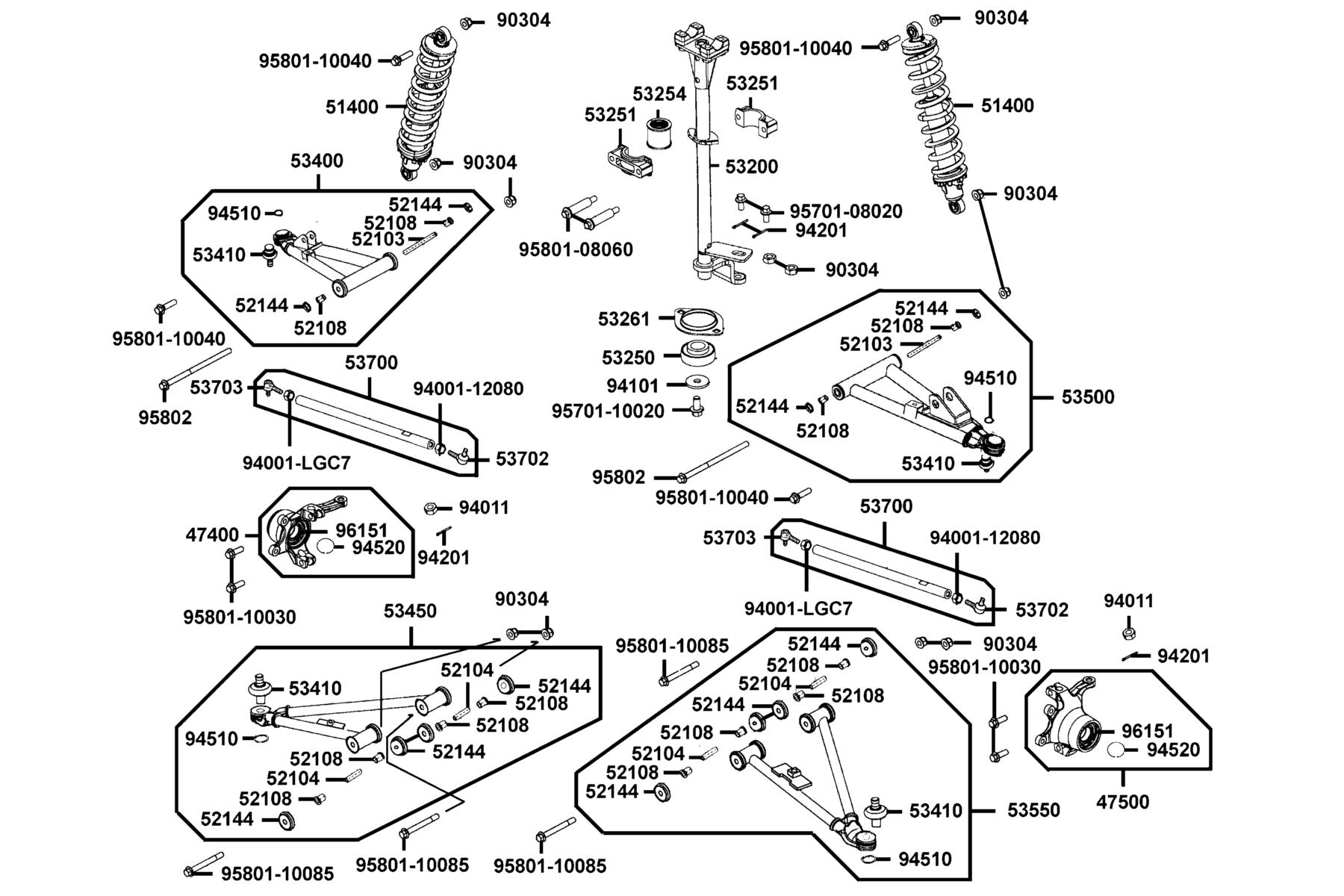

The Post Steering diagram contains 36 genuine OEM parts for the KYMCO MAXXER 450I. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 47400-PWB1-900 | KNUCKLE STEERING-RH ASSEMBLY | 1 | $208.62 USD | View product → | |
| 2 | 47500-PWB1-900 | KNUCKLE STEERING-LH ASSEMBLY | 1 | $208.62 USD | View product → | |
| 3 | 51400-LGC7-900-N1S | CUSHION ASSY FR | 2 | $317.97 USD | View product → | |
| 4 | 52103-PWB1-900 | SLEEVE SUSPENSION | 2 | $38.85 USD | View product → | |
| 5 | 52104-PWB1-900 | SLEEVE SUSPENSION | 4 | $22.98 USD | View product → | |
| 6 | 52108-PWB1-900 | BUSHING SUSPENSION | 12 | $11.31 USD | View product → | |
| 7 | 52144-PWB1-900 | SEAL SUSPENSION | 12 | $12.09 USD | View product → | |
| 8 | 53200-LGN5-900 | POST STEERING | 1 | $304.80 USD | View product → | |
| 9 | 53250-PWB1-900 | BEARING STEERING-LOW SPEED | 1 | $87.45 USD | View product → | |
| 10 | 53251-LGN5-E00 | HOLDER STEM STRG | 2 | $43.23 USD | View product → | |
| 11 | 53254-LBA7-900 | SLEEVE STEM | 1 | $9.39 USD | View product → | |
| 12 | 53261-PWB1-900 | FLANGE BEARING-TWO MTG HOLE | 1 | $12.09 USD | View product → | |
| 13 | 53400-LGN5-E00-MBS | A-ARM. FRONT-UPPER-RH-ASSY | 1 | $308.82 USD | View product → | |
| 14 | 53410-PRB1-900 | BALL JOINT ASSY | 1 | $166.11 USD | View product → | |
| 15 | 53450-LGN5-E00-MBS | A-ARM ASSY FRONT LWR RH | 1 | $344.37 USD | View product → | |
| 16 | 53500-LGN5-E00-MBS | A-ARM FRONT-UPPER-LH-ASSY | 1 | $308.82 USD | View product → | |
| 17 | 53550-LGN5-E00-MBS | A-ARM ASSY FRONT LWR LH | 1 | $344.37 USD | View product → | |
| 18 | 53700-LGC7-E00 | TIE ROD ASSY | 2 | $172.62 USD | View product → | |
| 19 | 53702-LGC7-E00 | JOINT R BALL | 2 | $149.52 USD | View product → | |
| 20 | 53703-LGC7-E00 | JOINT L BALL | 2 | $149.52 USD | View product → | |
| 21 | 90304-GLW0-90A | NUT U FLANGE 10MM | 10 | $9.39 USD | View product → | |
| 22 | 94001-12080 | NUT HEX 12MM | 2 | $23.31 USD | View product → | |
| 23 | 94001-LGC7-E00 | NUT HEX LH 12MM | 2 | $23.31 USD | View product → | |
| 24 | 94011-LKA8-E00 | NUT CASTLE 10MM | 4 | $21.99 USD | View product → | |
| 25 | 94101-PWB1-900 | WASHER FLAT | 1 | $5.31 USD | View product → | |
| 26 | 94201-25250 | PIN SPLIT 2.5*25 | 4 | $1.86 USD | View product → | |
| 27 | 94510-PWB1-900 | CIRCLIP EX 29 | 4 | $5.31 USD | View product → | |
| 28 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → | |
| 29 | 95701-08020-06 | BOLT FLANGE 8*20 | 2 | $3.78 USD | View product → | |
| 30 | 95701-10020-06 | BOLT FLANGE 10*20 | 1 | $6.24 USD | View product → | |
| 31 | 95801-08060-06 | BOLT FLANGE 8*60 | 2 | $11.31 USD | View product → | |
| 32 | 95801-10030-06 | BOLT FLANGE 10X30 | 4 | $16.68 USD | View product → | |
| 33 | 95801-10040-06 | BOLT FLANGE 10X40 | 4 | $21.60 USD | View product → | |
| 34 | 95801-10085-06 | BOLT FLANGE 10*85 | 4 | $19.59 USD | View product → | |
| 35 | 95802-PWB1-900 | SCREW CAP-HFH M10X1.25X180 | 2 | $43.56 USD | View product → | |
| 36 | 96151-PWB1-900 | BEARING WHEEL | 2 | $160.56 USD | View product → |
