F25 — Emblem ● Stripe

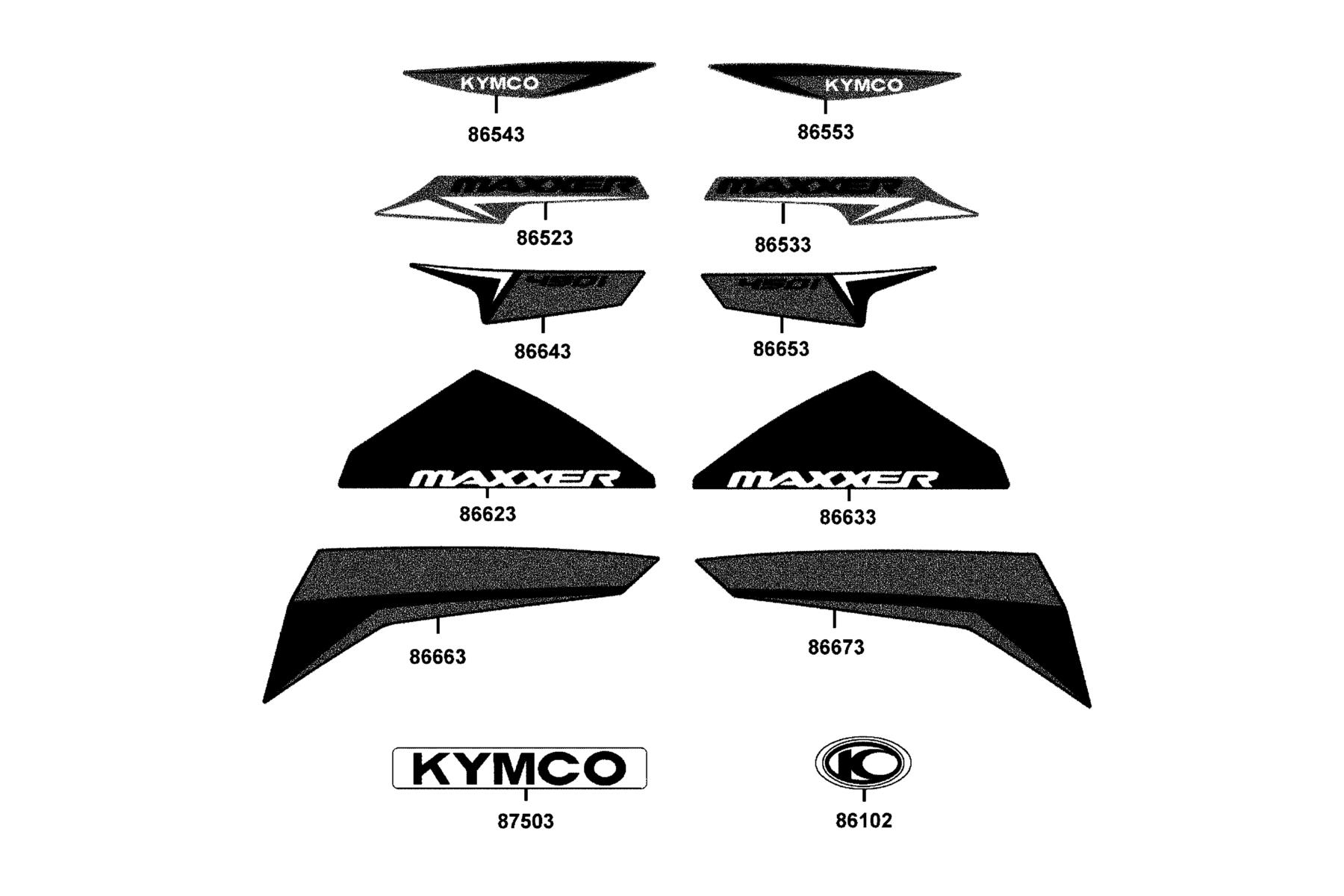

The Emblem ● Stripe diagram contains 12 genuine OEM parts for the KYMCO MAXXER 450I. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86102-ALG1-E00-T01 | EMB K-LOGO | 1 | $47.49 USD | View product → | |
| 2 | 86523-LGC7-M01-T01 | STRIPE R FENDER FR | 1 | $13.95 USD | View product → | |
| 3 | 86533-LGC7-M01-T01 | STRIPE L FENDER FR | 1 | $13.95 USD | View product → | |
| 4 | 86543-LGC7-M01-T01 | STRIPE B R FENDER FR | 1 | $13.95 USD | View product → | |
| 5 | 86553-LGC7-M01-T01 | STRIPE B L FENDER FR | 1 | $13.95 USD | View product → | |
| 6 | 86623-LGC7-M01-T01 | STRIPE R RR FENDER | 1 | $13.38 USD | View product → | |
| 7 | 86633-LGC7-M01-T01 | STRIPE L RR FENDER | 1 | $13.38 USD | View product → | |
| 8 | 86643-LGC7-M00-T01 | STRIPE B R RR FENDER | 1 | $16.35 USD | View product → | |
| 9 | 86653-LGC7-M00-T01 | STRIPE B L RR FENDER | 1 | $16.35 USD | View product → | |
| 10 | 86663-LGC7-M00-T01 | STRIPE C R RR FENDER | 1 | $44.70 USD | View product → | |
| 11 | 86673-LGC7-M00-T01 | STRIPE C L RR FENDER | 1 | $44.70 USD | View product → | |
| 12 | 87503-LGN5-900-T03 | STRIPE KYMCO-125mm (PP) | 1 | $25.65 USD | View product → |
