KYMCO frame & footrest part numbers and diagrams
| Part number | Name | Price | Fits models | |
|---|---|---|---|---|
 |
47500-LLB1-900 | SHAFT ASSY L STEERING | $147.09 | 72 |
 |
47500-PRB3-800 | KNUCKLE ASSY L STRG | $258.15 | 8 |
 |
47500-PWB1-900 | KNUCKLE STEERING-LH ASSEMBLY | $208.62 | 253 |
 |
47500-ZWA2-M00 | KNUCKLE ASSY STEERING-LH | $412.59 | 41 |
 |
47501-LBD4-900 | SHAFT L STEERING | $177.06 | 172 |
 |
47502-LDB5-E00 | KNUCKLE L | $210.87 | 25 |
 |
47550-PWB1-900 | KNUCKLE REAR ASSEMBLY LH | $301.50 | 223 |
 |
47550-PWB1-E00 | KNUCKLE REAR ASSEMBLY LH | $324.90 | 30 |
 |
50100-AAJ5-900 | BODY COMP FRAME | $1511.80 | 18 |
 |
50100-ABC8-M00 | BODY COMP FRAME | $457.68 | 19 |
 |
50100-ABC9-M00 | 0 | $495.14 | 24 |
 |

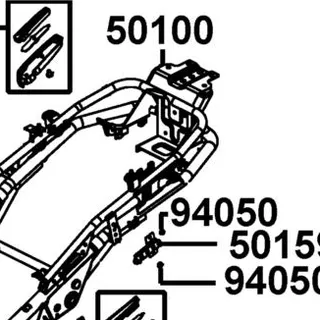

50100-ABD2-C00 | "BODY COMP.. FRAME" | $1656.68 | 13 |
 |
50100-ACA5-C00-N1S | "BODY COMP., FRAME" | $765.60 | 9 |
 |
50100-ACA5-C00-R6P | "BODY COMP., FRAME" | $765.60 | 1 |
 |
50100-ACA5-C00-R6S | "BODY COMP., FRAME" | $765.60 | 2 |
 |

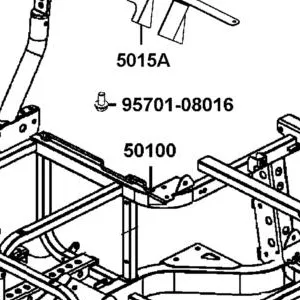

50100-ACB2-M00 | BODY COMP FRAME | $1488.08 | 40 |
 |
50100-ACB2-M01 | BODY COMP FRAME | $1488.08 | 1 |
 |

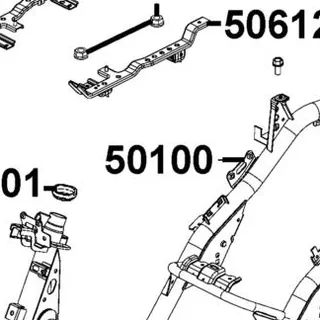

50100-ACB9-E10 | BODY COMP FRAME | $1124.46 | 9 |
 |
50100-ACD7-M00 | BODY COMP FRAME | $1443.28 | 6 |
 |
50100-ACK5-M30 | "BODY COMP., FRAME" | $978.92 | 5 |
 |
50100-ADA1-900 | BODY COMP FRAME | $1023.58 | 4 |
 |
50100-ADA9-M30 | BODY COMP FRAME | $422.38 | 24 |
 |
50100-ADB1-M30 | "BODY COMP.. FRAME" | $794.12 | 15 |
 |
50100-AEA7-E10 | BODY COMP FRAME | $850.82 | 28 |
 |
50100-AEB8-M00 | BODY CUMP FRAME | $1153.86 | 29 |
 |
50100-AEB9-M30 | BODY COMP FRAME | $659.50 | 8 |
 |
50100-AEE9-M00 | BODY COMP FRAME | $2879.40 | 39 |
 |

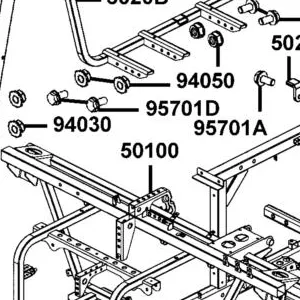

50100-AEE9-M03 | BODY COMP FRAME | $2879.40 | 5 |
 |
50100-AGA1-M00 | BODY COMP FRAME | $2302.02 | 8 |
 |
50100-AGA5-M00-M2S | BODY COMP FRAME | $2904.58 | 8 |
 |

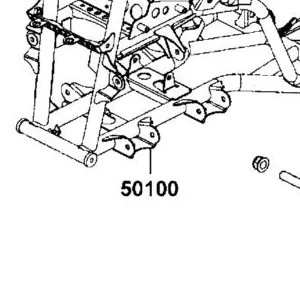

50100-AGA8-M00 | BODY COMP FRAME | $785.86 | 7 |
 |

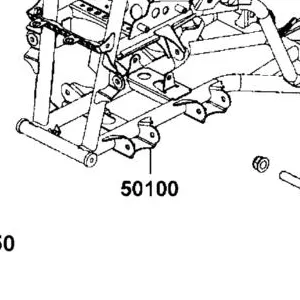

50100-AGA9-M00 | BODY COMP FRAME | $934.14 | 12 |
 |

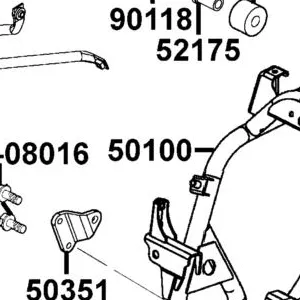

50100-AHA5-M00 | FRAME BODY COMP | $689.00 | 4 |
 |
50100-AHG3-E00 | BODY COMP FRAME | $659.50 | 2 |
 |

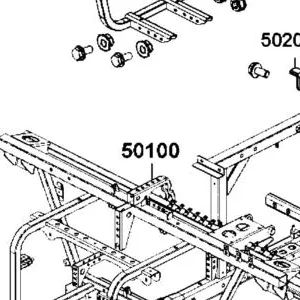

50100-AKB9-M00 | BODY COMP FRAME | $2558.76 | 4 |
 |

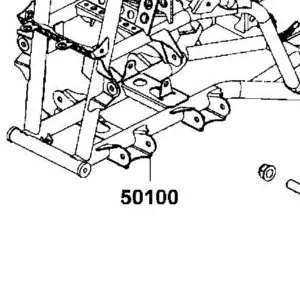

50100-AKG9-E00 | BODY COMP FRAME | $1099.60 | 11 |
 |

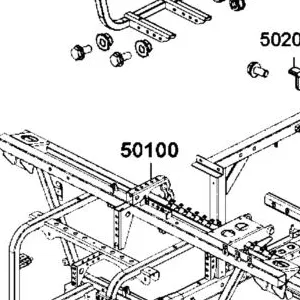

50100-AKJ3-M00 | BODY COMP FRAME | $2576.50 | 5 |
 |
50100-ALB1-M01 | BODY COMP FRAME | $2615.32 | 9 |
 |
50100-ALC1-900 | BODY COMP FRAME | $1153.86 | 39 |
 |
50100-ALG1-E10 | BODY COMP FRAME | $630.86 | 4 |
 |
50100-ALG2-E10 | BODY COMP FRAME | $527.46 | 4 |
 |
50100-ALH3-315 | BODY ASSY FRAME (M30) | $589.56 | 10 |
 |

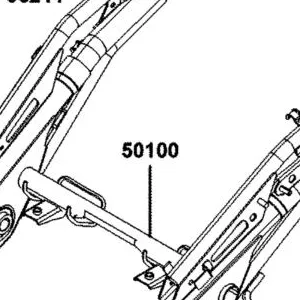

50100-BAA5-305 | BODY ASSY FRAME (E00) | $1300.52 | 3 |
 |

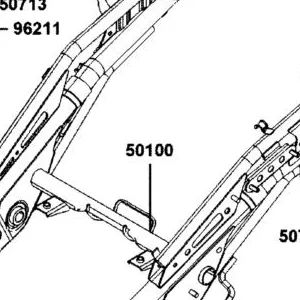

50100-BAA7-305 | BODY ASSY FRAME | $699.64 | 6 |
 |
50100-BAC1-M00 | BODY COMP FRAME | $659.50 | 10 |
 |
50100-BLA2-E70 | BODY COMP FRAME | $659.50 | 4 |
 |
50100-BLD3-M00-M2S | BODY COMP FRAME | $659.50 | 2 |
 |
50100-KEB7-M00 | BODY COMP FRAME | $478.54 | 10 |
 |
50100-KED9-325-BJS | BODY ASSY FRAME | $828.82 | 4 |
 |
50100-KED9-325-N1S | BODY ASSY FRAME | $828.82 | 2 |
Common questions
How do I know a frame & footrest part fits my KYMCO?
Every part lists the exact models it fits. Browse from your model's diagrams, use the VIN lookup, or pin your vehicle and the list badges what fits.
Are these genuine KYMCO frame & footrest parts?
Yes — all 1,421 parts here are factory KYMCO items with original part numbers, straight from the official catalogs.
