KYMCO bolts & hardware part numbers and diagrams
| Part number | Name | Price | Fits models | |
|---|---|---|---|---|
 |
90032-LKM5-E00 | BOLT B STUD | $53.16 | 160 |
 |
90032-PWB1-900 | BOLT UBS 10x180 | $48.54 | 33 |
 |
90033-0A41-021 | BOLT STUD 6*32 | $4.71 | 120 |
 |
90033-0A41-C00 | BOLT STUD6*32 | $9.18 | 39 |
 |
90033-0A41-C01 | BOLT STUD6*32 | $4.59 | 46 |
 |
90033-GFY6-900 | BOLT STUD 8*32 | $4.26 | 771 |
 |
90033-GFY6-C00 | BOLT 8*32 | $8.16 | 49 |
 |
90033-GFY6-C01 | BOLT STUD 8*32 | $8.46 | 15 |
 |
90033-GFY6-C10 | BOLT STUD 6*16 | $4.59 | 64 |
 |
90033-GFY6-C11 | BOLT STUD 6*16 | $4.59 | 60 |
 |
90033-KGB4-C00 | BOLT STUD M8X40 (C) | $14.31 | 339 |
 |
90033-KGB4-C11 | BOLT STUD 8*40 | $9.18 | 36 |
 |
90033-LDB5-E00 | BOLT STUD 10*40 | $22.92 | 25 |
 |
90033-LGC6-E00 | BOLT STUD 10X35 | $8.43 | 19 |
 |
90033-LLB1-900 | BOLT STUD 10*20 | $5.31 | 72 |
 |
90035-KNBN-901 | BOLT OIL DRAIN | $4.92 | 10 |
 |
90036-PWB1-900 | BOLT PLUG DRAIN SPECIAL 14X13.5 (C) | $29.01 | 172 |
 |
90071-MLB0-001 | NUT WASH 6MM | $4.92 | 881 |
 |
90081-KKAK-900 | BOLT HS 6*55 | $8.49 | 12 |
 |
90081-LCE5-B40 | 14M/M SEALING BOLT | $8.85 | 5 |
 |
90081-LCE5-B41 | 14M/M SEALING BOLT | $5.22 | 7 |
 |
90081-PWB1-900 | PLUG CASE 12X14 | $18.24 | 145 |
 |
90082-LCA7-C10 | BOLT M 6*28 (C) | $1.32 | 5 |
 |
90082-LCA7-C11 | BOLT M 6*28 (C) | $4.65 | 7 |
 |
90082-LCE5-B40 | BOLT M 6*23 | $1.32 | 5 |
 |
90082-LCE5-B41 | BOLT M 6*23 | $4.65 | 7 |
 |
90083-0E35-C00 | BOLT KNOCK M5*12, K, | $0.99 | 12 |
 |
90083-KED9-900 | BOLT KNOCK 6X12 (C) +NYLON | $4.53 | 299 |
 |
90084-4H28-001-NJA | CAP ACG (Silver) | $0.78 | 727 |
 |
90084-4H28-C00-NEA | CAP ACG | $18.93 | 4 |
 |
90084-KKAK-900 | CAP AC GENERATOR | $31.98 | 27 |
 |
90084-KKF9-901 | CAP ACG | $19.26 | 11 |
 |
90084-KKF9-901-NEA | CAP ACG | $18.57 | 65 |
 |
90084-LBA8-E80-NEA | CAP ACG | $13.77 | 12 |
 |
90084-LEA5-001-HJA | CAP A.C.G | $18.24 | 34 |
 |
90084-PWB1-900 | CAP ACG | $19.92 | 145 |
 |

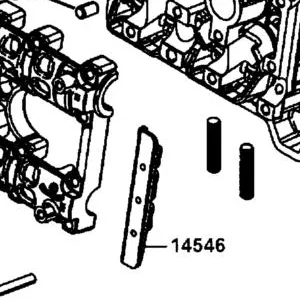

90085-KKE5-E00 | BOLT SEALING 18MM | $34.23 | 25 |
 |
90087-4H28-E80-NEA | CAP 30MM | $14.07 | 12 |
 |
9008A-KBE2-900-NEA | CAP ASSY 30MM | $32.46 | 40 |
 |
9008A-KBE2-900-NKA | CAP ASSY 30MM | $15.72 | 23 |
 |

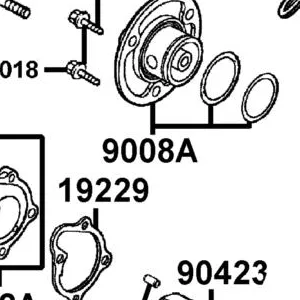

9008A-KHE7-C00-NEA | CAP ASSY R COVER | $52.89 | 12 |
 |

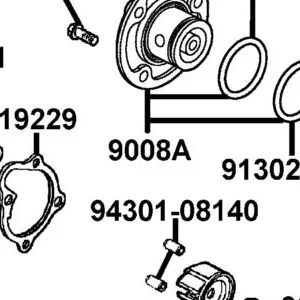

9008A-LBA7-900 | CAP ASSY R COVER | $60.54 | 194 |
 |
9008A-LBF3-800-NEA | CAP ASSY | $88.50 | 12 |
 |
9008A-LCA5-E00 | COVER ASSY HOLDER | $26.37 | 81 |
 |
9008A-LDB5-E00 | COVER HOLDER | $16.38 | 47 |
 |
9008A-LEA5-001-HJA | CAP ASSY 30MM | $35.52 | 18 |
 |

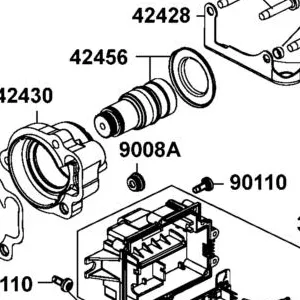

9008A-LKC3-500 | CAP ASSY E-LOCK | $25.35 | 384 |
 |
9008A-LKM5-E00 | CAP ASSY | $61.14 | 160 |
 |
9008A-LLB1-900 | CAP R COVER | $44.04 | 72 |
 |

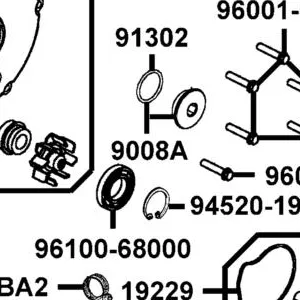

9008A-PTA1-900 | CAP ASSY | $41.73 | 102 |
Common questions
How do I know a bolts & hardware part fits my KYMCO?
Every part lists the exact models it fits. Browse from your model's diagrams, use the VIN lookup, or pin your vehicle and the list badges what fits.
Are these genuine KYMCO bolts & hardware parts?
Yes — all 2,538 parts here are factory KYMCO items with original part numbers, straight from the official catalogs.
