KYMCO bolts & hardware part numbers and diagrams
| Part number | Name | Price | Fits models | |
|---|---|---|---|---|
 |
90012-4E15-001 | SCREW TAPPING ADJUSTING | $17.82 | 72 |
 |
90012-LKF5-E00 | SCREW TAPPET ADJUSTING | $34.92 | 162 |
 |
90014-KED9-900 | BOLT UBS 10*35(G) | $14.46 | 27 |
 |
90015-KED9-900 | BOLT UBS 10X35(B) | $16.08 | 33 |
 |
90017-KED9-900 | BOLT ASSY HEAD COVER | $22.47 | 293 |
 |
90017-KKE5-E00 | BOLT ASSY HEAD COVER | $32.46 | 54 |
 |
90018-KKE5-E00 | BOLT ASSY HEAD COVER | $28.74 | 25 |
 |
90019-KKAK-900 | BOLT FLANGE 10*113 | $29.52 | 2 |
 |
90019-LBE8-900 | BOLT FLANGE 10X113 | $27.69 | 10 |
 |
90021-GFY6-900 | BOLT WASHER COMP | $17.82 | 73 |
 |
90021-GFY6-C11 | BOLT WASHER COMP | $5.31 | 16 |
 |
90023-GBN2-001 | BOLT SEAT LOCK 6X13.5 | $6.06 | 42 |
 |
90023-KGG7-001 | BOLT ROTOR SETTING | $15.84 | 12 |
 |
90023-KKE5-E00 | BOLT 12X45 (G) | $19.80 | 6 |
 |
90027-PUA5-E00 | JACK SCREW M6 VALVE COVER 6*17 | $7.56 | 19 |
 |
90031-KEBE-900 | BOLT A STUD 8*218 | $18.06 | 370 |
 |
90031-KGBG-900 | BOLT A STAU 6X168 | $18.87 | 5 |
 |
90031-KGBG-910 | BOLT A STUD 7*168 | $15.06 | 115 |
 |
90031-KGBG-C00 | BOLT A STUD 7*168 | $22.26 | 41 |
 |
90031-KGBG-C01 | BOLT A STUD 7*168 | $25.89 | 44 |
 |
90031-KHC4-900 | BOLT A STUD 8*182.5 | $19.80 | 100 |
 |
90031-KHD6-900 | BOLT A STUD 8X218 | $31.44 | 13 |
 |

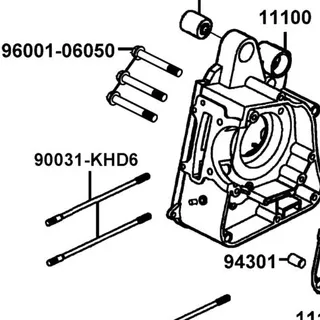

90031-KHD6-C00 | BOLT A STUD 8*218 | $33.90 | 3 |
 |

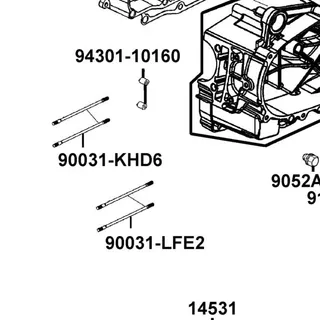

90031-KHD6-C01 | BOLT A STUD 8*218 | $19.89 | 48 |
 |

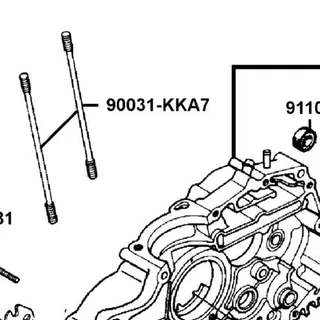

90031-KKA7-900 | BOLT A STUD 8MM 8*225 | $29.52 | 152 |
 |
90031-KUDU-900 | BOLT A STUD 8*200.5 | $29.40 | 41 |
 |
90031-KUDU-C01 | BOLT A STUD 8*200.5 | $13.14 | 64 |
 |
90031-LBA2-E00 | BOLT UBS 10*220 | $31.17 | 266 |
 |
90031-LCA7-C10 | BOLT A STUD M7*204*6 | $27.84 | 12 |
 |
90031-LEA3-900 | BOLT STUD 7*184 | $31.44 | 16 |
 |
90031-LEA6-900 | BOLT A STUD 8X222 | $29.52 | 28 |
 |
90031-LFE2-900 | BOLT B STUD 8*225 | $38.64 | 10 |
 |
90031-LFE2-C00 | BOLT A STUD 8*225 | $38.22 | 3 |
 |
90031-LFE2-C01 | BOLT A STUD 8*225 | $25.23 | 48 |
 |
90031-PWB1-900 | BOLT UBS 10x170 | $48.54 | 145 |
 |
90032-KEBE-900 | BOLT B STUD 8MM | $17.13 | 199 |
 |
90032-KGBG-900 | BOLT B STUD 6X176 | $17.64 | 5 |
 |
90032-KGBG-910 | BOLT B STUD 7*176 | $15.63 | 131 |
 |
90032-KGBG-C00 | BOLT B STUD 7x176 | $25.89 | 41 |
 |
90032-KGBG-C01 | BOLT B STUD 7x176 | $15.81 | 44 |
 |
90032-KHC4-900 | BOLT B STUD 8*190.5 | $19.80 | 100 |
 |
90032-KHD6-900 | BOLT B STUD 8*210 | Ask about this part → | 3 |
 |
90032-KUDU-900 | BOLT B STUD 8*208.5 | $30.39 | 25 |
 |
90032-KUDU-C00 | BOLT B STUD 8*208.5 | $23.67 | 49 |
 |
90032-KUDU-C01 | BOLT B STUD 8*208.5 | $37.71 | 15 |
 |
90032-LAB4-900 | BOLT B STUD 8X203.5 | $16.89 | 43 |
 |
90032-LBA2-E00 | BOLT UBS 10*210 | $36.54 | 266 |
 |
90032-LCA7-C10 | BOLT B STUD M7*215*M7, K, | $27.84 | 12 |
 |
90032-LEA1-900 | BOLT B STUD 8*206 | $39.72 | 16 |
 |
90032-LEA7-E00 | BOLT B STUD 10*180 | $51.81 | 50 |
Common questions
How do I know a bolts & hardware part fits my KYMCO?
Every part lists the exact models it fits. Browse from your model's diagrams, use the VIN lookup, or pin your vehicle and the list badges what fits.
Are these genuine KYMCO bolts & hardware parts?
Yes — all 2,538 parts here are factory KYMCO items with original part numbers, straight from the official catalogs.
