E04 — Left Side Cover●Water Pump

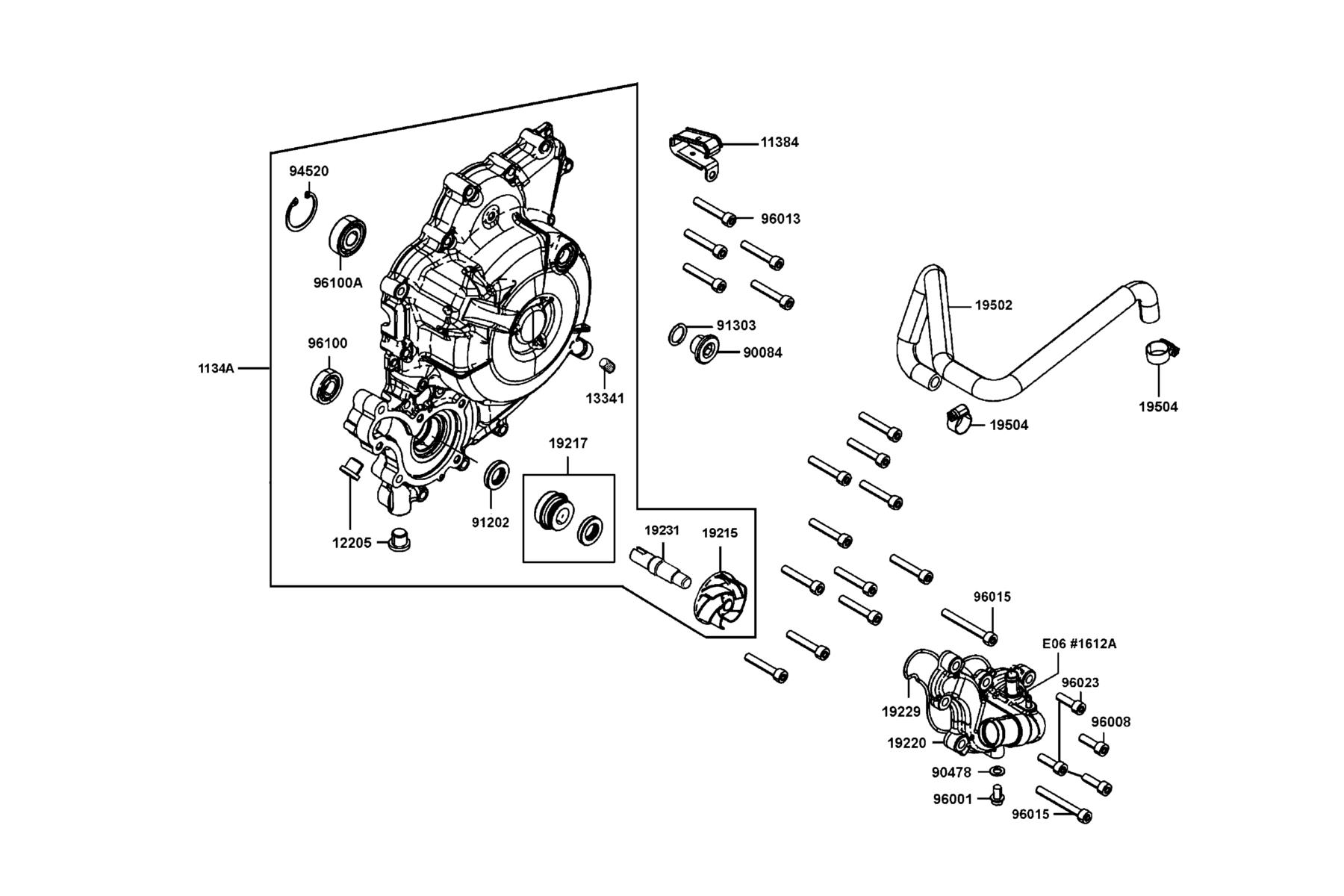

The Left Side Cover●Water Pump diagram contains 22 genuine OEM parts for the KYMCO AK550. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1134A-AKB8-305 | COVER SET L SIDE | 1 | — | Part details → | |
| 2 | 11384-LGC6-E00 | CLAMPER RR BRK HOSE | 1 | $11.19 USD | View product → | |
| 3 | 12205-KHE8-310 | BOLT SEALING 12MM (CG) | 2 | — | Part details → | |
| 4 | 13341-LGC6-E00 | GRUB SCREW M6 X 7 | 1 | $4.77 USD | View product → | |
| 5 | 19215-AKB8-EA5 | IMPELLER WATER PUMP | 1 | $19.05 USD | View product → | |
| 6 | 19217-AEE2-900 | MECHANICAL SEAL | 1 | $73.08 USD | View product → | |
| 7 | 19220-LGC6-E00 | COVER COMP WATER PUMP | 1 | $93.30 USD | View product → | |
| 8 | 19229-LGC6-E00 | O-RING W/P BODY | 1 | $10.38 USD | View product → | |
| 9 | 19231-AKB8-EA5 | SHAFT WATER PUMP | 1 | $59.40 USD | View product → | |
| 10 | 19502-LGC6-E00 | HOSE B WATER | 1 | $30.69 USD | View product → | |
| 11 | 19504-LBA2-E00 | CLAMP D16.8 | 4 | $13.95 USD | View product → | |
| 12 | 90478-7L00-001 | WASHER A 6MM | 1 | $4.92 USD | View product → | |
| 13 | 91202-LKG2-900 | OIL SEAL 13.7*24*5 | 1 | $38.94 USD | View product → | |
| 14 | 91303-3G77-001 | O-RING 13.8*2.5 | 1 | $4.92 USD | View product → | |
| 15 | 94520-32180 | CIR CLIP IN 32 | 1 | $5.31 USD | View product → | |
| 16 | 96001-06010-06 | BOLT FLANGE 6*10 | 1 | $1.95 USD | View product → | |
| 17 | 96008-PRA1-E00 | BOLT M6*25 | 1 | $3.66 USD | View product → | |
| 18 | 96013-LGC6-E00 | M6X35-8.8-ZNNIV SI | 16 | $5.61 USD | View product → | |
| 19 | 96015-PRA1-E00 | BOLT M6*50 | 2 | $4.77 USD | View product → | |
| 20 | 96023-PRB9-E00 | BOLT M6*20 | 4 | $2.82 USD | View product → | |
| 21 | 96100-60010-00 | BEARING RADIAL BALL 6001 | 1 | $48.24 USD | View product → | |
