F13 — Air Cleaner

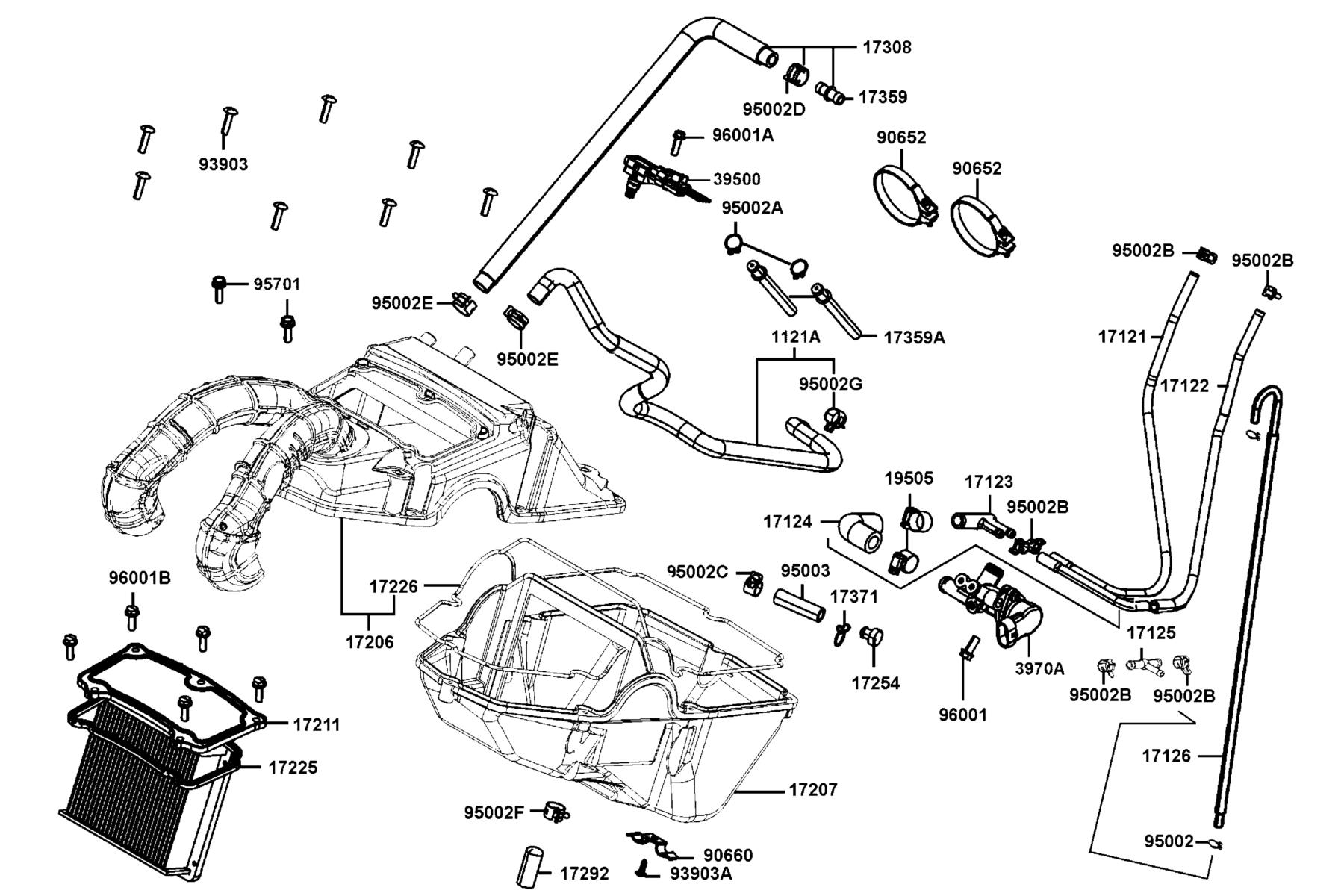

The Air Cleaner diagram contains 38 genuine OEM parts for the KYMCO AK550. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1121A-LGC6-E00 | TUBE ASSY BREATHER | 1 | $31.59 USD | View product → | |
| 2 | 17121-LGC6-E00 | TUBE A ISC AIR | 1 | $19.29 USD | View product → | |
| 3 | 17122-LGC6-E00 | TUBE B ISC AIR | 1 | $19.29 USD | View product → | |
| 4 | 17123-LGC6-E00 | JOINT 3 WAY | 1 | $10.44 USD | View product → | |
| 5 | 17124-LGC6-E00 | TUBE ISC TO 3 WAY | 1 | $15.09 USD | View product → | |
| 6 | 17125-LGC6-E00 | JOINT 3 WAY | 1 | $7.26 USD | View product → | |
| 7 | 17126-LGC6-E00 | TUBE C ISC AIR | 1 | $25.14 USD | View product → | |
| 8 | 17206-LGC6-305 | CASE. AIR/C | 1 | $176.40 USD | View product → | |
| 9 | 17207-LGC6-E00 | COVER. AIR/C | 1 | $66.33 USD | View product → | |
| 10 | 17211-LGC6-E00 | ELEMENT COMP AIR/C | 1 | $17.16 USD | View product → | |
| 11 | 17225-LGC6-E00 | SEAL. AIR/C COVER | 1 | $9.27 USD | View product → | |
| 12 | 17226-LGC6-E00 | SEAL. AIR/C CASE | 1 | $10.44 USD | View product → | |
| 13 | 17254-KACA-P00 | PLUG AIR/C CONN TUBE | 1 | $5.67 USD | View product → | |
| 14 | 17292-PWB1-900 | PIPE DRAIN | 1 | $7.17 USD | View product → | |
| 15 | 17308-LGC6-E00 | TUBE ASSY AIR/C | 1 | $30.69 USD | View product → | |
| 16 | 17359-4K19-671 | JOINT BREATHER TUBE | 1 | $4.92 USD | View product → | |
| 17 | 17359-LGC6-E00 | JOINT. PURGE TUBE | 2 | $5.19 USD | View product → | |
| 18 | 17371-1D74-671 | CLIP BREATHER TUBE | 1 | $4.92 USD | View product → | |
| 19 | 19505-LBC6-900 | C-HOP 8M 12-22 | 2 | $13.11 USD | View product → | |
| 20 | 39500-AAC9-900 | SENSOR T-MAP | 1 | $278.58 USD | View product → | |
| 21 | 3970A-LGC6-E00 | BY-PASS VALVE ASSY. | 1 | $175.56 USD | View product → | |
| 22 | 90652-KHE7-900 | BAND CONNECTING TUBE | 2 | $13.17 USD | View product → | |
| 23 | 90660-LGC6-E00 | CLAMP TUBE | 1 | $4.77 USD | View product → | |
| 24 | 93903-25460 | SCREW TAPPING 5*20 | 8 | $4.26 USD | View product → | |
| 25 | 93903-34360 | SCREW TAPPING 4X12 | 1 | $4.29 USD | View product → | |
| 26 | 95002-02080 | CLIP B8 TUBE | 2 | $1.86 USD | View product → | |
| 27 | 95002-02110 | CLIP | 2 | $4.92 USD | View product → | |
| 28 | 95002-40850-08G | CLAMP D8.5 TUBE | 6 | $4.26 USD | View product → | |
| 29 | 95002-41100-08 | CLIP D 11.0 TUBE | 1 | $2.82 USD | View product → | |
| 30 | 95002-41250-00 | CLIP D12.5 TUBE | 1 | $3.27 USD | View product → | |
| 31 | 95002-KED9-M30 | CLAMP D14.8 TUBE | 1 | $10.50 USD | View product → | |
| 32 | 95002-LHG8-E00 | CLAMP.D14 TUBE | 1 | $9.84 USD | View product → | |
| 33 | 95002-LKF5-E00 | CLAMP D14.6 TUBE | 1 | $22.23 USD | View product → | |
| 34 | 95003-23004-60 | V TUBE 8*12*40 | 1 | $5.22 USD | View product → | |
| 35 | 95701-06020-06 | BOLT FLANGE 6*20 | 2 | $2.25 USD | View product → | |
| 36 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 37 | 96001-06018-06 | BOLT FLANGE SH 6*18 | 1 | $12.12 USD | View product → | |
| 38 | 96001-LAB4-900 | BOLT SPECIAL M5X16 | 5 | $4.92 USD | View product → |
