F11 — Battery

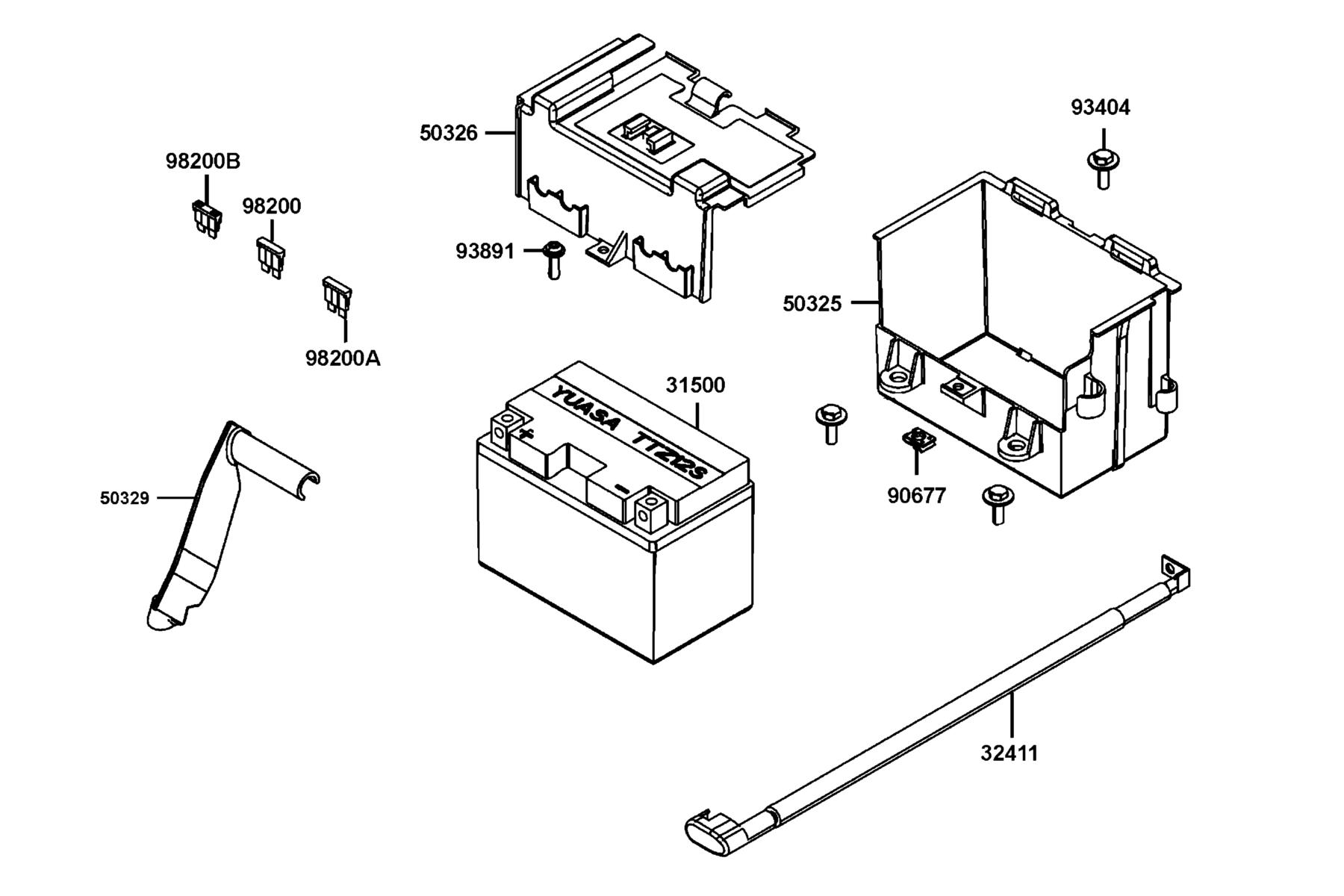

The Battery diagram contains 11 genuine OEM parts for the KYMCO AK550. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 31500-LGC6-E01 | BATTERY TTZ14S | 1 | $494.79 USD | View product → | |
| 2 | 32411-LGC6-E00 | CABLE. BAT. | 1 | $30.96 USD | View product → | |
| 3 | 50325-LGC6-E00-N1R | CASE BATTERY (Black) | 1 | $15.09 USD | View product → | |
| 4 | 50326-LGC6-E00-N1R | COVER BATTERY (Black) | 1 | $14.58 USD | View product → | |
| 5 | 50329-LGC6-E00-N1R | PROTECTOR (Black) | 1 | $3.54 USD | View product → | |
| 6 | 90677-GAR1-004 | NUT CLIP 5MM | 1 | $3.00 USD | View product → | |
| 7 | 93404-06016-06 | BOLT WASHER 6*16 | 3 | $7.89 USD | View product → | |
| 8 | 93891-05012-06 | SCREW WASHER 5*12 | 1 | $4.92 USD | View product → | |
| 9 | 98200-31000 | BLADE FUSE 10A | 1 | $4.92 USD | View product → | |
| 10 | 98200-31500 | BLADE FUSE 15A | 1 | $4.92 USD | View product → | |
| 11 | 98200-33000 | BLADE FUSE 30A | 1 | $4.92 USD | View product → |
