E03 — Cylinder ● Piston ● Crankshaft

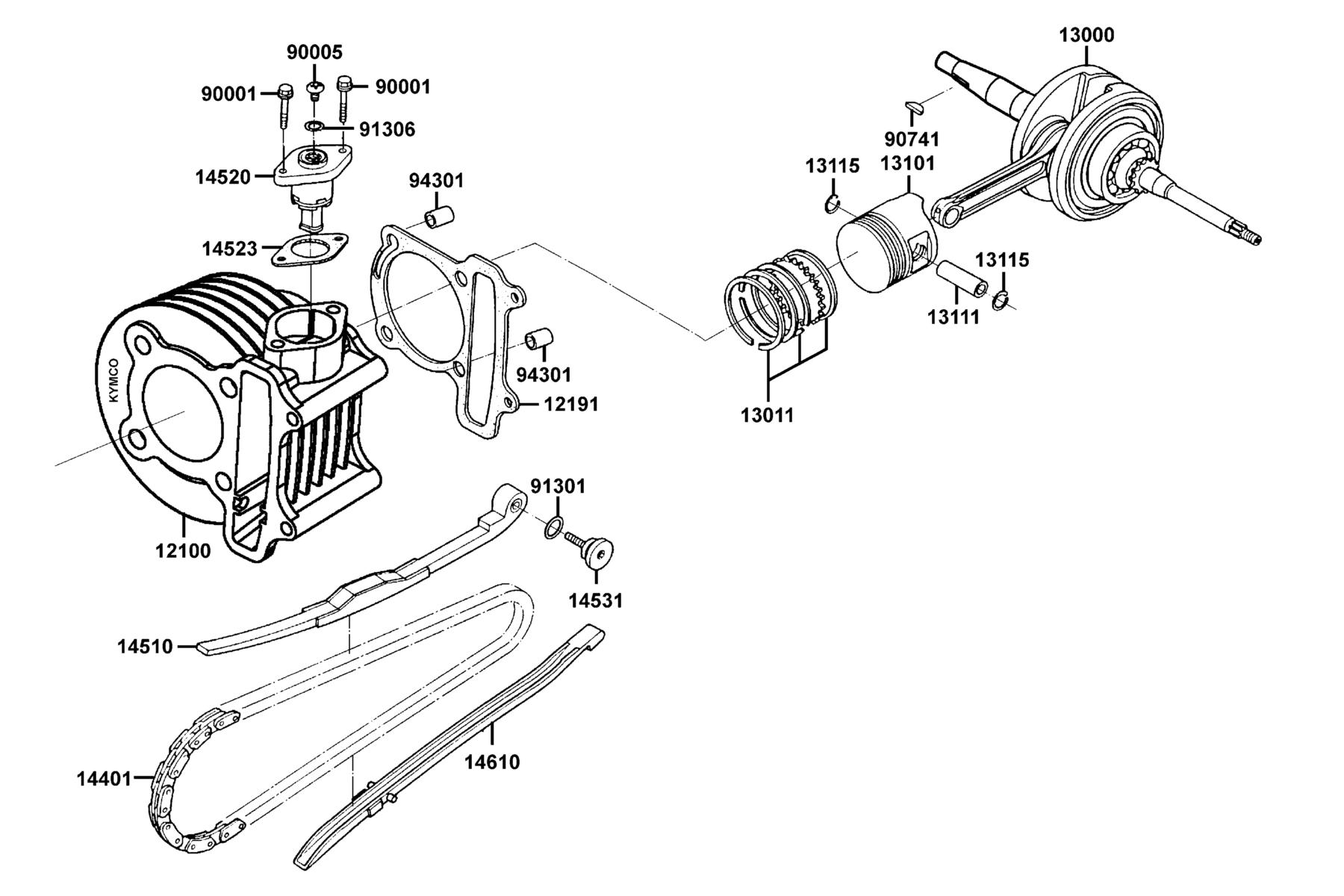

The Cylinder ● Piston ● Crankshaft diagram contains 19 genuine OEM parts for the KYMCO Mongoose 90S (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12100-LBD4-900 | CYLINDER COMP | 1 | $279.81 USD | View product → | |
| 2 | 12191-LBD4-900 | GASKET CYLINDER A | 1 | $13.89 USD | View product → | |
| 3 | 13000-PVA2-900 | CRANK SHAFT COMP | 1 | $432.39 USD | View product → | |
| 4 | 13011-KEE1-900 | RING ASSY PISTON | 1 | $94.65 USD | View product → | |
| 5 | 13101-LBD4-900 | PISTON | 1 | $82.68 USD | View product → | |
| 6 | 13111-KEE1-900 | PIN PISTON | 1 | $31.50 USD | View product → | |
| 7 | 13115-001-0010 | PISTON PIN CLIP | 2 | $3.93 USD | View product → | |
| 8 | 14401-KHC4-900 | CHAIN CAM | 1 | $131.10 USD | View product → | |
| 9 | 14510-KHC4-900 | TENSIONER CAM CHAIN | 1 | $84.84 USD | View product → | |
| 10 | 14520-GFY6-90C | LIFTER ASSY.. TENSIONER | 1 | $125.97 USD | View product → | |
| 11 | 14523-KED9-920 | GASKET TENSIONER LIFTER @A | 1 | $3.81 USD | View product → | |
| 12 | 14531-GLR0-001 | PIVOT CAM CHAIN TENSIONER | 1 | $9.39 USD | View product → | |
| 13 | 14610-KHC4-900 | GUIDE COMP CAM CHAIN | 1 | $46.20 USD | View product → | |
| 14 | 90001-GBHB-661 | BOLT FLANGE SH 6*22 | 2 | $4.92 USD | View product → | |
| 15 | 90005-KAW1-901 | BOLT SPECIAL 6*6 | 1 | $4.92 USD | View product → | |
| 16 | 90741-0E35-001 | KEY WOODRUFF | 1 | $10.14 USD | View product → | |
| 17 | 91301-GLR0-005 | O-RING 15.2X1.5 | 1 | $3.00 USD | View product → | |
| 18 | 91306-1E05-691 | O-RING 1.5*9.5 | 1 | $4.92 USD | View product → | |
| 19 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → |
