F14 — Exhaust Muffler

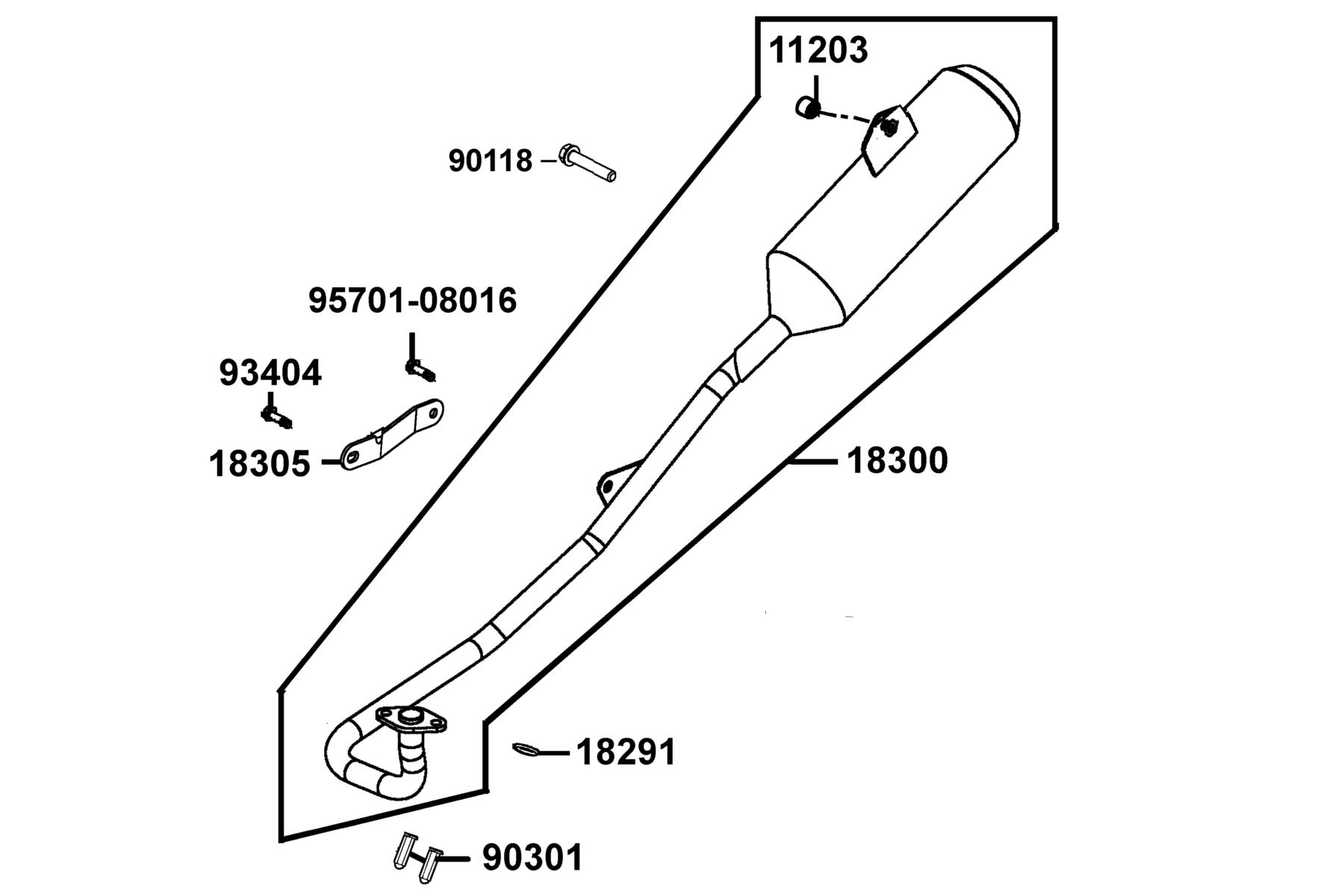

The Exhaust Muffler diagram contains 8 genuine OEM parts for the KYMCO Mongoose 90S (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11203-GFY6-901 | RUBBER BUSH MUFFLER STAY | 1 | $15.12 USD | View product → | |
| 2 | 18291-LBD4-900 | GASKET EXH PIPE | 1 | $16.11 USD | View product → | |
| 3 | 18300-PVA2-800 | MUFFLER COMP EXHAUST | 1 | $445.28 USD | View product → | |
| 4 | 18305-PWA4-900 | STAY MUFFLER | 1 | $17.82 USD | View product → | |
| 5 | 90118-PVA2-900 | BOLT FLANGE 8*38 | 1 | $7.89 USD | View product → | |
| 6 | 90301-GFY6-901 | NUT (HEX) CAP 8MM(C) | 2 | $19.26 USD | View product → | |
| 7 | 93404-LBD4-900 | BOLT WASH 8*28 | 1 | $4.92 USD | View product → | |
| 8 | 95701-08016-06 | BOLT FLANGE 8*16 | 1 | $4.53 USD | View product → |
