E06 — Starting Motor●Oil Pump

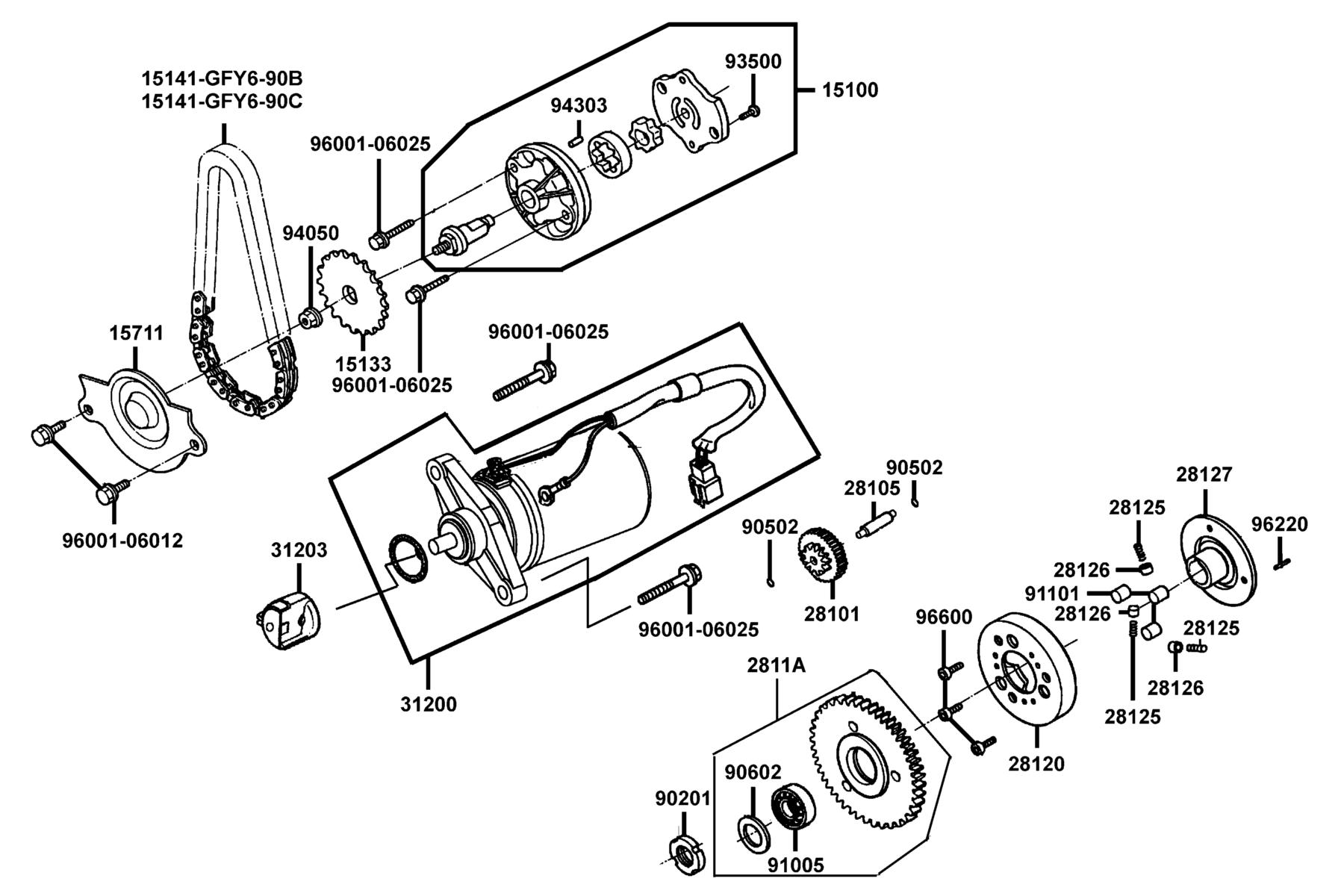

The Starting Motor●Oil Pump diagram contains 25 genuine OEM parts for the KYMCO Mongoose 90S (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 15100-GFY6-C00 | PUMP ASSY OIL | 1 | $123.48 USD | View product → | |
| 2 | 15133-GFY6-901 | SPROCKET OIL PUMP DRIVE | 1 | $23.40 USD | View product → | |
| 3 | 15141-GFY6-90B | CHAIN OIL PUMP | 1 | $106.86 USD | View product → | |
| 4 | 15711-GFY6-901 | SEPARATER OIL | 1 | $17.82 USD | View product → | |
| 5 | 28101-KNBN-910 | GEAR COMP STARTER REDUCTION | 1 | $97.11 USD | View product → | |
| 6 | 28105-KNBN-901 | SHAFT START REDUCTION | 1 | $37.41 USD | View product → | |
| 7 | 2811A-KNBN-940 | GEAR ASSY STARTER | 1 | $111.06 USD | View product → | |
| 8 | 28120-KNBN-901 | OUTER COMP ST CLUCH | 1 | $167.55 USD | View product → | |
| 9 | 28125-3C23-001 | SPRING ROLLER ST CLUTCH | 3 | $4.92 USD | View product → | |
| 10 | 28126-KNBN-901 | CAP SPGING ROLLER SP | 3 | $5.34 USD | View product → | |
| 11 | 28127-KNBN-901 | BOSS STARTER CLUTCH | 1 | $101.22 USD | View product → | |
| 12 | 31200-PTA7-900 | MOTOR ASSY START | 1 | $241.32 USD | View product → | |
| 13 | 31203-KHC4-900 | HOLDER COMP STARTER REDUCTION | 1 | $46.65 USD | View product → | |
| 14 | 90201-KNBN-901 | NUT SPECIAL 24MM | 1 | $13.56 USD | View product → | |
| 15 | 90502-MBS2-001 | WASHER 24*8.5 | 2 | $4.92 USD | View product → | |
| 16 | 90602-PDX4-001 | CIR CLIP B IN 47 | 1 | $17.82 USD | View product → | |
| 17 | 91005-KNBN-901 | BRG RADIAL 6005-2NKG | 1 | $73.62 USD | View product → | |
| 18 | 91101-KNBN-901 | ROLLER 10.2*11.5 | 3 | $6.06 USD | View product → | |
| 19 | 93500-03010-0F | SCREW PAN 3X10 | 1 | $0.99 USD | View product → | |
| 20 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → | |
| 21 | 94303-04065 | DOWEL PIN 4X6.5 | 1 | $5.43 USD | View product → | |
| 22 | 96001-06012-06 | BOLT FLANGE SH 6*12 | 1 | $1.95 USD | View product → | |
| 23 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → | |
| 24 | 96220-60100 | ROLLER 6X10 | 1 | $4.92 USD | View product → | |
| 25 | 96600-LGL3-900 | SOCKET BOLT 6X12 | 1 | $5.58 USD | View product → |
