F17 — Rear Light

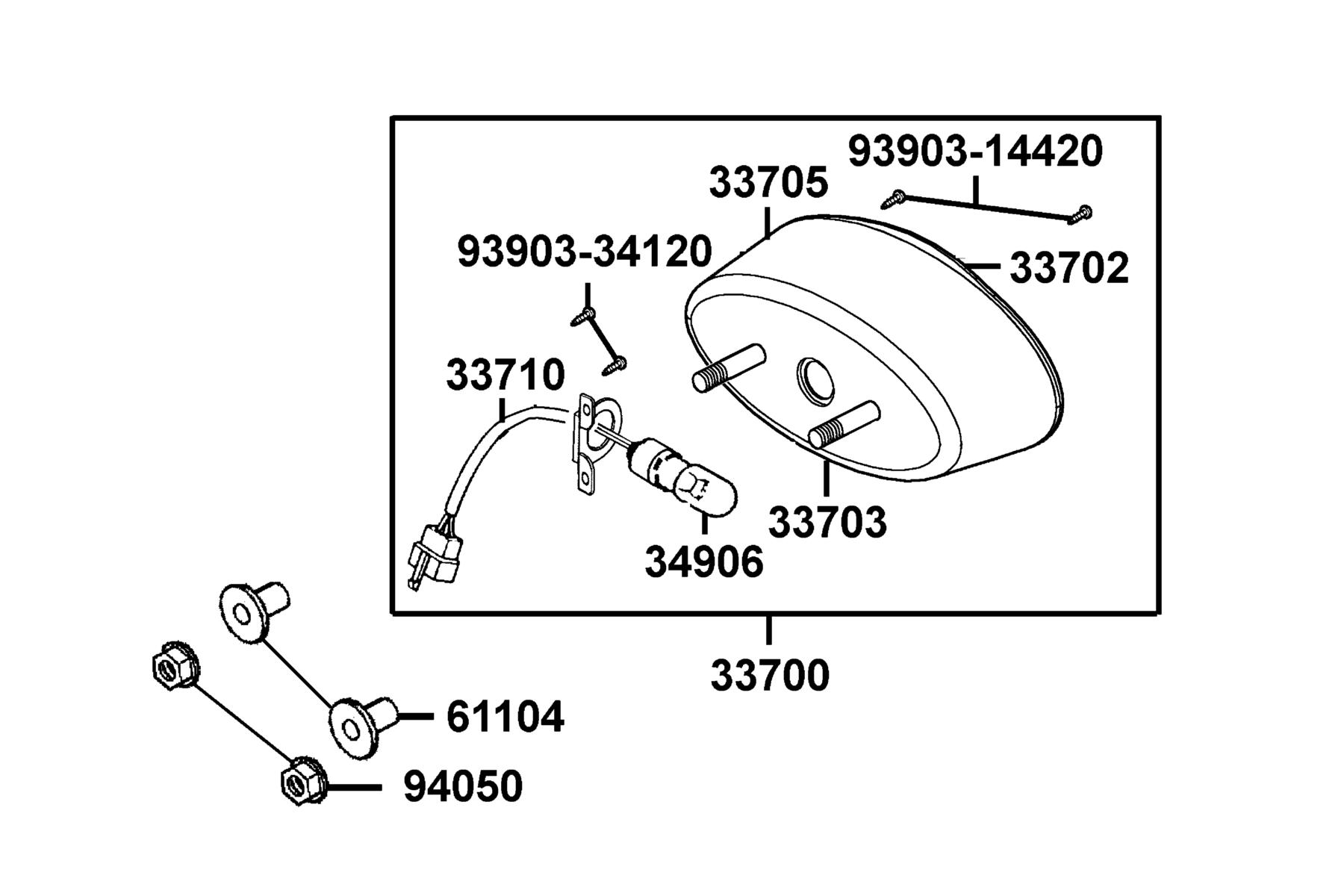

The Rear Light diagram contains 11 genuine OEM parts for the KYMCO Mongoose 90S (2016~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33700-LLB1-900 | LIGHT ASSY TAIL | 1 | $119.19 USD | View product → | |
| 2 | 33702-LLB1-900 | LENS TAIL LIGHT | 1 | $45.75 USD | View product → | |
| 3 | 33703-LLB1-MX0 | LENS LICENSE | 1 | $15.42 USD | View product → | |
| 4 | 33705-LLB1-900 | BASE TAIL LIGHT | 1 | $37.77 USD | View product → | |
| 5 | 33710-LLB1-MX0 | SOCKET COMP TAIL LIGHT | 1 | — | Part details → | |
| 6 | 34906-KPCP-900 | BULB TAIL & STOP | 1 | $8.76 USD | View product → | |
| 7 | 34906-KPCP-900-invalid | BULB TAIL & STOP | 1 | $11.40 USD | View product → | |
| 8 | 61104-357-0010 | COLLAR FR FENDER | 2 | $11.19 USD | View product → | |
| 9 | 93903-14420 | SCREW TAPPING 4*16 | 2 | $4.92 USD | View product → | |
| 10 | 93903-34160 | SCREW TAPPING 4X8 | 1 | $0.99 USD | View product → | |
| 11 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → |
