E08 — Universal Joint Assy Eng

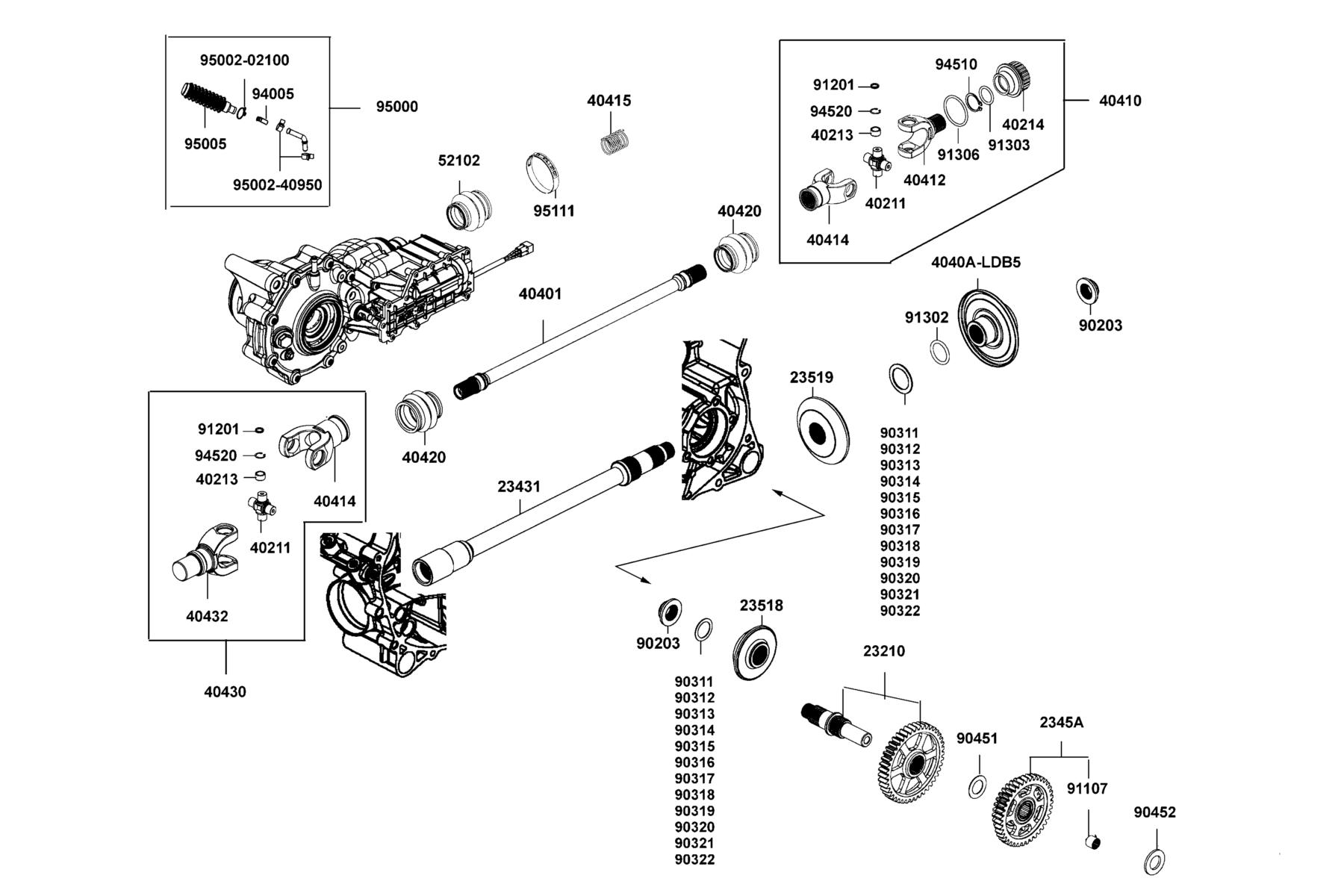

The Universal Joint Assy Eng diagram contains 43 genuine OEM parts for the KYMCO UXV 700i LE (2024MY). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 23210-LEE8-E00 | SHAFT COMP MAIN | 1 | $172.62 USD | View product → | |
| 2 | 23431-LDB5-E00 | SHAFT FINAL | 1 | $174.09 USD | View product → | |
| 3 | 2345A-LDB5-E00 | GEAR COMP BACKWARD | 1 | $221.37 USD | View product → | |
| 4 | 23518-LKM5-E00 | BEVEL GEAR DRIVE | 1 | $252.72 USD | View product → | |
| 5 | 23519-LKM5-E00 | BEVEL GEAR DRIVEN | 1 | $305.10 USD | View product → | |
| 6 | 40211-LCD9-E00 | SPIDER YORK | 2 | $40.53 USD | View product → | |
| 7 | 40213-LCD9-E00 | BRG YORK 12*18*16 | 8 | $38.07 USD | View product → | |
| 8 | 40214-LEE8-E00 | COUPLER UNIVERSAL JOINT | 1 | $123.27 USD | View product → | |
| 9 | 40401-LEE8-E00 | SHAFT FRONT PROPELLER | 1 | $156.57 USD | View product → | |
| 10 | 4040A-LDB5-E00 | COUPLING RR PROPELLER | 1 | $93.60 USD | View product → | |
| 11 | 40410-LEE8-E00 | UNIVERSAL JOINT ASSY ENG | 1 | $210.54 USD | View product → | |
| 12 | 40412-LEE8-E00 | YORK A FR U JOINT | 1 | $135.84 USD | View product → | |
| 13 | 40414-LDB5-E00 | YORK B FR U JOINT | 2 | $124.71 USD | View product → | |
| 14 | 40415-LDB5-E00 | SPRING FR PROPELLER SHAFT | 2 | $4.53 USD | View product → | |
| 15 | 40420-LDB5-E00 | BOOT FRONT PROPELLER | 2 | $31.17 USD | View product → | |
| 16 | 40430-LEE8-E00 | UNIVERSAL JOINT ASSY DIFF | 1 | $172.98 USD | View product → | |
| 17 | 40432-LEE8-E00 | YORK A DIFF U JOINT | 1 | $137.40 USD | View product → | |
| 18 | 52102-LEE8-E00 | BOOT COUPLER | 1 | $25.65 USD | View product → | |
| 19 | 90203-LDB5-E00 | NUT FLANGE 20MM | 2 | $47.70 USD | View product → | |
| 20 | 90313-LDB5-E00 | SHIM DRIVE BEVEL GEAR C (0.675~0.725) | 2 | $11.31 USD | View product → | |
| 21 | 90315-LDB5-E00 | SHIM DRIVE BEVEL GEAR E (0.775~0.825) | 2 | $1.08 USD | View product → | |
| 22 | 90316-LDB5-E00 | SHIM DRIVE BEVEL GEAR F (0.825~0.875) | 2 | $11.31 USD | View product → | |
| 23 | 90317-LDB5-E00 | SHIM DRIVE BEVEL GEAR G (0.875~0.925) | 2 | $11.31 USD | View product → | |
| 24 | 90318-LDB5-E00 | SHIM DRIVE BEVEL GEAR H (0.925~0.975) | 2 | $11.31 USD | View product → | |
| 25 | 90319-LDB5-E00 | SHIM DRIVE BEVEL GEAR I (0.975~1.025) | 2 | $11.31 USD | View product → | |
| 26 | 90320-LDB5-E00 | SHIM DRIVE BEVEL GEAR J (1.025~1.075) | 2 | $11.31 USD | View product → | |
| 27 | 90321-LDB5-E00 | SHIM DRIVE BEVEL GEAR K (1.075~1.125) | 2 | $11.31 USD | View product → | |
| 28 | 90322-LDB5-E00 | SHIM DRIVE BEVEL GEAR L (1.125~1.175) | 2 | $11.31 USD | View product → | |
| 29 | 90451-LBA7-900 | WASHER THRUST 20MM | 1 | $5.58 USD | View product → | |
| 30 | 90452-LDB5-E00 | WASHER THRUST 20*36*3 | 1 | $7.53 USD | View product → | |
| 31 | 91107-LDB5-E00 | BRG NEEDLE 20*28*23 | 1 | $170.70 USD | View product → | |
| 32 | 91201-LCD9-E00 | OIL SEAL 13*17.5*4.5 | 8 | $6.39 USD | View product → | |
| 33 | 91302-LDB5-E00 | O-RING 22MM | 1 | $4.53 USD | View product → | |
| 34 | 91303-LDB5-E00 | O-RING 22MM | 1 | $4.92 USD | View product → | |
| 35 | 91306-LDB5-E00 | O-RING 41MM | 1 | $4.53 USD | View product → | |
| 36 | 94005-PWB1-900 | HOSE BARB INTAKE MANIFOLD | 1 | $4.17 USD | View product → | |
| 37 | 94510-25000 | CIR CLIP EX 25 | 1 | $3.78 USD | View product → | |
| 38 | 94520-19000 | CIR CLIP IN 19 | 8 | $10.14 USD | View product → | |
| 39 | 95000-LEE8-E00 | HOSE VENT-GEARCASE(55.5mm) | 1 | $66.96 USD | View product → | |
| 40 | 95002-02100 | CLIP B15 TUBE | 1 | $4.92 USD | View product → | |
| 41 | 95002-40950-08 | CLAMP D9.5 TUBE | 2 | $6.06 USD | View product → | |
| 42 | 95005-PWB1-900 | BREATH TUBE RR GEAR ASSY | 1 | $32.10 USD | View product → | |
| 43 | 95111-PWB1-900 | CLAMP BOOT | 1 | $18.24 USD | View product → |
